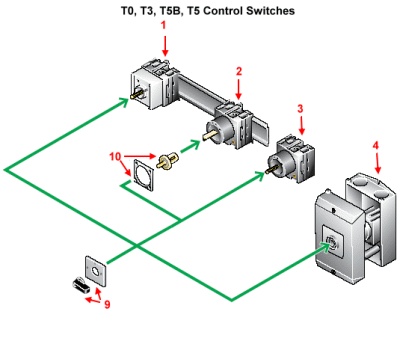

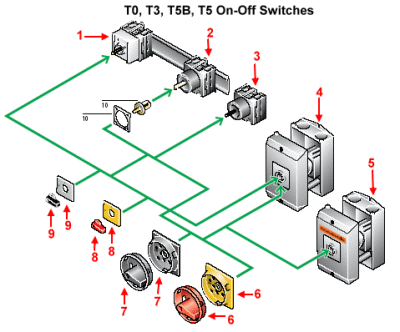

Service distribution board mounting (.../IVS) 1 Front IP30 For snap fitting to EN 50022 top-hat rail Flush mounting – Service distribution boards: up to 3 contact units (45 mm mounting depth) – Control panels: up to 11 contact units |
Rear mounting (.../Z) 2 Front IP65 Secured by screw fixing or snap fitting (T0 or T3) For snap fitting to EN 50022 top-hat rail Coupling drive in door or cover Connection from the front Rear mounting main switches (.../V/SVB) 2 Front IP65 According to IEC/EN 60204 and IEC/EN 60947-3, for T0... up to 8 and for T3... up to 12 current paths With door interlock in the On position |
|
Flush mounting (.../E) 3 Front IP65 Fitting and connection from the rear Terminal: Pozidriv plus-minus screw Finger- and back-of-hand proof Type T8 with extension terminals as standard Flush mounting main switches (.../EA/SVB) 3 Front IP65 According to IEC/EN 60204 and IEC/EN 60947-3, for T0... up to 8 and for T3... up to 12 current paths N terminal and PE terminal Centre mounting (.../EZ) 3 Front IP65 Mounting in 22.3 fixing hole according to IEC/EN 60947-5-1 One-man installation through centre fixing |
Surface mounting (.../I...) 4 IP65 With an additional terminal Enclosures for metric cable glands according to EN 50262 Surface mounting main switches (.../I...) 4 IP65 According to IEC/EN 60204 and IEC/EN 60947-3, for T0... up to 8 and for T3... up to 10 current paths Lockable in 0 position with 3 padlocks Enclosures for metric cable glands according to EN 50262 With an additional terminal |
|
Safety switch (.../I...) 5 IP65 With an additional terminal With cover fuse in the 0 position Lockable in 0 position with 3 padlocks Enclosures for metric cable glands according to EN 50262 With Safety Switch label Colour: orange in Switzerland: according to SUVA Directive |
Main switch (assembly kit) for use as Emergency-Stop device 6 According to IEC/EN 60204-1 With red rotary handle and yellow locking collar Lockable in 0 position |
|
Main switch (assembly kit) 7 Black rotary handle and locking collar Lockable in the 0 (Off) position |
Thumb-grip for use as Emergency-Stop device 8 According to IEC/EN 60204-1 Red thumb-grip with yellow front plate |
|
Thumb-grip 9 Black thumb-grip with front plate |
Coupling drive 10 Includes push-fit shaft For retrofitting T0(T3)-.../XZ basic switches for rear mounting Spare parts for T0(T3)/(P1)-.../Z For retrofit conversion of T5(B)-.../E flush mounting switches for rear mounting Spare part for T5(B)-.../Z |
