Eaton Klockner Moeller MANUAL MOTOR PROTECTORS

Moeller PKZM0 / Eaton XTPR

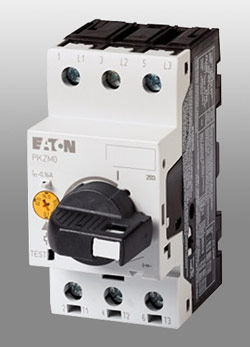

Lockable Knob

Moeller PKZM0 / Eaton XTPR Lockable Knob
Adjustable Thermal Range UL/CSA 3-Phase HP Ratings MOELLER EATON
200V HP 230V HP 460V HP 575V HP

0.1 - 0.16

In this range, select motor protector in accordance with the motor nameplate f load current PKZM0-0.16/AK XTPRP16BC1

0.16 - 0.25

PKZM0-0.25/AK XTPRP25BC1

0.25 - 0.4

PKZM0-0.4/AK XTPR0P4BC1

0.4 - 0.63

PKZM0-0.63/AK XTPRP63BC1

0.63 - 1

.5 .5 PKZM0-1/AK XTPR001BC1

1 - 1.6

.75 1 PKZM0-1.6/AK XTPR1P6BC1

1.6 - 2.5

.5 .5 1 1.5 PKZM0-2.5/AK XTPR2P5BC1

2.5 - 4

1 1 2 3 PKZM0-4/AK XTPR004BC1

4 - 6.3

1.5 1.5 3 5 PKZM0-6.3/AK XTPR6P3BC1

6.3 - 10

3 3 7.5 10 PKZM0-10/AK XTPR010BC1

8 - 12

PKZM0-12/AK XTPR012BC1

10- 16

3 5 10 10 PKZM0-16/AK XTPR016BC1

16- 20

5 5 10 15 PKZM0-20/AK XTPR020BC1

20- 25

5 7 .5 15 20 PKZM0-25/AK XTPR025BC1

25- 32

PKZM0-32/AK XTPR032BC1

World Market Device -- IEC, UL/CSA

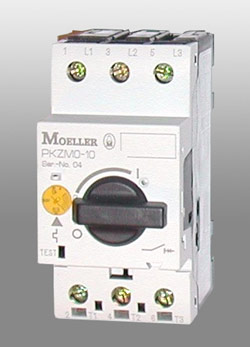

Moeller PKZM0 / Eaton XTPR

Moeller PKZM0 / Eaton XTPR
Adjustable Thermal Range UL/CSA 3-Phase HP Ratings MOELLER EATON
200V HP 230V HP 460V HP 575V HP

0.1 - 0.16

In this range, select motor protector in accordance with the motor nameplate f load current PKZM0-0.16 XTPRP16BC1

0.16 - 0.25

PKZM0-0.25 XTPRP25BC1

0.25 - 0.4

PKZM0-0.4 XTPRP4BC1

0.4 - 0.63

PKZM0-0.63 XTPRP63BC1

0.63 - 1

.5 .5 PKZM0-1 XTPR001BC1

1 - 1.6

.75 1 PKZM0-1.6 XTPR1P6BC1

1.6 - 2.5

.5 .5 1 1.5 PKZM0-2.5 XTPR2P5BC1

2.5 - 4

1 1 2 3 PKZM0-4 XTPR004BC1

4 - 6.3

1.5 1.5 3 5 PKZM0-6.3 XTPR6P3BC1

6.3 - 10

3 3 7.5 10 PKZM0-10 XTPR010BC1

8 - 12

PKZM0-12 XTPR012BC1

10- 16

3 5 10 10 PKZM0-16 XTPR016BC1

16- 20

5 5 10 15 PKZM0-20 XTPR020BC1

20- 25

5 7 .5 15 20 PKZM0-25 XTPR025BC1

25- 32

PKZM0-32 XTPR032BC1

World Market Device -- IEC, UL/CSA

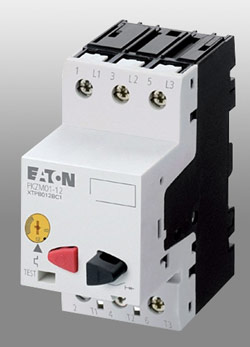

Moeller PKZM01 / Eaton XTPB

Moeller PKZM01 / Eaton XTPB
Adjustable Thermal Range UL/CSA 3-Phase HP Ratings MOELLER EATON
200V HP 230V HP 460V HP 575V HP

0.1 - 0.16

In this range, select motor protector in accordance with the motor nameplate f load current PKZM01-0.16 XTPBP16BC1

0.16 - 0.25

PKZM01-0.25 XTPBP25BC1

0.25 - 0.4

PKZM01-0.4 XTPBP40BC1

0.4 - 0.63

PKZM01-0.63 XTPBP63BC1

0.63 - 1

.5 .5 PKZM01-1 XTPB001BC1

1 - 1.6

.75 1 PKZM01-1.6 XTPB1P6BC1

1.6 - 2.5

.5 .5 1 1.5 PKZM01-2.5 XTPB2P5BC1

2.5 - 4

1 1 2 3 PKZM01-4 XTPB004BC1

4 - 6.3

1.5 1.5 3 5 PKZM01-6.3 XTPB6P3BC1

6.3 - 10

3 3 7.5 10 PKZM01-10 XTPB010BC1

8 - 12

PKZM01-12 XTPB012BC1

10- 16

3 5 10 10 PKZM01-16 XTPB016BC1

16- 20

5 5 10 15 PKZM01-20 XTPB020BC1

20- 25

5 7 .5 15 20 PKZM01-25 XTPB025BC1

World Market Device -- IEC, UL/CSA

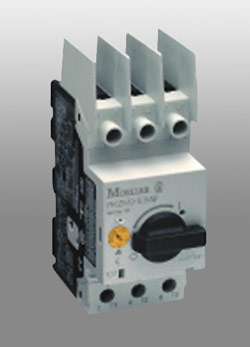

Moeller PKZM0 / Eaton XTPR
Self Protected Combination Motor Controllers

Moeller PKZM0 / Eaton XTPR Self Protected Combination Motor Controllers
Adjustable Thermal Range UL/CSA 3-Phase HP Ratings MOELLER EATON ADD
⇒ 		EATON
200V HP 230V HP 460V HP 575V HP

0.1 - 0.16

In this range, select motor protector in accordance with the motor nameplate f load current PKZM0-0.16/SP XTPRP16BC1 + XTPAXLSA

0.16 - 0.25

PKZM0-0.25/SP XTPRP25BC1

0.25 - 0.4

PKZM0-0.4/SP XTPR0P4BC1

0.4 - 0.63

PKZM0-0.63/SP XTPRP63BC1

0.63 - 1

.5 .5 PKZM0-1/SP XTPR001BC1

1 - 1.6

.75 1 PKZM0-1.6/SP XTPRP6BC1

1.6 - 2.5

.5 .5 1 1.5 PKZM0-2.5/SP XTPR2P5BC1

2.5 - 4

1 1 2 3 PKZM0-4/SP XTPR004BC1

4 - 6.3

1.5 1.5 3 5 PKZM0-6.3/SP XTPR6P3BC1

6.3 - 10

3 3 7.5 10 PKZM0-10/SP XTPR010BC1

10- 16

3 5 10 10 PKZM0-16/SP XTPR016BC1

World Market Device -- IEC, UL/CSA


Moeller PKZM0-xx-T / Eaton XTPT

Moeller PKZM0-xx-T / Eaton XTPT
Adjustable Thermal Range UL/CSA 3-Phase HP Ratings MOELLER EATON
200V HP 230V HP 460V HP 575V HP

0.1 - 0.16

In this range, select motor protector in accordance with the motor nameplate f load current PKZM0-0.16-T XTPTP16BC1

0.16 - 0.25

PKZM0-0.25-T XTPTP25BC1

0.25 - 0.4

PKZM0-0.4-T XTPT0P4BC1

0.4 - 0.63

PKZM0-0.63-T XTPTP63BC1

0.63 - 1

.5 .5 PKZM0-1-T XTPT001BC1

1 - 1.6

.75 1 PKZM0-1.6-T XTPT1P6BC1

1.6 - 2.5

.5 .5 1 1.5 PKZM0-2.5-T XTPT2P5BC1

2.5 - 4

1 1 2 3 PKZM0-4-T XTPT004BC1

4 - 6.3

1.5 1.5 3 5 PKZM0-6.3-T XTPT6P3BC1

6.3 - 10

3 3 7.5 10 PKZM0-10-T XTPT010BC1

8 - 12

PKZM0-12-T XTPT012BC1

10- 16

3 5 10 10 PKZM0-16-T XTPT016BC1

16- 20

5 5 10 15 PKZM0-20-T XTPT020BC1

20- 25

5 7 .5 15 20 PKZM0-25-T XTPT025BC1

25- 32

PKZM0-32-T XTPT032BC1

World Market Device -- IEC, UL/CSA

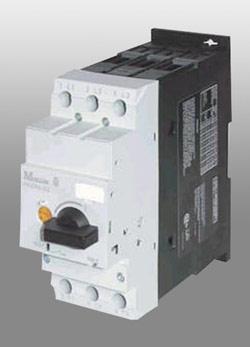

Moeller PKZM4 / Eaton XTPR
"D" Frame

Moeller PKZM4 / Eaton XTPR 'D' Frame
Short-circuit Release Adjustable Thermal Range (A) MOELLER EATON

224

10 - 16 PKZM4-16 XTPR016DC1

359

16 - 25 PKZM4-25 XTPR025DC1

448

25 - 32 PKZM4-32 XTPR032DC1

560

32 - 40 PKZM4-40 XTPR040DC1

700

40 - 50 PKZM4-50 XTPR050DC1

812

50 - 58 PKZM4-58 XTPR058DC1

882

55 - 63 PKZM4-63 XTPR063DC1

World Market Device -- IEC, UL/CSA


Moeller PKE / Eaton XTPE Electronic Manual Motor Protector (PKZ2 Replacement)

Click Above Tab to Open Content - Click ↑ to Close

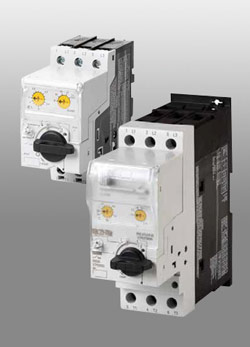

XT-IEC-Power Control

The XT Electronic Manual Motor Protector provides the same functionality as the XT thermal manual motor protector, but with an added level of flexibility and selectability. The XTPE incorporates electronic control technology to enable more options and larger dial setting ranges. The trip units are interchangeable, allowing users to exchange as needed using the same base. The reduced number of part numbers decreases bill of material complexity while reducing inventory demands. The XTPE electronic manual motor protector includes the following features:

  • 4:1 max to min overcurrent dial setting range
  • Selectable trip class (5, 10, 15, 20)
  • Interchangeable trip units
  • Three base units (12, 32 and 65A)
  • Common accessories with the XTPR
XT-IEC-Power Control

Advanced Trip Unit

In addition to the selectability, the XTPE is also available with an advanced trip unit that can communicate system data and protector data thru SmartWire-DT. SmartWire-DT is an innovative cost effective connection technology that enables quick installation of control wiring to the starter through a single green cable. When on SmartWire DT, the XTPE can communicate the following:

  • Current Values
    • Maximum phase current
    • Overload warning
  • Diagnostics Data
    • Overload fault
    • Cause of trip (overcurrent or short circuit)
    • Phase loss
    • Trip via TEST
  • Status Messages
    • Control unit type
    • Overload setting
    • Time-lag
    • Switching status

XTPE Electronic MMP

The XTPE Electronic MMP provides the selectability, control, and insight options that give panel builders and OEMs the solutions necessary to enhance motor control designs while reducing total costs. Standards and Certifications

  • CE approved
  • UL Listed File No. E36332
  • UL 508 group motor and Type E
  • IEC/EN 60947
  • CSA File 012528, Class 3211-05

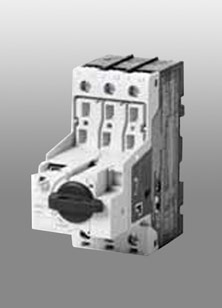

MMP Base
Maximum
Amperage 		UL/CSA
Maximum Three-Phase hp Ratings 		Old Moeller
Part Number 		New Eaton
Part Number
200V 240V 480V 600V
17 3 3 7.5 10 PKE12 XTPE012B
32 5 7.5 15 20 PKE32 XTPE032B
65 15 15 40 40 PKE65 XTPE065D

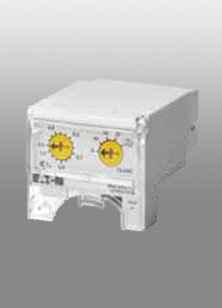

MMP Trip Unit
Overload
Release Settings
Amp Range 		For Use with
Base Catalog
Number 		UL/CSA
Maximum Three-Phase hp Ratings 		Old Moeller
Part Number 		New Eaton
Part Number
200V 240V 480V 600V
0.3-1.2 XTPE012BNL * * 0.5 0.5 PKE-XTU-1.2 XTPEXT1P2B
1.0 - 4 XTPE012BNL 0.75 0.75 2.0 3.0 PKE-XTU-4 XTPEXT004B
3.0 - 12 XTPE012BNL
XTPE032BNL 		3.0 3.0 7.5 10.0 PKE-XTU-12 XTPEXT012B
8.0-32 XTPE032BNL 5.0 7.5 15.0 20.0 PKE-XTU-32 XTPEXT032B
8.0-32 XTPE032BNL 7.5 7.5 20.0 25.0 PKE-XTUW-32 XTPEXT032D
16-65 XTPE065DNL 15.0 15.0 40.0 40.0 PKE-XTU-65 XTPEXT065D
* - In this range, calculate motor rating according to rated current. Specified values to NEC 430.6(A)(1)
MMP Advanced Trip Units Used with SmartWire-DT
Overload
Release Settings
Amp Range 		For Use with
Base Catalog
Number 		UL/CSA
Maximum Three-Phase hp Ratings 		Old Moeller
Part Number 		New Eaton
Part Number
200V 240V 480V 600V
0.3-1.2 XTPE012BNL * * 0.5 0.5 PKE-XTUA-1.2 XTPEXTA1P2B
1.0 - 4 XTPE012BNL 0.75 0.75 2.0 3.0 PKE-XTUA-4 XTPEXTA004B
3.0 - 12 XTPE012BNL
XTPE032BNL 		3.0 3.0 7.5 10.0 PKE-XTUA-12 XTPEXTA012B
8.0-32 XTPE032BNL 5.0 7.5 15.0 20.0 PKE-XTUA-32 XTPEXTA032B
8.0-32 XTPE032BNL 7.5 7.5 20.0 25.0 PKE-XTUWA-32 XTPEXTA032D
16-65 XTPE065DNL 15.0 15.0 40.0 40.0 PKE-XTUA-65 XTPEXTA065D
* - In this range, calculate motor rating according to rated current. Specified values to NEC 430.6(A)(1)

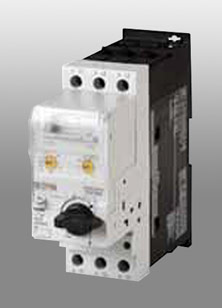

MMP Complete Assembly
Overload
Release Settings
Amp Range 		UL/CSA
Maximum Three-Phase hp Ratings 		Complete Manual Motor Protector
200V 240V 480V 600V Old Moeller
Number 		New Eaton
Number
0.3-1.2 * * 0.5 0.5 PKE12-XTU-1.2 XTPE1P2BCS
1.0 - 4 0.75 0.75 2.0 3.0 PKE12-XTU-4 XTPE004BCS
3.0 - 12 3.0 3.0 7.5 10.0 PKE12-XTU-12 XTPE012BCS
8.0-32 5.0 7.5 15.0 20.0 PKE32-XTU-32 XTPE032BCS
16-65 15.0 15.0 40.0 40.0 PKE65-XTU-65 XTPE065DCS
* In this range, calculate motor rating according to rated current. Specified values to NEC 430.6(A)(1)

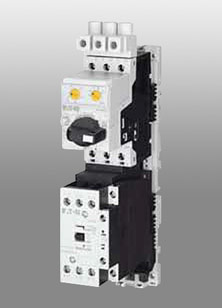

B Frame Electronic MMP with C Frame Contactor
Overload
Release
Settings
Amp Range 		UL/CSA
Maximum Three-Phase
hp Ratings 		Maximum
Single-Phase
hp Rating 		Type Number
Standard 		Catalog Number
With SmartWire-DT
200V 240V 380Y/
415V 		380Y/
277V 		600Y/
347V 		115V 200V 240V
0.3-1.2 * * * * 0.5 * * * XTFCE1P2BCCS_ (3) XTFCE1P2BCCATD (3)
1.0 - 4 0.75 0.75 1.5 2 - 0.125 0.25 0.33 XTFCE004BCCS_ (4) XTFCE004BCCATD (4)
3.0 - 12 3.0 3.0 5.0 7.5 - 0.5 1.0 1.5 XTFCE012BCCS_ (4) XTFCE012BCCATD (4)
8.0-32 5.0 5.0 10 15 - 1.5 3 3 XTFCE032BCCS_ (4) XTFCE032BCCATD (4)
* - In this range, calculate motor rating according to rated current. Specified values to NEC 430.6(A)(1)
(2) Complete the catalog number replacing the underscore(_) with the coil suffix
(3) SCCR: 14 kA, 600Vac
(4) SCCR: 18 kA, 480 Vac

PKZ2 Series

Stock is Limited - Order Now!

# # #
Adjustable Thermal Range Adjustable trip setting current of magnetic trips (A) UL/CSA 3-phase HP ratings Base Only Trip Block Only Contactor Only
200V HP 230V HP 460V HP 575V HP
0.4 - 0.6 5 - 8 PKZ2 ZM-0.6-PKZ2 S-PKZ2 (1)
0.6 - 1 8 - 14 .5 .5 ZM--1-PKZ2
1 - 1.6 14 -22 .75 1 ZM-1.6-PKZ2
1.6 - 2.4 20 - 35 .5 .5 1 1.5 ZM-2.4-PKZ2
2.4 - 4 35 - 55 1 1 2 3 ZM-4-PKZ2
4 - 6 50 - 80 1.5 1.5 3 5 ZM-6-PKZ2
6 - 10 80 -140 2 3 5 7.5 ZM-10-PKZ2
10 - 16 130 - 220 3 5 10 10 ZM-16-PKZ2
16 - 25 . 200 - 350 7.5 7.5 20 25 ZM-25-PKZ2
24 - 32 275 - 425 10 10 20 30 ZM-32-PKZ2
32 - 40 350 - 500 10 15 30 30 ZM-40-PKZ2

(1) Provide coil voltage


PKZ2 - Combinations

Stock is Limited - Order Now!

# # # #
Adjustable Thermal Range Adjustable trip setting current of magnetic trips (A) UL/CSA 3-phase HP ratings Manual Motor Protector Combo Motor Starter without Trip Module Motor Starter WITH Trip Module Self-protected Combo Starter
200V HP 230V HP 460V HP 575V HP
0.4 - 0.6 5 - 8 PKZ2/ZM-0.6 PKZ2/S (1) PKZ2/ZM-0.6/S (1) PKZ2/S-SP (1)
0.6 - 1 8 - 14 .5 .5 PKZ2/ZM-1 PKZ2/ZM-1/S (1)
1 - 1.6 14 - 22 .75 1 PKZ2/ZM-1.6 PKZ2/ZM-1.6/S (1)
1.6 - 2.4 20 - 35 .5 .5 1 1.5 PKZ2/ZM-2.4 PKZ2/ZM-2.4/S (1)
2.4 - 4 35 - 55 1 1 2 3 PKZ2/ZM-4 PKZ2/ZM-4/S (1)
4 - 6 50 - 80 1.5 1.5 3 5 PKZ2/ZM-6 PKZ2/ZM-6/S (1)
6 - 10 80 - 140 2 3 5 7.5 PKZ2/ZM-10 PKZ2/ZM-10/S (1)
10 - 16 130 - 220 3 5 10 10 PKZ2/ZM-16 PKZ2/ZM-16/S (1)
16 - 25 200 - 350 7.5 7.5 20 25 PKZ2/ZM-25 PKZ2/ZM-25/S (1)
24 - 32 275 - 425 10 10 20 30 PKZ2/ZM-32 PKZ2/ZM-32/S (1)
32 - 40 350 - 500 10 15 30 30 PKZ2/ZM-40 PKZ2/ZM-40/S (1)

(1) Provide coil voltage
