This two-digit code is found on the auxiliary contact to assist in identifying the specific contact configuration. The first digit indicates the quantity of NO contacts and the second indicates the quantity of NC contacts.

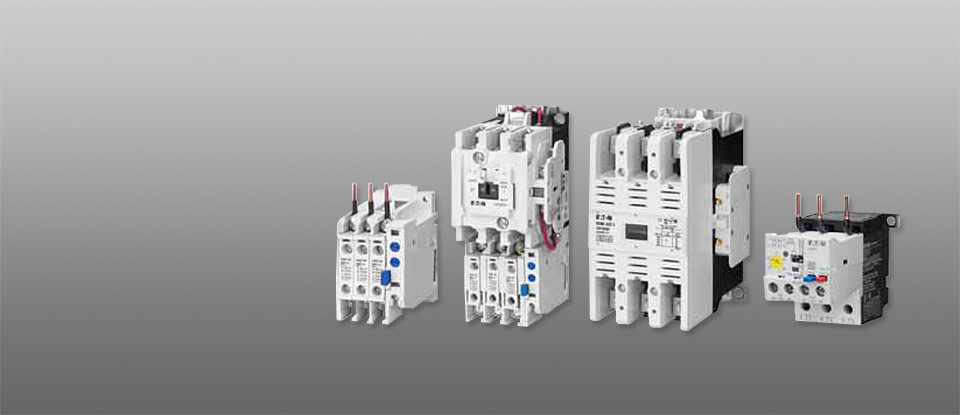

The auxiliary contacts listed on this page are designed for installation on Freedom Series starters and contactors. Snap-on design facilitates quick, easy installation. These bifurcated design contact blocks, featuring silver cadmium alloy contacts, are well suited for use in very low energy (logic level) circuits.

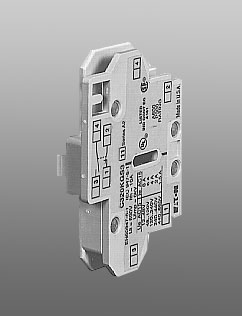

| Side Mounted | ||
| Description | Contact Configuration Code(2) | Part Number |
|---|---|---|
| 1NO | 10 | C320KGS1 |
| 1NC | 01 | C320KGS2 |
| 1NO-1NC | 11 | C320KGS3 |
| 2NO | 20 | C320KGS4 |
| 2NC | 02 | C320KGS5 |
| 1NO-1NCI | N/A | C320KGS6 |
| 1NO (EC)-1NC (LO) | N/A | C320KGS7 |
| 1NCI | N/A | C320KGS8 |

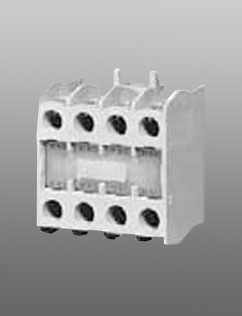

| Top Mounted | ||
| 1NO | 10 | C320KGT1 |
| 1NC | 01 | C320KGT2 |
| 1NO-1NC | 11 | C320KGT3 |
| 2NO | 20 | C320KGT4 |
| 2NC | 02 | C320KGT5 |
| 1NO-1NCI | N/A | C320KGT6 |
| 1NO (EC)-1NC (LO) | N/A | C320KGT7 |
| 1NCI | N/A | C320KGT8 |
| 3NO | 30 | C320KGT9 |
| 2NO-1NC | 21 | C320KGT10 |
| 1NO-2NC | 12 | C320KGT11 |
| 3NC | 03 | C320KGT12 |
| 4NO | 40 | C320KGT13 |
| 3NO-1NC | 31 | C320KGT14 |
| 2NO-2NC | 22 | C320KGT15 |
| 1NO-3NC | 13 | C320KGT16 |
| 4NC | 04 | C320KGT17 |
| 3NO-1NC | N/A | C320KGT18 |
| 2NO-1NCI-1NC | N/A | C320KGT19 |
| 2NO-1NO (EC)-1NC (LO) | N/A | C320KGT20 |
| 1NO-1NC-1NO (EC)-1NC (LO) | N/A | C320KGT21 |
