EATON Freedom Series NEMA Contactors & Electric Motor Starters

EATON Freedom Series Product Family

NEMA Contactors—Non-Reversing and Reversing

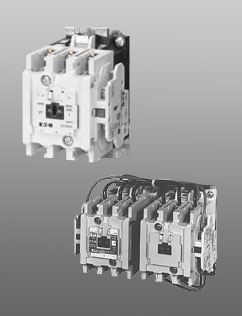

Eaton Freedom Series Contactors

Product Description:

Non-Reversing

Contactors are most commonly used to switch motor loads in applications where running overcurrent protection is either not required or is provided separately. Contactors consist of a magnetically actuated switch which can be remotely operated by a pushbutton station or pilot device such as a proximity switch, limit switch, float switch, auxiliary contacts, and so on.

Reversing

Reversing contactors are used primarily for reversing single- or three-phase motors in applications where running overcurrent protection is either not required or is provided separately. They consist of two contactors mechanically and electrically interlocked to prevent line shorts and energization of both contactors simultaneously.

Features, Benefits and Functions:

  • Designed specifically for use in applications requiring NEMA ratings. Contactors meet or exceed NEMA standards ICS 2-1993
  • Long life twin break, silver cadmium oxide contacts—provide excellent conductivity and superior resistance to welding and arc erosion
  • Designed to 3,000,000 electrical operations at maximum hp ratings up through 25 hp at 600V
  • Steel mounting plate standard on all open type contactors

Non-Reversing

  • Holding circuit contact(s) supplied as standard:
  • Sizes 00–3 have NO auxiliary contact block mounted on right hand side (on Size 00, contact occupies 4th power pole position—no increase in width)
  • Sizes 4–5 have a NO contact block mounted on left side
  • Sizes 6–7 have a 2NO/2NC contact block on top left
  • Size 8 has a NO/NC contact block on top left back and a NO contact block on top right back

Reversing

One NO-NC side mounted interlock supplied as standard on each contactor for Sizes 00–8

NEMA Contactors—Type CN15/CN55 - Non-Reversing and Reversing - 3 Pole

NEMA Size 00 CN55AN3AB
NEMA Size 0 CN15BN3AB
NEMA Size 3 CN15KN3A

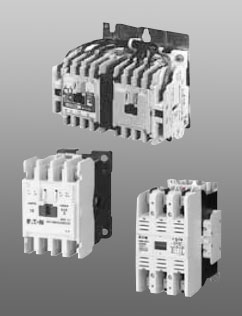

Eaton Contactor Type CN15/CN55
NEMA Size Continuous
Ampere Rating		 Maximum UL Horsepower(2)
Three-Phase		 Non-Reversing Reversing
230V 480V Part Number Part Number
00 9 1 2 CN15AN3AB CN55AN3AB
0 18 3 5 CN15BN3AB CN55BN3AB
1 27 3 10 CN15DN3AB CN55DN3AB
2 45 7.5 25 CN15GN3AB CN55GN3AB
3 90 - 50 CN15KN3A CN55KN3A
4 135 - 100 CN15NN3A CN55NN3A
5 270 - 200 CN15SN3A CN55SN3A
6 540 - 400 CN15TN3AB CN55TN3AB
7 810 - 600 CN15UN3A CN55UN3A
8(2) 1215 - 900 CN15VN3A CN55VN3A

Magnet Coils—AC or DC

Contactor coils listed in this section also have a 50 Hz rating as shown in the Coil Voltage Code section. Select required contactor by Part number and replace the magnet coil alpha designation in the part number (A) with the proper Coil Voltage Code.

For Sizes 00–2, the magnet coil alpha designation will be the next to the last digit of the listed Part number.

EXAMPLE: For a 380V, 50 Hz coil, change CN15AN3_B to CN15AN3LB. For all other sizes, the magnet coil alpha designation will be the last digit of the listed Part number.

Coil Volts and Hertz Code Suffix Coil Volts and Hertz Code Suffix
120/60 or 110/50 A 380-415/50 L
240/60 or 220/50 B 550/50 N
480/60 or 440/50 C 24/60, 24/50 T
600/60 or 550/50 D 24/50 U
208/60 E 32/50 V
277/60 H 48/60 W
208-240/60 J 48/50 Y
240/50 K 48/50 Y
NEMA Size 00 0 1 2 3 4 5 6 7 8
Horsepower 1.5 5 10 25 50 75 150 300 600 900

(1) Maximum horsepower rating of starters for 380V 50 Hz applications:

(2) Common control. For separate 120V control, insert letter D in 7th position of listed Part number. Example:CN15VND3C.

(3) NEMA Sizes 00 and 0 only.

(4) NEMA Sizes 00 and 0 only. Sizes 1–8 are 24/60 only.

NEMA Contactors—Type CN15 - Non-Reversing - 2, 4 and 5 Pole

NEMA Size 2 Five-Pole Contactor CN15GN5AB

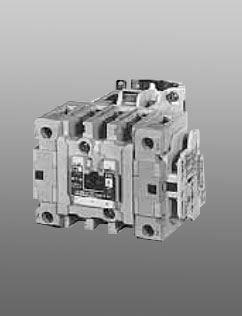

Eaton Freedom Series Contactor CN15
NEMA Size Continuous
Ampere Rating		 Maximum UL Horsepower (2)
Three-Phase		 Two-Pole
Non-Reversing		 Four-Pole
Non-Reversing		 Five-Pole
Non-Reversing
230V 480V
00 9 1 2 CN15AN2AB CN15AN4AB ~
0 18 2 5 CN15BN2AB ~ ~
1 27 3 10 CN15DN2AB CN15DN4AB CN15DN5AB
2 45 7.5 25 CN15GN2AB CN15GN4AB CN15GN5AB
3 90 - 50 CN15KN2A ~ ~
4 135 - 100 CN15NN2A ~ ~
5 270 - 200 CN15SN2A ~ ~
6 540 - 400 CN15TN2AB ~ ~

Magnet Coils—AC or DC

Contactor coils listed in this section also have a 50 Hz rating as shown in the Coil Voltage Code section. Select required contactor by Part number and replace the magnet coil alpha designation in the part number (A) with the proper Coil Voltage Code.

For Sizes 00–2, the magnet coil alpha designation will be the next to the last digit of the listed Part number.

EXAMPLE: For a 380V, 50 Hz coil, change CN15AN3_B to CN15AN3LB. For all other sizes, the magnet coil alpha designation will be the last digit of the listed Part number.

Coil Volts and Hertz Code Suffix Coil Volts and Hertz Code Suffix
120/60 or 110/50 A 380-415/50 L
240/60 or 220/50 B 550/50 N
480/60 or 440/50 C 24/60, 24/50 T
600/60 or 550/50 D 24/50 U
208/60 E 32/50 V
277/60 H 48/60 W
208-240/60 J 48/50 Y
240/50 K 48/50 Y
NEMA Size 00 0 1 2 3 4 5 6 7 8
Horsepower 1.5 5 10 25 50 75 150 300 600 900

(1) Maximum horsepower rating of starters for 380V 50 Hz applications:

(2) Common control. For separate 120V control, insert letter D in 7th position of listed Part number. Example:CN15VND3C.

(3) NEMA Sizes 00 and 0 only.

(4) NEMA Sizes 00 and 0 only. Sizes 1–8 are 24/60 only.
