Eaton Molded Case Circuit Breaker Series-C, J-Frame

J-Frame (70–250 Amperes)

Product Description

All Eaton’s J-Frame circuit breakers are HACR rated
J-Frame circuit breakers are available as individual components (frame, trip unit, terminals), or factory assembled complete breakers
J-Frame circuit breakers with non-interchangeable trip units are suitable for reverse feed use

Types JD, HJD and JDC Thermal-Magnetic Circuit Breakers with Interchangeable Trip Units

Maximum Continuous Ampere Rating at 40°C	Standard Interrupting Capacity 600 Vac Rated 35 kAIC at 480 Vac Factory Assembled Circuit Consisting of Frame, Trip Unit and Terminals ₍₁₎ Part Number	High Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac Factory Assembled Circuit Consisting of Frame, Trip Unit and Terminals ₍₁₎ Part Number	Ultra High Interrupting Capacity Current Limiting 600 Vac Rated 100 kAIC at 480 Vac Factory Assembled Circuit Consisting of Frame, Trip Unit and Terminals ₍₁₎ Part Number	Thermal-Magnetic Trip Unit Only ₍₁₎ For Use with Standard or High or Ultra High Interrupting Frames Part Number	Standard Terminals Only Part Number
Two-Pole
70	JD2070	HJD2070	JDC2070	JT2070T	TA250KB ₍₂₎
90	JD2090	HJD2090	JDC2090	JT2090T
100	JD2100	HJD2100	JDC2100	JT2100T
125	JD2125	HJD2125	JDC2125	JT2125T
150	JD2150	HJD2150	JDC2150	JT2150T
175	JD2175	HJD2175	JDC2175	JT2175T
200	JD2200	HJD2200	JDC2200	JT2200T
225	JD2225	HJD2225	JDC2225	JT2225T
250	JD2250	HJD2250	JDC2250	JT2250T
Three-Pole
70	JD3070	HJD3070	JDC3070	JT3070T	TA250KB ₍₂₎
90	JD3090	HJD3090	JDC3090	JT3090T
100	JD3100	HJD3100	JDC3100	JT3100T
125	JD3125	HJD3125	JDC3125	JT3125T
150	JD3150	HJD3150	JDC3150	JT3150T
175	JD3175	HJD3175	JDC3175	JT3175T
200	JD3200	HJD3200	JDC3200	JT3200T
225	JD3225	HJD3225	JDC3225	JT3225T
250	JD3250	HJD3250	JDC3250	JT3250T
Four-Pole ₍₃₎₍₄₎
125	JD4125	HJD4125	JDC4125	JT4125T	TA250KB ₍₂₎
150	JD4150	HJD4150	JDC4150	JT4150T
175	JD4175	HJD4175	JDC4175	JT4175T
200	JD4200	HJD4200	JDC4200	JT4200T
225	JD4225	HJD4225	JDC4225	JT4225T
250	JD4250	HJD4250	JDC4250	JT4250T

NOTES:
(1) Magnetic trip adjustable 5–10 times continuous ampere rating.
(2) Individually packed.
(3) Fully rated neutral pole with no protection.
(4) Neutral is in right pole.

Types JD, HJD and JDC Thermal-Magnetic Circuit Breakers—Frame Only

Standard Interrupting Capacity 600 Vac Rated 35 kAIC at 480 Vac Part Number	High Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac Part Number	Ultra High Interrupting Capacity Current Limiting 600 Vac Rated 100 kAIC at 480 Vac Part Number
Two-Pole
JD2250F	HJD2250F	JDC2250F
Three-Pole
JD3250F	HJD3250F	JDC3250F
Four-Pole
JD4250F	HJD4250F	JDC4250F

Type JDB Thermal-Magnetic Circuit Breakers with Non- Interchangeable Thermal-Magnetic Trip Units Suitable for Reverse Feed Application

Maximum Continuous Ampere Rating at 40°C	600 Vac Rated, 250 Vdc Complete Circuit Breaker
Maximum Continuous Ampere Rating at 40°C	Without Line and Load Terminals Part Number	With Standard Line and Load Terminals Only Part Number
Two-Pole
70	JDB2070W	JDB2070
90	JDB2090W	JDB2090
100	JDB2100W	JDB2100
125	JDB2125W	JDB2125
150	JDB2150W	JDB2150
175	JDB2175W	JDB2175
200	JDB2200W	JDB2200
225	JDB2225W	JDB2225
250	JDB2250W	JDB2250
Three-Pole
70	JDB3070W	JDB3070
90	JDB3090W	JDB3090
100	JDB3100W	JDB3100
125	JDB3125W	JDB3125
150	JDB3150W	JDB3150
175	JDB3175W	JDB3175
200	JDB3200W	JDB3200
225	JDB3225W	JDB3225
250	JDB3250W	JDB3250

Molded Case Switches

Eaton’s molded case switches are used as compact switches in applications requiring high current switching capabilities. Molded case switches are constructed of circuit breaker components and are of the high instantaneous automatic type. Molded case switches are listed in accordance with Underwriters Laboratories Standard UL 489.

Maximum Continuous Ampere Rating at 40°C	600 Vac Maximum, 250 Vdc Complete Circuit Breaker Only Without Line and Load Terminals		Standard Terminals Only Part Number
	Part Number	Suitable for Reverse Feed Use Part Number
Two-Pole
250	JD2250KW	JDB2250KW	TA250KB ₍₁₎
	HJD2250KW	HJDB2250KW	—
Three-Pole
250	JD3250KW	JDB3250KW	TA250KB ₍₁₎
	HJD3250KW	HJDB3250KW	—
Four-Pole
250	JD4250KW	JDB4250KW	TA250KB ₍₁₎
	HJD4250KW	HJDB4250KW	—

NOTES:
(1) Individually packed.
Molded case switches may open above 2500 amperes.

Accessories Selection Guide and Ordering Information

Line and Load Terminals

Eaton’s line and load terminals provide wire connecting capabilities for specific ranges of continuous current ratings and wire types. All terminals comply with Underwriters Laboratories Standards UL 486A and UL 486B and CSA Standard C22.2 No. 65, or Electrical Bulletin 1165. Unless otherwise specified, JFrame circuit breaker line and load terminals are shipped separately for field installation.

The bottom of the standard TA250KB terminal contains a recess that is positioned over the J-Frame circuit breaker terminal conductor.

Ordering Information

J-Frame circuit breakers use Cu/AI terminals as standard. When optional copper-only terminals are required, order by catalog number. Specify if factory installation is required.

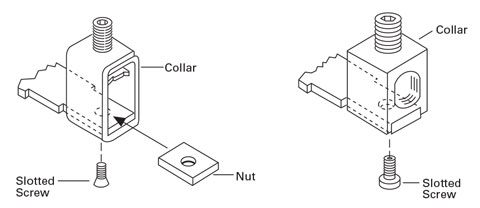

T250KB Terminal	TA250KB Terminal (Standard)

Line and Load Terminals

Maximum Breaker Amperes	Terminal Body Material	Wire Type	AWG Wire Range/ No. Conductors	Metric Wire Range mm ₂	Pat Number
Standard Cu/AI Pressure Terminals
250	Aluminum	Cu/AI	4–350 kcmil	25–185	TA250KB
Optional Cu Pressure Terminals
250	Stainless Steel	Cu	4–350 kcmil	25–185	T250KB
