TIMING RELAYS

DILET Mini Electronic Timers

Conventional Thermal Current (Amps)	Rated Operational Current AC-11 (Amps)		Time Range	Function	Moeller	Eaton
Conventional Thermal Current (Amps)	220/230 240V	380/400 440V	Time Range	Function	Moeller	Eaton

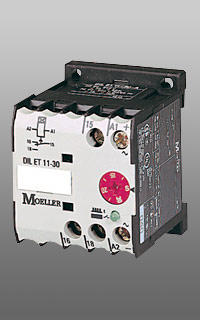

6	3	3	1.5 - 30 sec	FIXED, ON-DELAY	DILET11-M-A	XTMT6A60H11B
			1.5 - 30 sec
			0.15 - 3 sec
			0.5 - 10 sec
			3 - 60 sec
			0.15 - 3 min
			0.5 - 10 min
			3 - 60 min
			0.15 - 3h
			0.5 - 10h
			3 - 60h

Conventional Thermal Current (Amps)	Rated Operational Current AC-11 (Amps)		Time Range	Function	Moeller	Eaton
Conventional Thermal Current (Amps)	220/230 240V	380/400 440V	Time Range	Function	Moeller	Eaton

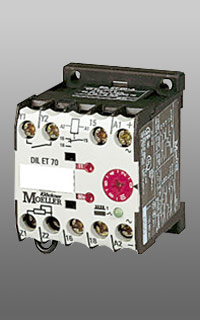

6	3	3	0.05 - 1 sec	Adjustable: on-delay; fleeting contact on energization; flashing; pulse generating; ON-OFF	DILET70-A	XTMT6A60H70B
			0.15 - 3 sec
			0.5 - 10 sec
			3 - 60 sec
			0.15 - 3 min
			0.5 - 10 min
			3 - 60 min
			0.15 - 3h
			0.5 - 10h
			3 - 60h

Function	Selectable Time Ranges			Actuating Voltage		Moeller	Eaton
Function	Seconds	Minutes	Hours	DC	AC 50/60 Hz	Moeller	Eaton
Star-Delta Timers	3 - 60 (Fixed Range)	~	~	24 - 240	24 - 240	ETR4-51-A	XTTR6A60S51B
Star-Delta Timers	3 - 60 (Fixed Range)	~	~	~	400	ETR4-51-W	XTTR6A60S51N
On Delay Timers	0.05 - 1	1.5 - 30 15 - 300	1.5 - 30 5 - 100	24 - 240	24 - 240	ETR4-11-A	XTTR6A100HS11B
	0.15 - 3
	0.5 - 10
	1.5 - 30			~	400	ETR4-11-W	XTTR6A100HS11N
	5 - 100
	15 - 300
Multi-Function Timers	0.05 - 1	1.5 - 30 15 - 300	1.5 - 30 5 - 100	24 - 240	24 - 240	ETR4-69-A	XTTR6A100H69B
	0.15 - 3
	0.5 - 10
	1.5 - 30			~	400	ETR4-69-W	XTTR6A100H69N
	5 - 100
	15 - 100
Multi-Function relay with connection for potentiometer	0.5 - 1	1.5 - 30 15 - 300	1.5 - 30 5 - 100	24 - 240	24 - 240	ETR4-70-A	XTTR6A100H70B
	0.15 - 3
	0.5 - 10
	1.5 - 30			~	400	ETR4-70-W	XTTR6A100H70N
	5 - 100
	15 - 300

Description	Supply Voltage	Timing Range (sec)	For use with…	Moeller	Eaton

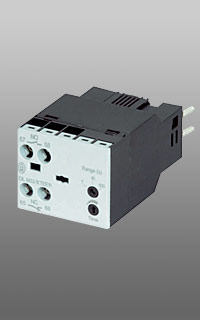

ON DELAY	24V AC/DC	0.05 - 1	DILM7 - DILM32 XTCE007 to XTCE032 DILA / XTRE	DILM32-XTEE11(RA24)	XTCEXTEEC11T
	100 - 130V AC	0.5 - 10		DILM32-XTEE11(RAC130)	XTCEXTEEC11A
	200 - 240V AC	5 - 100		DILM32-XTEE11(RAC240)	XTCEXTEEC11B
OFF DELAY	24V AC/DC	0.05 - 1	DILM7 - DILM32 XTCE007 to XTCE032 DILA / XTRE	DILM32-XTED11-1(RA24)	XTEDXTED1C11T
		0.5 - 10		DILM32-XTED11-10(RA24)	XTCEXTED10C11T
		5 - 100		DILM32-XTED11-100(RA24)	XTCEXTED1C11A
	100 - 130V AC	0.05 - 1		DILM32-XTED11-1(RAC130)	XTCEXTED1C11A
		0.5 - 10		DILM32-XTED11-10(RAC130)	XTCEXTED10C11A
		5 - 100		DILM32-XTED11-100(RAC130)	XTCEXTED100C11A
	200 - 240V AC	0.05 - 1		DILM32-XTED11-1(RAC240)	XTCEXTED1C11B
		0.5 - 10		DILM32-XTED11-10(RAC240)	XTCEXTED10C11B
		5 - 100		DILM32-XTED11-100(RAC240)	XTCEXTED100C11B
STAR-DELTA	24V AC/DC	1 - 30 Switching break, 50ms	DILM7 - DILM32 XTCE007 to XTCE032	DILM32-XTEY20(RA24)	XTCEXTEYC20T
	100 - 130V AC			DILM32-XTEY20(RAC130)	XTCEXTEYC20A
	200 - 240V AC			DILM32-XTEY20(RAC240)	XTCEXTEYC20B
