Eaton Molded Case Circuit Breaker Series-C, R-Frame

N-Frame (400–1200 Amperes)

Product Description

  • Eaton R-Frame circuit breakers are available as frame (which includes trip unit), rating plug and terminals
  • All R-Frame circuit breakers are suitable for reverse feed use

Digitrip RMS 510 Electronic Circuit Breakers with Interchangeable Rating Plugs

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 RD316T51W RD316T53W RD316T52W RD316T54W RD316T55W RD316T56W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RD320T51W RD320T53W RD320T52W RD320T54W RD320T55W RD320T56W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RD325T51W RD325T53W RD325T52W RD325T54W RD325T55W RD325T56W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 RDC316T51W RDC316T53W RDC316T52W RDC316T54W RDC316T55W RDC316T56W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RDC320T51W RDC320T53W RDC320T52W RDC320T54W RDC320T55W RDC320T56W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RDC325T51W RDC325T53W RDC325T52W RDC325T54W RDC325T55W RDC325T56W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250

100% Rated Digitrip RMS 510 Circuit Breakers

The NEC allows the breaker to be rated at 100% of its frame size in an assembly, provided that 90°C wire is applied at 75°C ampacity. Order as individual components: breaker frame (which includes trip unit) and rating plug.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 CRD316T51W CRD316T53W CRD316T52W CRD316T54W CRD316T55W CRD316T56W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRD320T51W CRD320T53W CRD320T52W CRD320T54W CRD320T55W CRD320T56W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 — CRDC316T53W CRDC316T52W CRDC316T54W CRDC316T55W CRDC316T56W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRDC320T51W CRDC320T53W CRDC320T52W CRDC320T54W CRDC320T55W CRDC320T56W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200

NOTES:
(1) Includes B2016RDL rear connectors.

Digitrip RMS 610 Electronic Circuit Breakers with Interchangeable Rating Plugs

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 RD316T61W RD316T63W RD316T62W RD316T64W RD316T65W RD316T66W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RD320T61W RD320T63W RD320T62W RD320T64W RD320T65W RD320T66W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RD325T61W RD325T63W RD325T62W RD325T64W RD325T65W RD325T66W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 RDC316T61W RDC316T63W RDC316T62W RDC316T64W RDC316T65W RDC316T66W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RDC320T61W RDC320T63W RDC320T62W RDC320T64W RDC320T65W RDC320T66W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RDC325T61W RDC325T63W RDC325T62W RDC325T64W RDC325T65W RDC325T66W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250

100% Rated Digitrip RMS 610 Circuit Breakers

The NEC allows the breaker to be rated at 100% of its frame size in an assembly, provided that 90°C wire is applied at 75°C ampacity. Order as individual components: breaker frame (which includes trip unit) and rating plug.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 CRD316T61W CRD316T63W CRD316T62W CRD316T64W CRD316T65W CRD316T66W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRD320T61W CRD320T63W CRD320T62W CRD320T64W CRD320T65W CRD320T66W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 CRDC316T61W CRDC316T63W CRDC316T62W CRDC316T64W CRDC316T65W CRDC316T66W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRDC320T61W CRDC320T63W CRDC320T62W CRDC320T64W CRDC320T65W CRDC320T66W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200

NOTES:
(1) Includes B2016RDL rear connectors.

Digitrip RMS 810 Electronic Circuit Breakers with Interchangeable Rating Plugs

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 RD316T81W RD316T83W RD316T82W RD316T84W RD316T85W RD316T86W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RD320T81W RD320T83W RD320T82W RD320T84W RD320T85W RD320T86W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RD325T81W RD325T83W RD325T82W RD325T84W RD325T85W RD325T86W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 RDC316T81W RDC316T83W RDC316T82W RDC316T84W RDC316T85W RDC316T86W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RDC320T81W RDC320T83W RDC320T82W RDC320T84W RDC320T85W RDC320T86W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RDC325T81W RDC325T83W RDC325T82W RDC325T84W RDC325T85W RDC325T86W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250

100% Rated Digitrip RMS 810 Circuit Breakers

The NEC allows the breaker to be rated at 100% of its frame size in an assembly, provided that 90°C wire is applied at 75°C ampacity. Order as individual components: breaker frame (which includes trip unit) and rating plug.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 CRD316T81W CRD316T83W CRD316T82W CRD316T84W CRD316T85W CRD316T86W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRD320T81W CRD320T83W CRD320T82W CRD320T84W CRD320T85W CRD320T86W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 CRDC316T81W CRDC316T83W CRDC316T82W CRDC316T84W CRDC316T85W CRDC316T86W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRDC320T81W CRDC320T83W CRDC320T82W CRDC320T84W CRDC320T85W CRDC320T86W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200

NOTES:
(1) Includes B2016RDL rear connectors.

Digitrip RMS 910 Electronic Circuit Breakers with Interchangeable Rating Plugs

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 RD316T91W RD316T93W RD316T92W RD316T94W RD316T95W RD316T96W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RD320T91W RD320T93W RD320T92W RD320T94W RD320T95W RD320T96W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RD325T91W RD325T93W RD325T92W RD325T94W RD325T95W RD325T96W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 RDC316T91W RDC316T93W RDC316T92W RDC316T94W RDC316T95W RDC316T96W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RDC320T91W RDC320T93W RDC320T92W RDC320T94W RDC320T95W RDC320T96W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RDC325T91W RDC325T93W RDC325T92W RDC325T94W RDC325T95W RDC325T96W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250

100% Rated Digitrip RMS 910 Circuit Breakers

The NEC allows the breaker to be rated at 100% of its frame size in an assembly, provided that 90°C wire is applied at 75°C ampacity. Order as individual components: breaker frame (which includes trip unit) and rating plug.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip Rating Plug Only
LI LS LSI LIG LSG LSIG Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 CRD316T91W CRD316T93W CRD316T92W CRD316T94W CRD316T95W CRD316T96W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRD320T91W CRD320T93W CRD320T92W CRD320T94W CRD320T95W CRD320T96W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 CRDC316T91W CRDC316T93W CRDC316T92W CRDC316T94W CRDC316T95W CRDC316T96W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRDC320T91W CRDC320T93W CRDC320T92W CRDC320T94W CRDC320T95W CRDC320T96W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200

NOTES:
(1) Includes B2016RDL rear connectors.

Digitrip OPTIM Electronic Circuit Breakers with Interchangeable Rating Plugs

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
LSIA 1050 LSIG 1050 Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 RD316T107W RD316T106W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RD320T107W RD320T106W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RD325T107W RD325T106W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 RDC316T107W RDC316T106W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 RDC320T107W RDC320T106W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
2500 RDC325T107W RDC325T106W 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250

100% Rated 600 Volts AC Digitrip OPTIM Circuit Breakers with Interchangeable Rating Plugs

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
LSIA 1050 LSIG 1050 Rated
Current
(I n ) 		Fixed
Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
1600 CRD316T107W CRD316T106W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 (1) CRD320T107W CRD320T106W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200
Three-Pole High Interrupting Capacity 600 Vac Rated 100 kAIC at 480 Vac
1600 CRDC316T107W CRDC316T106W 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1600 RP6R16A160
2000 CRDC320T107W CRDC320T106W 1000 RP6R20A100
1200 RP6R20A120
1600 RP6R20A160
2000 RP6R20A200

Type RD—High Instantaneous (K)

Continuous
Ampere
Rating
at 40°C 		Complete without Terminals
Three-Pole Four-Pole
1600 RD316WK RD416WK
2000 RD320WK RD420WK

NOTES:
(1) Includes B2016RDL rear connectors.
Molded case switch may trip above 17,500 amperes.

Accessories Selection Guide and Ordering Information

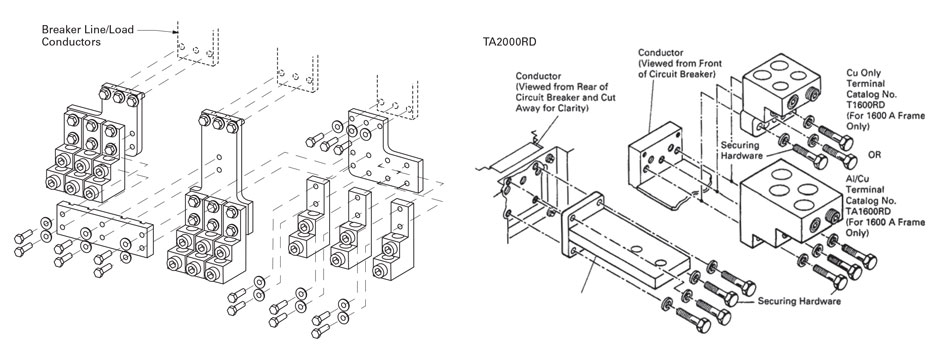

Line and Load Terminals

Line and load terminals provide wire connecting capabilities for specific ranges of continuous current ratings and wire types. All terminals comply with Underwriters Laboratories Standards UL 486A and UL 486B and CSA C22.2 No. 65M. Unless otherwise specified, R-Frame circuit breaker line load terminals are shipped separately for field installation.

Ordering Information

R-Frame circuit breakers have Cu/AI terminals as standard and Cu only terminals as an option. Specify if factory installation is required.

Line and Load Terminals

Maximum
Breaker
Amperes 		Terminal
Body
Material 		Wire
Type 		Hardware AWG/kcmil
Wire Range/
No. Conductors 		Metric Wire
Range mm 2 		Part Number
Cu/AI
1600 Aluminum Cu/AI English 500–1000 (4) 300–500 TA1600RD
1600 Copper Cu English 1–600 (4) 535–3000–300 T1600RD
2000 Aluminum Cu/AI English 2–600 (6) TA2000RD (1)
Rear Connectors
2000 Copper — English — — B2016RD
2000 Copper — English — — B2016RDL (2)
2500 Copper — English — — B2500RD (3)

NOTES:
(1) Catalog Number includes bus connection, terminals and hardware for either line side or load side of three-pole breaker.
(2) For use with 100% rated 1600A and 2000A frame. Do not order separately unless for replacement purposes. Included in breaker carton when 100% rated device is ordered.
(3) For use with 2500A frame. Do not order separately unless for replacement purposes. Included in breaker carton when 2500A breaker is ordered.

Mounting Hardware

© 2025 KMParts - All Rights Reserved | Privacy Policy
