Eaton / Moeller Series

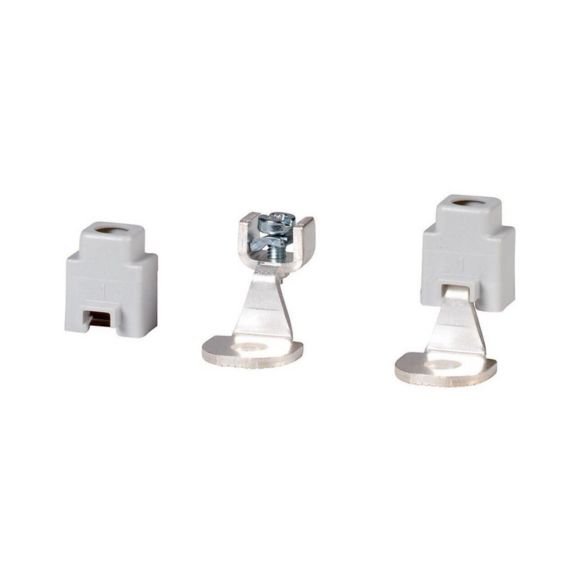

Eaton Moeller NZM Circuit Breaker, 50mm x 25mm x 30mm, 0.017kg, UL489 certified
NZM3/4-XSTS control circuit , screw connections, 1 piece, compatible with NS3, NZM3, PN3, N3, NS3-4, NZM3-4, PN3-4, N3-4, NS4, NZM4, PN4, N4, NS4-4, NZM4-4, PN4-4, and N4-4
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM connection type |
| Catalog Number | 266797 |
| Model Code | NZM3/4-XSTS |
| EAN | 4015082667979 |
| Product Length/Depth | 50 mm |
| Product Height | 25 mm |
| Product Width | 30 mm |
| Product Weight | 0.017 kg |
| Certifications | UL489, IEC60947, UL listed, CSA certified, CE marking |
| Specification | Value |
|---|---|
| Used With | NZM3(-4), PN3, N(S)3(-4), NZM4(-4), N(S)4(-4) |
| Temperature Rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| Short-Circuit Rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| Electromagnetic Compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| Mechanical Function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Corrosion Resistance | Meets the product standard's requirements. |
| Resistance to Ultra-Violet (UV) Radiation | Meets the product standard's requirements. |
