Eaton / Moeller Series

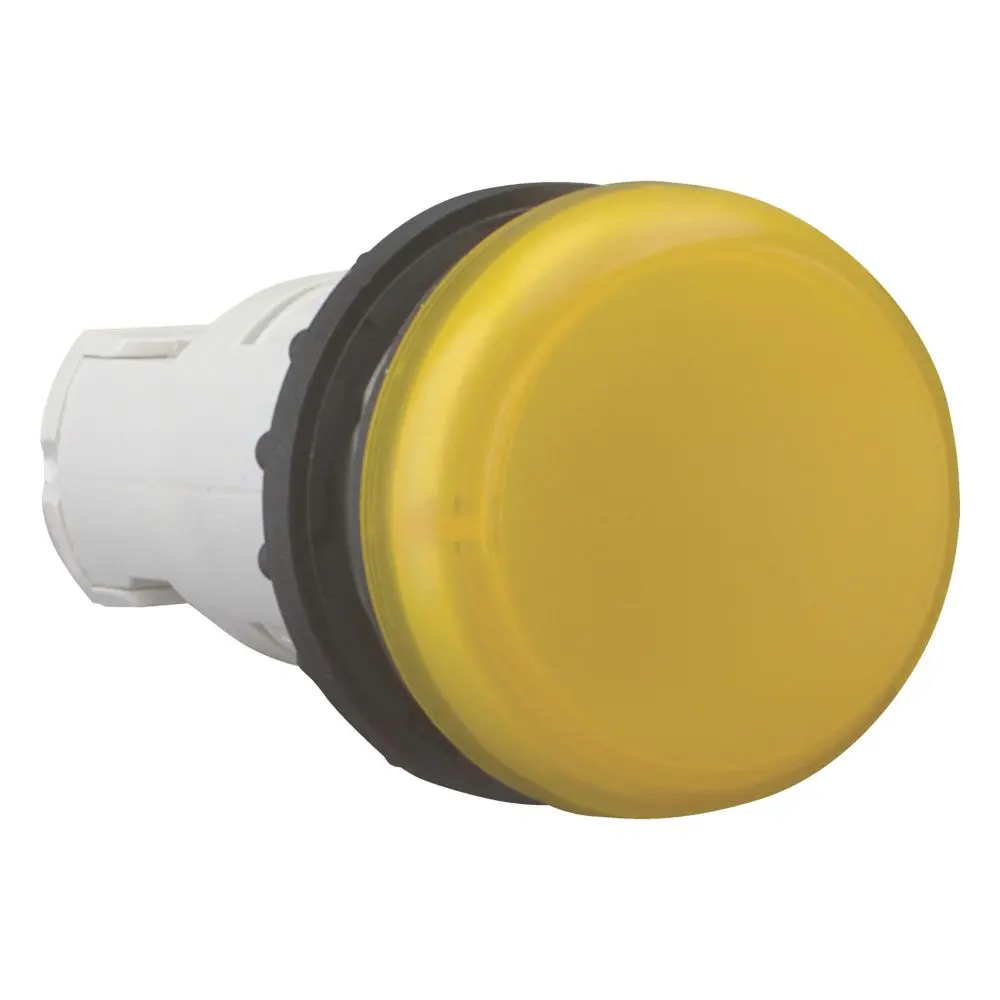

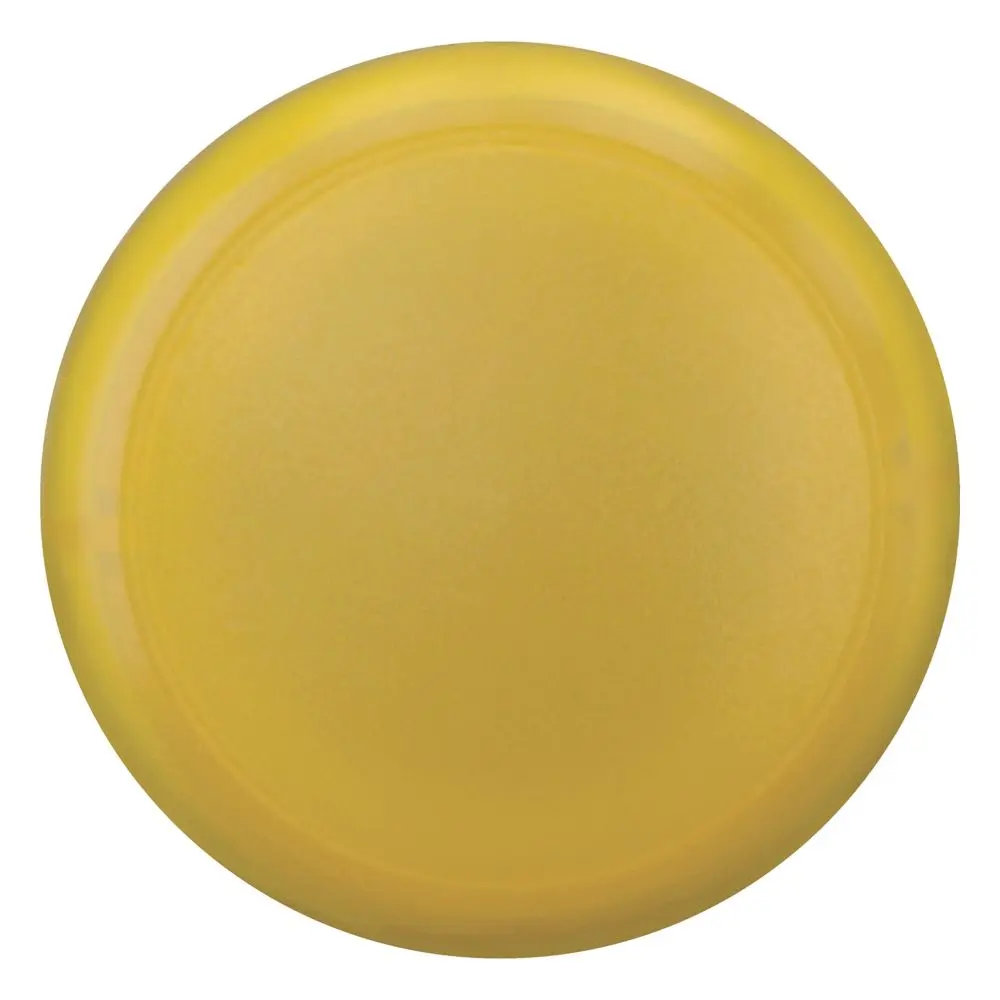

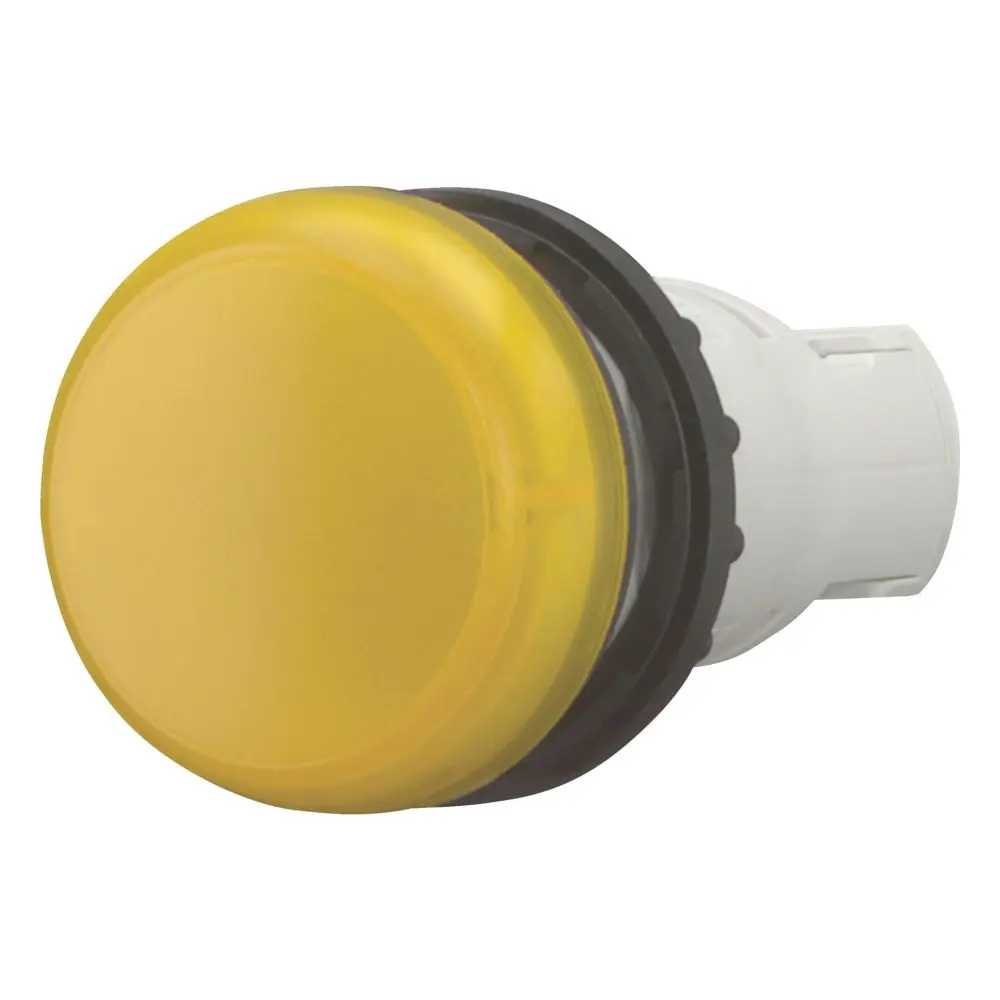

Eaton M22 Indicator light, yellow, IP67/IP69K, 250V, 2.4W max.
Eaton Moeller® series M22 Indicator light, RMQ-Titan, Flush, without light elements, for filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, yellow.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series M22 Indicator light |
| Catalog Number | 216910 |
| EL Number | 3766636 |
| EAN | 4015082169107 |
| Model Code | M22-LC-Y |
| Bezel Color | Chrome |
| Lens Color | Yellow |
| Fitted With | BA 9s lamp socket |
| Mounting Position | As required |
| Shock Resistance | 30 g, according to IEC/EN 60068-2-27 |
| Specification | Value |
|---|---|
| Degree of Protection | NEMA 4X, 13 |
| Degree of Protection (Front Side) | IP67/IP69K |
| Opening Diameter | 22.5 mm |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (UIMP) | 4000 V AC |
| Ambient Operating Temperature - Min | -25 °C |
| Ambient Operating Temperature - Max | 70 °C |
| Rated Insulation Voltage (UI) | 250 V |
