Eaton / Moeller Series

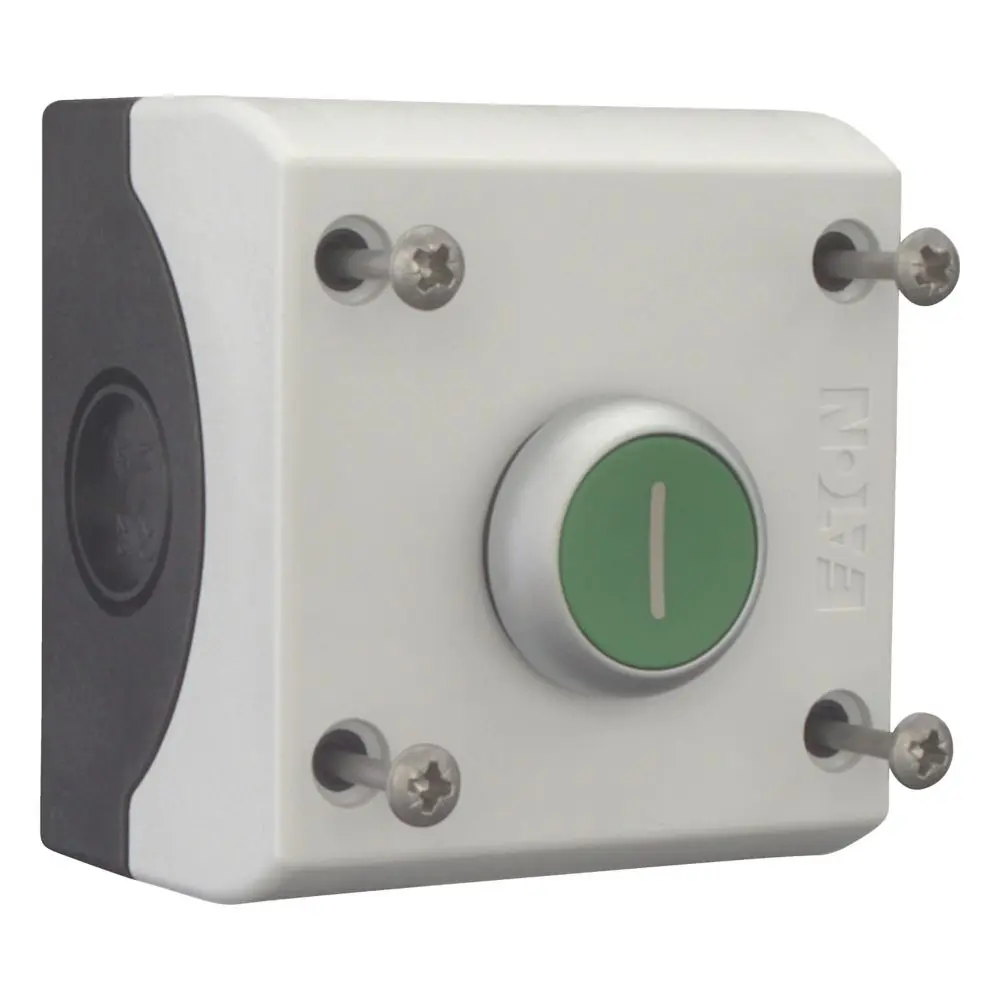

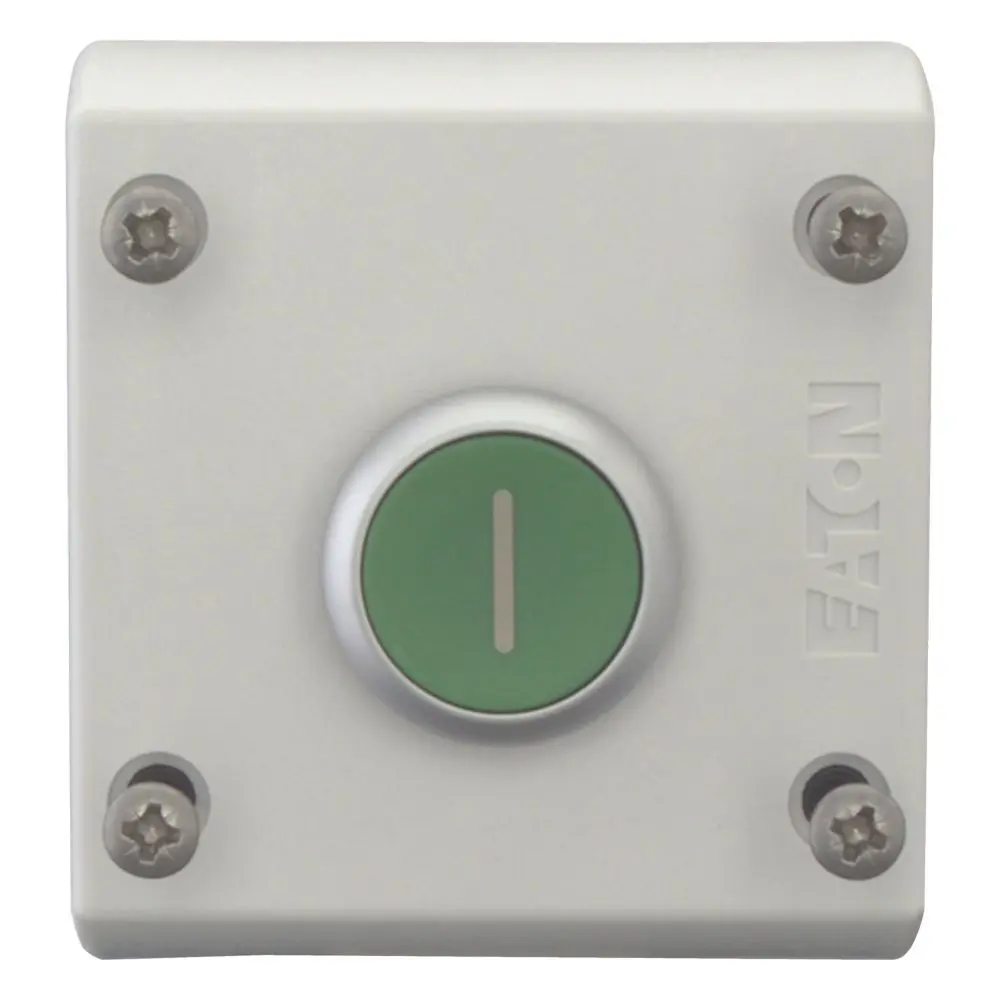

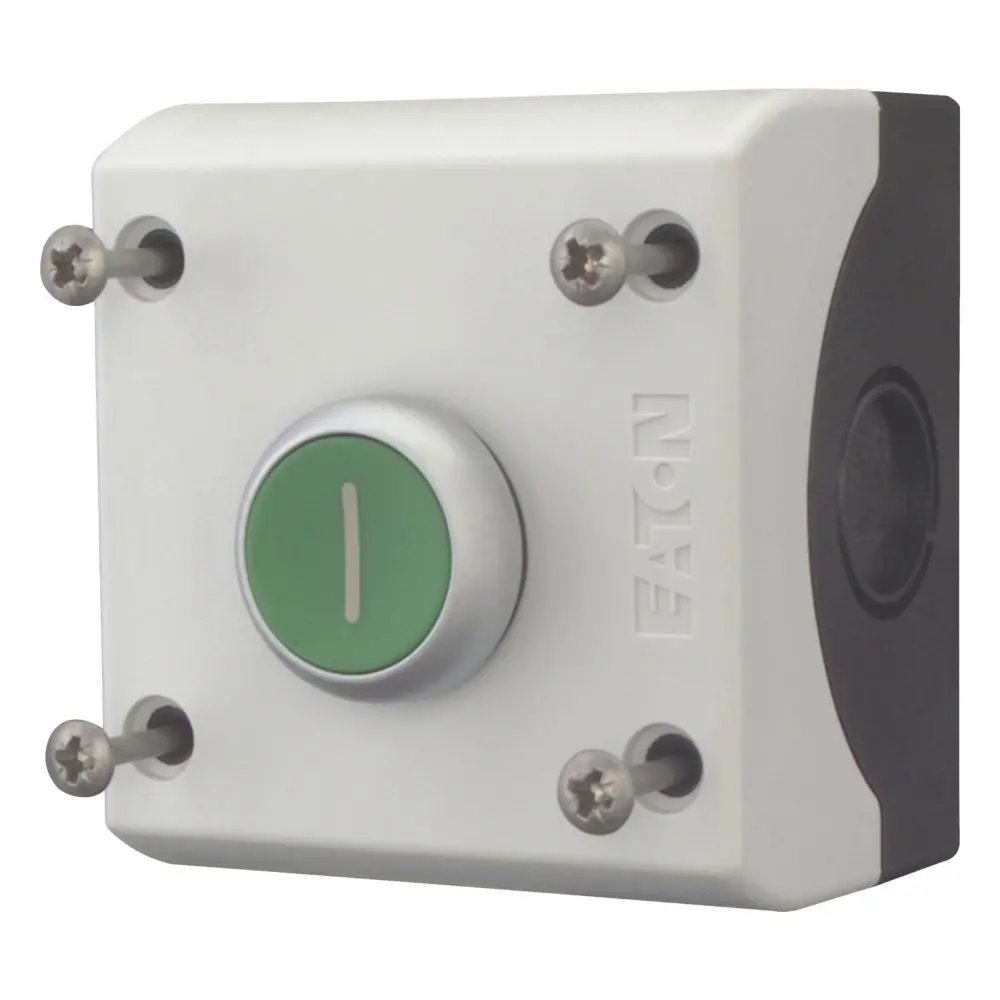

Eaton M22 Pushbutton, momentary, 1 NC, 1 N/O, IP67/IP69K, 70 mm dimensions
Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Enclosure, momentary, 1 NC, 1 N/O, green, inscribed, Bezel: titanium. Product specifications include dimensions of 70 mm x 70 mm x 72 mm and a weight of 0.185 kg. Rated control supply voltage ranges from 115 V to 500 V AC and 24 V to 220 V DC.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series M22 Pushbutton |
| Catalog Number | 216522 |
| Model Code | M22-D-G-X1/KC11/I |
| EAN | 4015082165222 |
| Product Length/Depth | 70 mm |
| Product Height | 70 mm |
| Product Width | 72 mm |
| Product Weight | 0.185 kg |
| Rated Control Supply Voltage (US) at AC, 50 Hz - Max | 500 V |
| Rated Control Supply Voltage (US) at AC, 50 Hz - Min | 115 V |
| Rated Control Supply Voltage (US) at AC, 60 Hz - Max | 500 V |
| Rated Control Supply Voltage (US) at AC, 60 Hz - Min | 115 V |
| Rated Control Supply Voltage (US) at DC - Max | 220 V |
| Rated Control Supply Voltage (US) at DC - Min | 24 V |
| Rated Operational Current for Specified | 6 A |
| Specification | Value |
|---|---|
| Type | Pushbutton actuator |
| Actuator Color | Green |
| Actuator Function | Momentary |
| Operating Frequency | 1800 Operations/h |
| Climatic Proofing | Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78 |
| Enclosure Material | Plastic |
| Actuating Force | 5 N |
| Ambient Operating Temperature - Max | 70 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Degree of Protection | IP67/IP69K, NEMA 4X, 13 |
| Lifespan | 1,000,000 mechanical Operations |
