Eaton

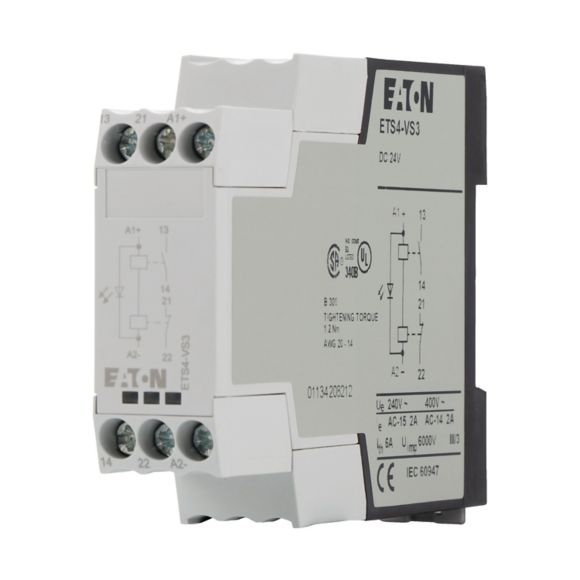

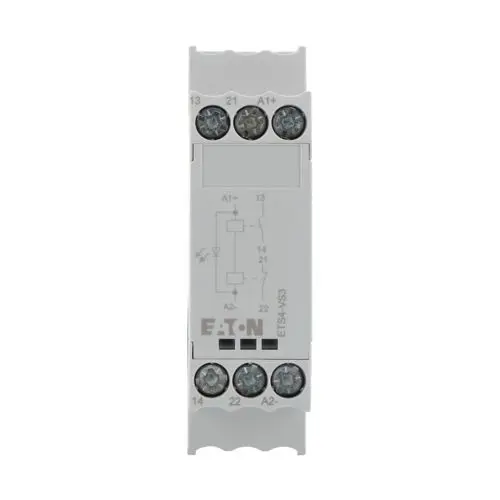

Eaton Moeller amplifier module, 2 A, 24 VDC, IP20, -25°C to 60°C
Eaton Moeller® series amplifier module, Catalog Number 083094, Model Code ETS4-VS3, EAN 4015080830948. Rated Operational Current (IE) is 2 A, Coil Voltage is 24 VDC, Rated Insulation Voltage (UI) is 400 VAC, Rated Impulse Withstand Voltage (UIMP) is 6 kV, Degree of Protection is IP20, Ambient Operating Temperature ranges from -25 °C to 60 °C, Shock Resistance is 10 g, N/O contact, Lifespan is 30,000,000 mechanical Operations (DC operated), Tightening Torque is 1.2 Nm.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series amplifier module |
| Catalog Number | 083094 |
| Model Code | ETS4-VS3 |
| EAN | 4015080830948 |
| Used With | DILM, DILMP, DILL, DILK, DILMF |
| Pollution Degree | 2 |
| Mounting Method | DIN rail |
| Terminal Capacity | 1 x (0.75 - 2.5) mm², solid; 2 x (0.75 - 2.5) mm², solid; 1 x (0.75 - 2.5) mm², flexible with ferrule; 16 - 14 AWG, solid or stranded |
| Specification | Value |
|---|---|
| Rated Operational Current (IE) | 2 A |
| Coil Voltage | 24 VDC |
| Rated Insulation Voltage (UI) | 400 VAC |
| Rated Impulse Withstand Voltage (UIMP) | 6 kV |
| Degree of Protection | IP20 |
| Ambient Operating Temperature - Max | 60 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Shock Resistance | 10 g, N/O contact |
| Lifespan | 30,000,000 mechanical Operations (DC operated) |
| Tightening Torque | 1.2 Nm, Screw terminals |
