INSERT COIL VOLTAGE FROM CHART BELOW
Eaton Klockner Moeller
Control Relays

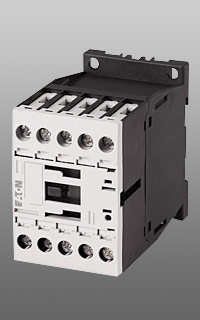

DILA Control Relays
| Schematic DC | Schematic AC | Contacts |
Legacy MOELLER
DC |
Legacy MOELLER
AC |
MOELLER | EATON | |
|---|---|---|---|---|---|---|---|
| NO | NC | ||||||
|
|
4 | 0 | DILR-40-G (1) | DILR-40 (1) | DILA-40 (1) | XTRE10B40 (2) |
|
|
3 | 1 | DILR-31-G (1) | DILR-31 (1) | DILA-31 (1) | XTRE10B31 (2) |
|
|
2 | 2 | DILR-22-G (1) | DILR-22 (1) | DILA-22 (1) | XTRE10B22 (2) |
| UL/CSA | Pilot Duty Rating = A 600 - P 300 (see below chart) | ||||||
| General Purpose (A) = 15A @ 600V AC / 1A @ 250V DC | |||||||
| Complete catalog number (1) with... | Voltage Range | Complete catalog number (1) with... | Voltage DC | |
|---|---|---|---|---|
| 50Hz | 60HZ | |||
| (24V60HZ) | ~ | 24V | (24VDC) | 24V |
| (110V50HZ, 120V60HZ) | 110V | 120V | (48VDC) | 48V |
| (208V60HZ) | ~ | 208V | (110VDC) | 110V |
| (190V50HZ, 220V60HZ) | 190V | 220V | - | - |
| (230V50HZ, 240V60HZ) | 230V | 240V | - | - |
| (415V50HZ, 480V60HZ) | 415V | 480V | - | - |
| (600V60HZ) | ~ | 600V | - | - |
INSERT COIL VOLTAGE FROM CHART BELOW
| Coil Voltage | Suffix Code | Coil Voltage | Suffix Code | Coil Voltage | Suffix Code | Coil Voltage | Suffix Code |
|---|---|---|---|---|---|---|---|
| 110V50Hz, 120V60Hz | A | 230V 50Hz | F | 380V50Hz, 440V60Hz | L | 120VDC | AD |
| 220V50HZ, 240V60HZ | B | 190V50HZ, 220V60HZ | G | 380V 60HZ | P | 220VDC | BD |
| 415V50HZ, 480V60HZ | C | 240V50HZ, 277V60HZ | H | 12V 50/60HZ | R | 12VDC | RD |
| 550V50HZ, 600V60HZ | D | 24V 50/60HZ | T | 42V50HZ, 48V60HZ | W | 48VDC | WD |
| 208V 60HZ | E | 24VDC | TD | 48V 50HZ | Y | ~ | ~ |
| UL/CSA Standard | Continuous Amps | Circuit Voltage | VA | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 120VAC | 240VAC | 480VAC | 600VAC | ||||||||
| Make | Break | Make | Break | Make | Break | Make | Break | Make | Break | ||
| A600 | 10 | 60 | 6 | 30 | 3 | 15 | 1.5 | 12 | 1.2 | 7200 | 720 |
| UL/CSA Standard | Continuous Amps | 125VDC | 250VDC | 301-600VDC | VA | ||||||
| Make | Break | Make | Break | Make | Break | Make | Break | ||||
| P300 | 5 | 1.1 | 1.1 | 0.55 | 0.55 | ~ | ~ | 138 | 138 | ||

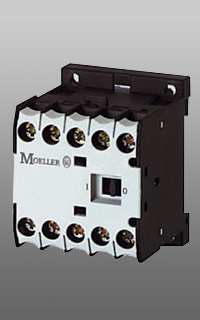

DILER Mini-Control Relays
| Schematic DC | Schematic AC | Contacts | UL/CSA | MOELLER | EATON | ||
|---|---|---|---|---|---|---|---|
| NO | NC | Pilot Duty Rating | General Purpose (A) | ||||
|
|
|
4 | 0 | A 600 - P 300 (see below chart) |
15A @ 600V AC
1A @ 250V DC |
DILER-40 (1) | XTRM10A40 (2) |
|
|
|
3 | 1 | DILER-31 (1) | XTRM10A31 (2) | ||
|
|
|
2 | 2 | DILER-22 (1) | XTRM10A22 (2) | ||
INSERT COIL VOLTAGE FROM CHART BELOW
| Complete catalog number (1) with... | Voltage Range | Complete catalog number (1) with... | Voltage DC | |
|---|---|---|---|---|
| 50Hz | 60HZ | |||
| (24V60HZ) | ~ | 24V | (24VDC) | 24V |
| (110V50HZ, 120V60HZ) | 110V | 120V | (48VDC) | 48V |
| (208V60HZ) | ~ | 208V | (110VDC) | 110V |
| (190V50HZ, 220V60HZ) | 190V | 220V | - | - |
| (230V50HZ, 240V60HZ) | 230V | 240V | - | - |
| (415V50HZ, 480V60HZ) | 415V | 480V | - | - |
| (600V60HZ) | ~ | 600V | - | - |
INSERT COIL VOLTAGE FROM CHART BELOW
| Coil Voltage | Suffix Code | Coil Voltage | Suffix Code | Coil Voltage | Suffix Code | Coil Voltage | Suffix Code | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 110V50Hz, 120V60Hz | A | 230V 50Hz | F | 380V50Hz, 440V60Hz | L | 120VDC | AD | |||
| 220V50HZ, 240V60HZ | B | 190V50HZ, 220V60HZ | G | 380V 60HZ | P | 220VDC | BD | |||
| 415V50HZ, 480V60HZ | C | 240V50HZ, 277V60HZ | H | 12V 50/60HZ | R | 12VDC | RD | |||
| 550V50HZ, 600V60HZ | D | 24V 50/60HZ | T | 42V50HZ, 48V60HZ | W | 48VDC | WD | |||
| 208V 60HZ | E | 24VDC | TD | 48V 50HZ | Y | ~ | ~ |
| UL/CSA Standard | Continuous Amps | Circuit Voltage | VA | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 120VAC | 240VAC | 480VAC | 600VAC | ||||||||
| Make | Break | Make | Break | Make | Break | Make | Break | Make | Break | ||
| A600 | 10 | 60 | 6 | 30 | 3 | 15 | 1.5 | 12 | 1.2 | 7200 | 720 |
| UL/CSA Standard | Continuous Amps | 125VDC | 250VDC | 301-600VDC | VA | ||||||
| Make | Break | Make | Break | Make | Break | Make | Break | ||||
| P300 | 5 | 1.1 | 1.1 | 0.55 | 0.55 | ~ | ~ | 138 | 138 | ||
