Eaton / Moeller Series
The Eaton/Moeller EASY 412-AC-RC is a compact logic relay controller designed for simple automation tasks. It features eight digital inputs and four relay outputs, making it ideal for basic control applications. It includes an integrated LCD display and keypad for direct interaction and programming. This AC-powered unit supports up to 41 lines of logic with three contacts and one coil per line. It also includes a week clock, but no analog input or output capability.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | EASY 412-AC-RC |
|---|---|
| Supply Voltage | 115/240 VAC |
| Power Dissipation | 5 VA |
| Digital Inputs | 8 |
| Analog Inputs | Not Available |
| Digital Outputs | 4 Relay |
| Analog Outputs | Not Available |
| Logic Capacity | Up to 41 lines, 3 contacts + 1 coil per line |
| Display / Keypad | Yes |
| Week / Year Clock | Yes / No |
| Output Continuous Current | 8 A |
| Short-Circuit Protection (cos φ = 1) | Line protection B 16, 600 A |
| Short-Circuit Protection (cos φ = 0.5–0.7) | Line protection B 16, 900 A |

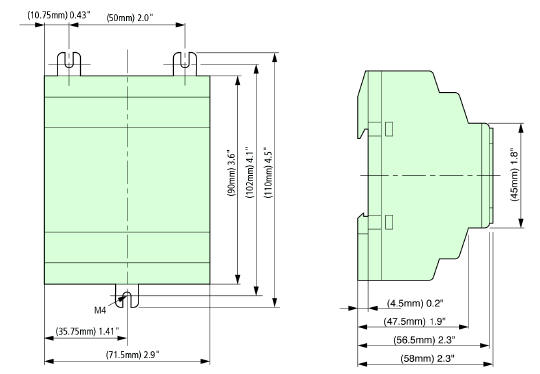

| Dimensions (W x H x D) | 2.8 x 3.5 x 2.3 in |
