SAME EXACT PART- ONLY PART # CHANGE
Moeller DILEM is now
EATON XTMC9A
Miniature Contactors
Miniature contactors with positively driven contacts, except in the case of early-make or late-break contacts. The DC operated contactors (-G) are supplied as standard with a diode/resistor combination surge suppressor. Coil power consumption: 2,6 W Contactor contacts to EN 50 012 Auxiliary contact module contact: ...DIL EM to EN 50 012 ...DIL E to EN 50 005 Contacts to EN 50 012 should be given preference.
Basic Models

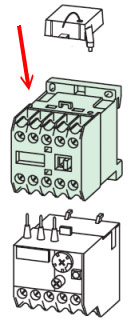

Contactor indicated by green color and red arrow. |
Part# | Hp @ 230 | HP @ 460 | Amps | Normally Open Power | Normally Open Aux | Normally Closed Aux |
|---|---|---|---|---|---|---|---|
| DILEM-10 | 3 | 5 | 15 | 3 | 1 | 0 | |
| DILEM-10-G | 3 | 5 | 15 | 3 | 1 | 0 | |
| DILEM-01 | 3 | 5 | 15 | 3 | 0 | 1 | |
| DILEM-01-G | 3 | 5 | 15 | 3 | 0 | 1 | |
| DILEM-4 | 3 | 5 | 15 | 4 | 0 | 0 | |
| DILEM-4-G | 3 | 5 | 15 | 4 | 0 | 0 |
