Type S Brakes from Eaton’s Electrical Sector are electrically released and spring applied providing “fail-safe” operation. The retarding torque developed is directly proportional to the spring pressure.
A200 Series Shoe Brakes

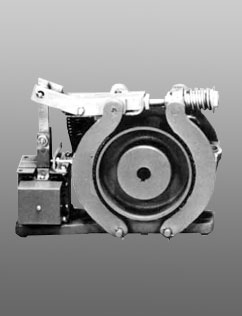

Shoe Brakes—AC and DC, 511 Series
Size S-4 Brake and Wheel
Product Description
Application Description
- Conveyors
- Machine tools
- Printing presses
- Small cranes
- Overhead doors
- Dumb waiters
- Vacuum molding machines
- Vacuum molding machines
Product Selection
- Catalog number plus suffix number for coil
- Example: 511H1193-41
- Wheel
- Part number plus suffix number for bore size
- Example: 511H1150-3
Features
The brake wheel is of relatively large size in relation to the torque developed by the brake. This permits use of a larger brake shoe lining and lower shoe pressures. Low shoe pressure, equally distributed over a large lining area, results in even wear of the friction surfaces and even braking torque. The oversize wheel type construction also permits use of a smaller operating solenoid that requires less current for a given torque rating.
DC Brakes
Standard DC brakes are equipped with shunt coils. The magnet coil circuit on DC brakes consists of two separate windings and a protective switch.
Mounting
Type S brakes are designed and recommended for use and mounting only in the horizontal position. Side or vertical mountings are not recommended because the solenoid loading is altered, resulting in accelerated wear and premature coil failure.
Type S Brakes—Floor Mounting
| Torque—lb-ft | Brake Size |
AC Base Part Number (2)(3) |
For Type S4, S5-1/2, S7, S10 | DC Base Part Number (2)(3) |
Coil Voltage |
Coil Suffix (2) |
||
|---|---|---|---|---|---|---|---|---|
| Continuous | Intermittent (1) | Coil Volts and Hertz |
Coil Suffix (2) |
|||||
| 3 | 3 | S-4 | 511H1194 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H955 | 120 Vdc, 240 Vdc | -97, -98 |
| 10 | 10 | S-4 | 511H1193 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H956 | 121 Vdc, 240 Vdc | -97, -99 |
| - | 15 | S-4 | 511H1192 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H957 | 122 Vdc, 240 Vdc | -97, -100 |
| 25 | 25 | S-5.5 | 511H992 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H994 | 123 Vdc, 240 Vdc | -97, -101 |
| - | 35 | S-5.5 | 511H993 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H995 | 124 Vdc, 240 Vdc | -97, -102 |
| 50 | 50 | S-7 | 511H970 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H975 | 125 Vdc, 240 Vdc | -97, -103 |
| - | 70 | S-7 | 511H971 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H976 | 126 Vdc, 240 Vdc | -97, -104 |
| 85 | 85 | S-7 | 511H1195 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H1197 | 127 Vdc, 240 Vdc | -97, -105 |
| - | 100 | S-7 | 511H1196 | 120V 60 Hz 208V 60 Hz 240V 60 Hz 480V 60 Hz 600V 60 Hz 110V 50 Hz 220V 50 Hz 380V 50 Hz 440V 50 Hz 550V 50 Hz |
-39 -45 -40 -41 -58 -5 -6 -7 -8 -1 |
511H1198 | 128 Vdc, 240 Vdc | -97, -106 |
Notes:
(1) Intermittent duty indicates that the coil can be placed across the line continuously for one hour maximum without excessive heating. It is equivalent to 1/2 time ON and 1/2 time OFF.
(2) Add suffix number for coil voltage to base catalog number.
(3) Does not include wheel.
Brake Selection
The method most generally used to determine required
braking torque is to calculate the full load motor torque by
the following formula:
T = 5252 x hp
rpm
T = Full load motor torque in lb-ft
hp = Motor horsepower
rpm = Speed of shaft on which brake wheel is mounted
The torque rating of the brake selected should be at least equal
to the full load motor torque for the duty considered.
| Wheel Size in Inches | Min. Bore in Inches (mm) | Max. Bore in Inches (mm) | Pilot Bore in Inches (mm) | WK2 | Straight Bore (1) Base (3) Part Number | Tapered Bore (1) Base (3) Part Number |
|---|---|---|---|---|---|---|
| 4 | 0.50 (12.7) | 1.38 (35.1) | 0.50 (12.7) | 0.06 | 511H1150 | 511H1151 |
| 5.5 | 0.75 (19.1) | 2.00 (50.8) | 0.75 (19.1) | 0.26 | 511H1160 | 511H1161 |
| 7 | 1.00 (25.4) | 2.25 (57.2) | 0.75 (19.1) | 0.77 | 511H1170 | 511H1171 |
Brake Wheel Suffix Numbers
| Bore Size Suffix Number—Add to Base Catalog Number | |||||
|---|---|---|---|---|---|
| Bore (4) in Inches (mm) |
Keyway in Inches |
Suffix Number |
Bore (4) in Inches (mm) |
Keyway in Inches (mm) |
Suffix Number |
| Standard Bore Sizes | |||||
| Pilot bore | None | -1 | 1.625 (41.28) | 3/38 x 3/16 | -9 |
| 0.625 (15.88) | 3/16 x 3/32 | -2 | 1.875 (47.63) | 1/2 x 1/4 | -10 |
| 0.750 (19.05) | 3/16 x 3/32 | -3 | 2.125 (53.98) | 1/2 x 1/4 | -11 |
| 0.875 (22.23) | 3/16 x 3/32 | -4 | 2.375 (60.33) | 5/8 x 5/16 | -12 |
| 1.000 (25.40) | 1/4 x 1/8 | -5 | 2.500 (63.50) | 5/8 x 5/16 | -63 |
| 1.125 (28.58) | 1/4 x 1/8 | -6 | 2.625 (66.68) | 5/8 x 5/16 | -13 |
| 1.250 (31.75) | 1/4 x 1/8 | -7 | 2.750 (69.85) | 5/8 x 5/16 | -18 |
| 1.375 (34.93) | 5/16 x 5/32 | -8 | 2.875 (73.03) | 3/4 x 3/8 | -14 |
| Non-Standard Bore Sizes | |||||
| 0.500 (12.70) | 1/8 x 1/16 | -50 | 1.687 (42.85) | 3/8 x 3/16 | -58 |
| 0.750 (19.05) | 1/4 x 1/8 | -51 | 1.750 (44.45) | 3/8 x 3/16 | -59 |
| 0.875 (22.23) | 1/4 x 1/8 | -52 | 1.937 (49.20) | 1/2 x 1/4 | -60 |
| 1.000 (25.40) | 5/16 x 5/32 | -53 | 2.000 (50.80) | 1/2 x 1/4 | -61 |
| 1.187 (30.15) | 1/4 x 1/8 | -54 | 2.250 (57.15) | 1/2 x 1/4 | -62 |
| 1.375 (34.93) | 3/8 x 3/16 | -55 | - | - | - |
| 1.437 (36.50) | 3/8 x 3/16 | -56 | - | - | - |
| 1.500 (38.10) | 3/8 x 3/16 | -57 | - | - | - |
Notes:
(1) Bore tolerance: +0.000–0.001 in.
(2) Taper is at rate of 1.25 in per ft on diameter. In bore size selection, use diameter of tapered shaft. Bore tolerance: +0.000–0.005 in.
(3) Add suffix number for bore size to base catalog number.
(4) Bore size selected must be between minimum and maximum dimensions listed in brake wheel selection table.
