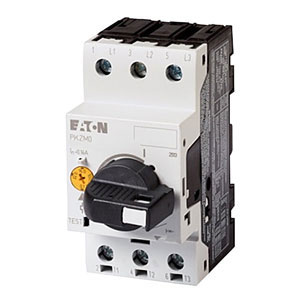

Lockable Knob |
| Adjustable Thermal Range | UL/CSA 3-Phase HP Ratings | EATON | |||
|---|---|---|---|---|---|
| 200V HP | 230V HP | 460V HP | 575V HP | ||
|
0.1 - 0.16 |
In this range, select motor protector in accordance with the motor nameplate f load current | XTPRP16BC1 | |||
|
0.16 - 0.25 |
XTPRP25BC1 | ||||
|
0.25 - 0.4 |
XTPR0P4BC1 | ||||
|
0.4 - 0.63 |
XTPRP63BC1 | ||||
|
0.63 - 1 |
.5 | .5 | XTPR001BC1 | ||
|
1 - 1.6 |
.75 | 1 | XTPR1P6BC1 | ||
|
1.6 - 2.5 |
.5 | .5 | 1 | 1.5 | XTPR2P5BC1 |
|
2.5 - 4 |
1 | 1 | 2 | 3 | XTPR004BC1 |
|
4 - 6.3 |
1.5 | 1.5 | 3 | 5 | XTPR6P3BC1 |
|
6.3 - 10 |
3 | 3 | 7.5 | 10 | XTPR010BC1 |
|
10- 16 |
3 | 5 | 10 | 10 | XTPR016BC1 |
|
16- 20 |
5 | 5 | 10 | 15 | XTPR020BC1 |
|
20- 25 |
5 | 7 .5 | 15 | 20 | XTPR025BC1 |
|
25- 32 |
XTPR032BC1 | ||||

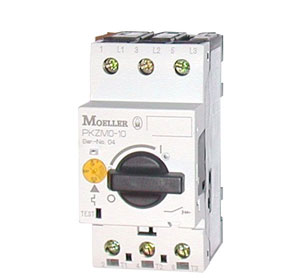

Standard Knob |
| Adjustable Thermal Range | UL/CSA 3-Phase HP Ratings | EATON | |||
|---|---|---|---|---|---|
| 200V HP | 230V HP | 460V HP | 575V HP | ||
|
0.1 - 0.16 |
In this range, select motor protector in accordance with the motor nameplate f load current | XTPRP16BC1NL | |||
|
0.16 - 0.25 |
XTPRP25BC1NL | ||||
|
0.25 - 0.4 |
XTPRP4BC1NL | ||||
|
0.4 - 0.63 |
XTPRP63BC1NL | ||||
|
0.63 - 1 |
.5 | .5 | XTPR001BC1NL | ||
|
1 - 1.6 |
.75 | 1 | XTPR1P6BC1NL | ||
|
1.6 - 2.5 |
.5 | .5 | 1 | 1.5 | XTPR2P5BC1NL |
|
2.5 - 4 |
1 | 1 | 2 | 3 | XTPR004BC1NL |
|
4 - 6.3 |
1.5 | 1.5 | 3 | 5 | XTPR6P3BC1NL |
|
6.3 - 10 |
3 | 3 | 7.5 | 10 | XTPR010BC1NL |
|
8 - 12 |
XTPR012BC1NL | ||||
|
10- 16 |
3 | 5 | 10 | 10 | XTPR016BC1NL |
|
16- 20 |
5 | 5 | 10 | 15 | XTPR020BC1NL |
|
20- 25 |
5 | 7 .5 | 15 | 20 | XTPR025BC1NL |
|
25- 32 |
XTPR032BC1NL | ||||

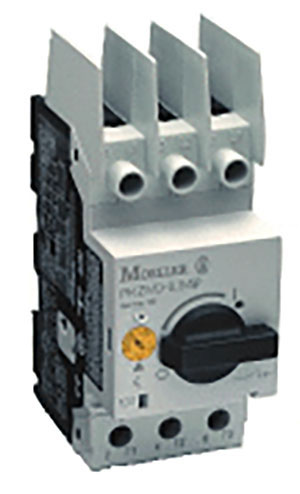

Self Protected Combination Motor Controllers |
| Adjustable Thermal Range | UL/CSA 3-Phase HP Ratings | EATON |
ADD
⇒ |
EATON | |||
|---|---|---|---|---|---|---|---|
| 200V HP | 230V HP | 460V HP | 575V HP | ||||
|
0.1 - 0.16 |
In this range, select motor protector in accordance with the motor nameplate f load current | XTPRP16BC1 | + | XTPAXLSA | |||
|
0.16 - 0.25 |
XTPRP25BC1 | ||||||
|
0.25 - 0.4 |
XTPR0P4BC1 | ||||||
|
0.4 - 0.63 |
XTPRP63BC1 | ||||||
|
0.63 - 1 |
.5 | .5 | XTPR001BC1 | ||||
|
1 - 1.6 |
.75 | 1 | XTPRP6BC1 | ||||
|
1.6 - 2.5 |
.5 | .5 | 1 | 1.5 | XTPR2P5BC1 | ||
|
2.5 - 4 |
1 | 1 | 2 | 3 | XTPR004BC1 | ||
|
4 - 6.3 |
1.5 | 1.5 | 3 | 5 | XTPR6P3BC1 | ||
|
6.3 - 10 |
3 | 3 | 7.5 | 10 | XTPR010BC1 | ||
|
10- 16 |
3 | 5 | 10 | 10 | XTPR016BC1 | ||
D - Frame |
| Short-circuit Release | Adjustable Thermal Range (A) | EATON |
|---|---|---|
|
224 |
10 - 16 | XTPR016DC1NL |
|
359 |
16 - 25 | XTPR025DC1NL |
|
448 |
25 - 32 | XTPR032DC1NL |
|
560 |
32 - 40 | XTPR040DC1NL |
|
700 |
40 - 50 | XTPR050DC1NL |
|
812 |
50 - 58 | XTPR058DC1NL |
|
882 |
55 - 63 | XTPT032BC1NL |
