Eaton Molded Case Circuit Breaker Series-C, K-Frame

K-Frame (70–400 Amperes)

Product Description

  • K-Frame (70–400 Amperes)
  • K-Frame circuit breakers are available as individual components (frame, trip unit, terminals), or factory assembled complete breakers
  • K-Frame circuit breakers with non-interchangeable trip units are suitable for reverse feed use

Types KD, HKD and KDC Thermal-Magnetic Circuit Breakers with Interchangeable Trip Units

Maximum
Continuous
Ampere Rating
at 40°C 		Standard Interrupting
Capacity
600 Vac Rated
35 kAIC at 480 Vac
Factory Assembled
Circuit Consisting of Frame,
Trip Unit and Terminals (1)
Part Number 		High Interrupting
Capacity
600 Vac Rated
65 kAIC at 480 Vac
Factory Assembled
Circuit Consisting of Frame,
Trip Unit and Terminals (1)
Part Number 		Ultra High
Interrupting Capacity
Current Limiting
600 Vac Rated
100 kAIC at 480 Vac
Factory Assembled
Circuit Consisting
of Frame, Trip Unit
and Terminals (1)
Part Number 		Thermal-Magnetic
Trip Unit
Only (1)
For Use with Standard
or High or Ultra High
Interrupting Frames
Part Number 		Standard
Terminals Only

PartNumber
Two-Pole
100 KD2100 HKD2100 KDC2100 KT2100T TA300K (2)
125 KD2125 HKD2125 KDC2125 KT2125T TA300K (2)
150 KD2150 HKD2150 KDC2150 KT2150T TA300K (2)
175 KD2175 HKD2175 KDC2175 KT2175T TA300K (2)
200 KD2200 HKD2200 KDC2200 KT2200T TA300K (2)
225 KD2225 HKD2225 KDC2225 KT2225T TA300K (2)
250 KD2250 HKD2250 KDC2250 KT2250T TA350K (2)
300 KD2300 HKD2300 KDC2300 KT2300T TA350K (2)
350 KD2350 HKD2350 KDC2350 KT2350T TA350K (2)
400 KD2400 HKD2400 KDC2400 KT2400T 2TA400K (3)
Three-Pole
100 KD3100 HKD3100 KDC3100 KT3100T TA300K (2)
125 KD3125 HKD3125 KDC3125 KT3125T TA300K (2)
150 KD3150 HKD3150 KDC3150 KT3150T TA300K (2)
175 KD3175 HKD3175 KDC3175 KT3175T TA300K (2)
200 KD3200 HKD3200 KDC3200 KT3200T TA300K (2)
225 KD3225 HKD3225 KDC3225 KT3225T TA300K (2)
250 KD3250 HKD3250 KDC3250 KT3250T TA350K (2)
300 KD3300 HKD3300 KDC3300 KT3300T TA350K (2)
350 KD3350 HKD3350 KDC3350 KT3350T TA350K (2)
400 KD3400 HKD3400 KDC3400 KT3400T 3TA400K (3)
Four-Pole
100 KD4100 HKD4100 KDC4100 KT4100T TA300K (2)
125 KD4125 HKD4125 KDC4125 KT4125T TA300K (2)
175 KD4175 HKD4175 KDC4175 KT4175T TA300K (2)
200 KD4200 HKD4200 KDC4200 KT4200T TA300K (2)
225 KD4225 HKD4225 KDC4225 KT4225T TA300K (2)
250 KD4250 HKD4250 KDC4250 KT4250T TA350K (2)
300 KD4300 HKD4300 KDC4300 KT4300T TA350K (2)
350 KD4350 HKD4350 KDC4350 KT4350T TA350K (2)
400 KD4400 HKD4400 KDC4400 KT4400T 4TA400K (3)

NOTES:
(1) Magnetic trip adjustable 5–10 times continuous ampere rating.
(2) Individually packed.
(3) 2TA400K, 3TA400K and 4TA400K terminal kits contain one terminal for each pole and one terminal cover.

Types KD, HKD and KDC Thermal-Magnetic Circuit Breakers—Frame Only

Standard Interrupting Capacity
600 Vac Rated
35 kAIC at 480 Vac
Part Number 		High Interrupting Capacity
600 Vac Rated
65 kAIC at 480 Vac
Part Number 		Ultra High Interrupting
Capacity Current Limiting
600 Vac Rated
100 kAIC at 480 Vac
Part Number
Two-Pole
KD2400F HKD2400F KDC2400F
Three-Pole
KD3400F HKD3400F KDC3400F
Four-Pole
KD4400F HKD4400F KDC4400F

Types KD, HKD and KDC Electronic Circuit Breakers with Interchangeable 310+ Trip Units—Three-Pole (1)

Max.
Cont.
Ampere
Rating
at 40°C 		Standard
Interrupting
Capacity
600 Vac
Rated
35 kAIC at
480 Vac 		High
Interrupting
Capacity
600 Vac
Rated
65 kAIC at
480 Vac 		Ultra High
Interrupting
Capacity
Current
Limiting
600 Vac
Rated
100 kAIC
at 480 Vac 		Digitrip RMS 310+ Trip Unit Only (2) Adjustable
Short Time
Pickup with
I 2 t Short
Delay and
Ground Fault
Protection 		Independently
Adjustable
Short Time
Pickup and
Delay and
Ground Fault
Protection
Standard

Adjustable
Short Time
Pickup with
I 2 t Short
Delay Ramp 		Options

Independently
Adjustable
Short Time
Pickup and
Delay
125 KD3400F HKD3400F KDC3400F KES3125LS KES3125LSI KES3125LSG KES3125LSIG
250 KD3400F HKD3400F KDC3400F KES3250LS KES3250LSI KES3250LSG KES3250LSIG
400 KD3400F HKD3400F KDC3400F KES3400LS KES3400LSI KES3400LSG KES3400LSIG

Types KD, HKD and KDC Electronic Circuit Breakers with Interchangeable 310+ Trip Units—Four-Pole (3)(4)

Max.
Cont.
Ampere
Rating
at 40°C 		Standard
Interrupting
Capacity
600 Vac
Rated
35 kAIC at
480 Vac 		High
Interrupting
Capacity
600 Vac
Rated
65 kAIC at
480 Vac 		Ultra High
Interrupting
Capacity
Current
Limiting
600 Vac
Rated
100 kAIC
at 480 Vac 		Digitrip RMS 310+ Trip Unit Only (2) Adjustable
Short Time
Pickup with
I 2 t Short
Delay and
Ground Fault
Protection 		Independently
Adjustable
Short Time
Pickup and
Delay and
Ground Fault
Protection
Adjustable
Short Time
Pickup with
I 2 t Short
Delay Ramp 		Independently
Adjustable
Short Time
Pickup and
Delay
125 KD4400F HKD4400F KDC4400F KES4125LS KES4125LSI — —
250 KD4400F HKD4400F KDC4400F KES4250LS KES4250LSI — —
400 KD4400F HKD4400F KDC4400F KES4400LS KES4400LSI — —

NOTES:
(1) Three-pole KES trip units are for use in three-pole frames only.
(2) For AC use only.
(3) Trip unit includes protected neutral pole. Use corresponding three-pole trip unit if protected neutral pole is not required.
(4) Fully rated neutral pole protection is standard. For 50% rated protection on neutral pole, add Suffix E to four-pole trip unit catalog number.

Type KDB with Digitrip 310+ Non-Interchangeable Trip Unit Suitable for Reverse Feed

Maximum
Continuous
Ampere Rating
at 40°C 		Number
of
Poles 		Circuit Breaker Frame Including Digitrip RMS 310+ Electronic Tip Unit Less
Terminals—Catalog Number
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time
(I2t Response) or Adjustable Short Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous
G –Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
LS LSI LSG LSIG
Short Time Range 2–8 x I n 2–8 x I n 2–8 x I n 2–8 x I n
Short Time Delay — I–300 ms — 0–300 ms
Ground Fault Pickup — — Varies by frame Varies by frame
Ground Fault Delay — — 0–500 ms 0–500 ms
125 3 KDB3125FT33W KDB3125FT32W KDB3125FT35W KDB3125FT36W
250 3 KDB3250FT33W KDB3250FT32W KDB3250FT35W KDB3250FT36W
400 3 KDB3400FT33W KDB3400FT32W KDB3400FT35W KDB3400FT36W

Type HKDB with Digitrip 310+ Non-Interchangeable Trip Unit Suitable for Reverse Feed

Maximum
Continuous
Ampere Rating
at 40°C 		Number
of
Poles 		Circuit Breaker Frame Including Digitrip RMS 310+ Electronic Tip Unit Less
Terminals—Catalog Number
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time
(I2t Response) or Adjustable Short Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous
G –Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
LS LSI LSG LSIG
Short Time Range 2–8 x I n 2–8 x I n 2–8 x I n 2–8 x I n
Short Time Delay — I–300 ms — 0–300 ms
Ground Fault Pickup — — Varies by frame Varies by frame
Ground Fault Delay — — 0–500 ms 0–500 ms
125 3 HKDB3125FT33W HKDB3125FT32W HKDB3125FT35W HKDB3125FT36W
250 3 HKDB3250FT33W HKDB3250FT32W HKDB3250FT35W HKDB3250FT36W
400 3 HKDB3400FT33W HKDB3400FT32W HKDB3400FT35W HKDB3400FT36W

Types DK and KDB Thermal-Magnetic Circuit Breakers with Non-Interchangeable Trip Units

Maximum
Continuous
Ampere
Rating
at 40°C 		240 Vac Rated,
250 Vdc
Complete Circuit Breaker
Without Line and
Load Terminals
With Line
Terminals Only
With Standard Line
and Load Terminals Only
600 Vac Rated,
250 Vdc Complete
Circuit Breaker
Without Line and
Load Terminals
With Standard Line
and Load Terminals
Two-Pole
100 — — — KDB2100W KDB2100
125 — — — KDB2125W KDB2125
150 — — — KDB2150W KDB2150
175 — — — KDB2175W KDB2175
200 — — — KDB2200W KDB2200
225 — — — KDB2225W KDB2225
250 DK2250W DK2250Y DK2250 KDB2250W KDB2250
300 DK2300W DK2300Y DK2300 KDB2300W KDB2300
350 DK2350W DK2350Y DK2350 KDB2350W KDB2350
400 DK2400W DK2400Y DK2400 KDB2400W KDB2400
Three-Pole
100 — — — KDB3100W KDB3100
125 — — — KDB3125W KDB3125
150 — — — KDB3150W KDB3150
175 — — — KDB3175W KDB3175
200 — — — KDB3200W KDB3200
225 — — — KDB3225W KDB3225
250 DK3250W DK3250Y DK3250 KDB3250W KDB3250
300 DK3300W DK3300Y DK3300 KDB3300W KDB3300
350 DK3350W DK3350Y DK3350 KDB3350W KDB3350
400 DK3400W DK3400Y DK3400 KDB3400W KDB3400

Molded Case Switches

Eaton’s molded case switches are used as compact switches in applications requiring high current switching capabilities. Molded case switches are constructed of circuit breaker components and are of the high instantaneous automatic type. Molded case switches are listed in accordance with Underwriters Laboratories Standard UL 489.

Maximum
Continuous
Ampere
Rating
at 40°C 		240 Vac Maximum, 250 Vdc 600 Vac Maximum, 250 Vdc 600 Vac Maximum, 250 Vdc
Complete Circuit Breaker
with Standard Line and
Load Terminals 		Complete Circuit Breaker
with Standard Line and
Load Terminals 		Complete Circuit Breaker
with Standard Line and
Load Terminals. Suitable for
Reverse Feed Use
Two-Pole
400 DK2400K KD2400K KDB2400K
— HKD2400K HKDB2400K
Three-Pole
400 DK3400K KD3400K KDB3400K
— HKD3400K HKDB3400K
Four-Pole
400 — KD4400K KDB4400K
— HKD4400K HKDB4400K

NOTES:
Molded case switches may open above 4000 amperes.

100% Rated Types CKD and CHKD Electronic Circuit Breakers—Three-Pole

The NEC allows the breaker to be rated at 100% of its frame size in an assembly, provided that 90°C wire is applied at the 75°C ampacity. All 100% rated circuit breakers have electronic trip units.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only Digitrip RMS 310+ Trip Unit Only Adjustable
Short Time
Pickup with
I 2 t Short
Delay and
Ground Fault
Protection 		Independently
Adjustable
Short Time
Pickup and
Delay and
Ground Fault
Protection
Standard
Interrupting
Capacity

35 kAIC at
480 Vac 		High
Interrupting
Capacity

65 kAIC at
480 Vac 		Standard

Adjustable
Short Time
Pickup with
I 2 t Short
Delay Ramp 		Options

Independently
Adjustable
Short Time
Pickup and
Delay
125 CKD3400F CHKD3400F KES3125LS KES3125LSI KES3125LSG KES3125LSIG
250 CKD3400F CHKD3400F KES3250LS KES3250LSI KES3250LSG KES3250LSIG
400 CKD3400F CHKD3400F KES3400LS KES3400LSI KES3400LSG KES3400LSIG

Digitrip OPTIM 550 Electronic Circuit Breakers with Interchangeable Rating Plug

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (Ir) with Adjustable Long Delay Time (I 2 t or I 4 t Response) (1)
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time (I 2 t or Flat Response)
A – Adjustable Ground Fault Alarm with Adjustable Ground Fault Time (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
LSI LSIG LSIA Ampere
Rating 		Fixed Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 35 kAIC at 480 Vac
125 KD3125T52W KD3125T56W KD3125T57W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 KD3250T52W KD3250T56W KD3250T57W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 KD3400T52W KD3400T56W KD3400T57W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400

NOTES:
(1) Long delay I 4 t response selection limits short delay time to flat response.
(2) Zone interlocking, PowerNet, or both features can be added at the factory by adding suffixes ZG, PN or ZGP respectively to above part number.

Digitrip OPTIM 550 Electronic Circuit Breakers with Interchangeable Rating Plug

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (Ir) with Adjustable Long Delay Time (I 2 t or I 4 t Response) (1)
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time (I 2 t or Flat Response)
A – Adjustable Ground Fault Alarm with Adjustable Ground Fault Time (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
OPTIM 550 (2)
LSI 		LSIG LSIA Ampere
Rating 		Fixed Rating
Plug
Three-Pole High Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
125 HKD3125T52W HKD3125T56W HKD3125T57W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 HKD3250T52W HKD3250T56W HKD3250T57W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 HKD3400T52W HKD3400T56W HKD3400T57W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400
Three-Pole Ultra High Interrupting Capacity Current Limiting 600 Vac Rated 100 kAIC at 480 Vac
125 KDC3125T52W KDC3125T56W KDC3125T57W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 KDC3250T52W KDC3250T56W KDC3250T57W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 KDC3400T52W KDC3400T56W KDC3400T57W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400

NOTES:
(1) Long delay I 4 t response selection limits short delay time to flat response.
(2) Zone interlocking, PowerNet, or both features can be added at the factory by adding suffixes ZG, PN or ZGP respectively to above part number.

Digitrip OPTIM 1050 Electronic Circuit Breakers with Interchangeable Rating Plug

Order as individual components: breaker frame (which includes trip unit), rating plug, terminals.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (Ir) with Adjustable Long Delay Time (I 2 t or I 4 t Response) (1)
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time (I 2 t or Flat Response)
A – Adjustable Ground Fault Alarm with Adjustable Ground Fault Time (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
OPTIM 550 (2)
LSIG 		LSIA Ampere
Rating 		Fixed Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 35 kAIC at 480 Vac
125 KD3125T106W KD3125T107W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 KD3250T106W KD3250T107W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 KD3400T106W KD3400T107W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400
Three-Pole High Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
125 HKD3125T106W HKD3125T107W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 HKD3250T106W HKD3250T107W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 HKD3400T106W HKD3400T107W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400
Three-Pole Ultra High Interrupting Capacity Current Limiting 600 Vac Rated 100 kAIC at 480 Vac
125 KDC3125T106W KDC3125T107W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 KDC3250T106W KDC3250T107W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 KDC3400T106W KDC3400T107W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400

NOTES:
(1) Long delay I 4 t response selection limits short delay time to flat response.
(2) Factory sealed.

100% Rated Digitrip OPTIM 550 Electronic Circuit Breakers with Interchangeable Rating Plug

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (Ir) with Adjustable Long Delay Time (I 2 t or I 4 t Response) (1)
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time (I 2 t or Flat Response)
A – Adjustable Ground Fault Alarm with Adjustable Ground Fault Time (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
OPTIM 550 (2)
LSI 		LSIG LSIA Ampere
Rating 		Fixed Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 35 kAIC at 480 Vac
125 CKD3125T52W CKD3125T56W CKD3125T57W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 CKD3250T52W CKD3250T56W CKD3250T57W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 CKD3400T52W CKD3400T56W CKD3400T57W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400
Three-Pole High Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
125 CHKD3125T52W CHKD3125T56W CHKD3125T57W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 CHKD3250T52W CHKD3250T56W CHKD3250T57W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 CHKD3400T52W CHKD3400T56W CHKD3400T57W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400

NOTES:
(1) Long delay I 4 t response selection limits short delay time to flat response.
(2) Zone interlocking, PowerNet, or both features can be added at the factory by adding suffixes ZG, PN or ZGP respectively to above part number.

100% Rated Digitrip OPTIM 1050 Electronic Circuit Breakers with Interchangeable Rating Plug

Order as individual components: breaker frame (which includes trip unit), rating plug, terminals.

Maximum
Continuous
Ampere
Rating
at 40°C 		Circuit Breaker Frame Only
L – Adjustable Long Delay Pickup (Ir) with Adjustable Long Delay Time (I 2 t or I 4 t Response) (1)
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time (I 2 t or Flat Response)
A – Adjustable Ground Fault Alarm with Adjustable Ground Fault Time (I 2 t or Flat Response) 		Digitrip OPTIM Rating Plug Only
OPTIM 550 (2)
LSIG 		LSIA Ampere
Rating 		Fixed Rating
Plug
Three-Pole Standard Interrupting Capacity 600 Vac Rated 35 kAIC at 480 Vac
125 CKD3125T106W CKD3125T107W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 CKD3250T106W CKD3250T107W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 CKD3400T106W CKD3400T107W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400
Three-Pole High Interrupting Capacity 600 Vac Rated 65 kAIC at 480 Vac
125 CHKD3125T106W CHKD3125T107W 70 ORPK125A70
90 ORPK125A90
100 ORPK125A100
110 ORPK125A110
125 ORPK125A125
250 CHKD3250T106W CHKD3250T107W 125 ORPK025A125
150 ORPK025A150
175 ORPK025A175
200 ORPK025A200
225 ORPK025A225
250 ORPK025A250
400 CHKD3400T106W CHKD3400T107W 200 ORPK40A200
225 ORPK40A225
250 ORPK40A250
300 ORPK40A300
350 ORPK40A350
400 ORPK40A400

NOTES:
(1) Long delay I 4 t response selection limits short delay time to flat response.
(2) Factory sealed.

Accessories Selection Guide and Ordering Guide

Line and Load Terminals

Eaton’s line and load terminals provide wire connecting capabilities for specific ranges of continuous current ratings and wire types. All terminals comply with Underwriters Laboratories Standards UL 486A and UL 486B and CSA Standard C22.2 No. 65, or Electrical Bulletin 1165. Unless otherwise specified, K-Frame circuit breaker line and load terminals are shipped separately for field installation.

Ordering Information

K-Frame circuit breakers use Cu/AI terminals as standard. When optional copper or Cu/ AI terminals are required, order by catalog number. Specify if factory installation is required.

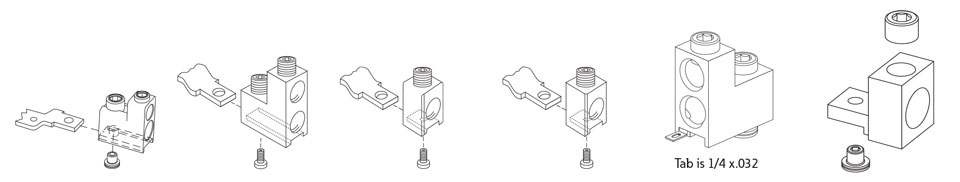

TA401K TA400K, T400K TA350K, T350K TA300K, T300K T400KCW, TA400KCW,
TA401KCW 		TA402K, T402K

Line and Load Terminals

Maximum Terminal
Breaker Body
Amperes Material 		Wire
Type 		AWG Wire
Range/No.
Conductors 		Metric
Wire Range
mm 2 		Terminal Terminals with
Control Wire
Termination
Standard Cu/AI Pressure Terminals
225 Aluminum Cu/AI 3—350 (1) 35—185 TA300K (1) —
400 Aluminum Cu/AI 250—500 (1) 120—240 TA350K (1) —
400 Aluminum Cu/AI 3/0—250 (2) 95—120 2TA400K (2)(3) 2TA400KCW (2)(3)
400 Aluminum Cu/AI 3/0—250 (2) 95—120 3TA400K (2)(4) 3TA400KCW (2)(4)
400 Aluminum Cu/AI 3/0—250 (2) 95—120 4TA400K (5)(6) 4TA400KCW (5)(6)
Optional Copper and Cu/AI Pressure Type Terminals
225 Copper Cu 3—350 (1) 35—185 T300K (1) —
400 Copper Cu 250—500 (1) 120—240 T350K (1) —
400 Copper Cu 3/0—250 (2) 95—120 2T400K (3) 2T400KCW (2)(3)
3T400K (4) 3T400KCW (2)(4)
4T400K (5) 4T400KCW (5)(6)
400 Aluminum Cu/AI 2/0—250 (2) or
2/0—500 (1) 		70—120 2TA401K (2)(3) 2TA401KCW (2)(3)
70—240 3TA401K (2)(4) 3TA401KCW (2)(4)
70—240 4TA401K (5)(6) 4TA401KCW (5)(6)
400 Aluminum Cu/AI 500—750 (1) 300—400 2TA402K (2)(3) —
3TA402K (2)(4) —
4TA402K (5)(6) —
400 Copper Cu 500—750 (1) — 2T402K (2)(3) —
3T402K (2)(4) —
4T402K (5)(6) —

NOTES:
(1) Individually packed.
(2) Terminal kits contain one terminal for each pole and one terminal cover.
(3) Two-pole kit.
(4) Three-pole kit. (5) Three-pole kit.
(6) Terminal kits contain one terminal for each pole and three interphase barriers.

© 2025 KMParts - All Rights Reserved | Privacy Policy
