Moeller

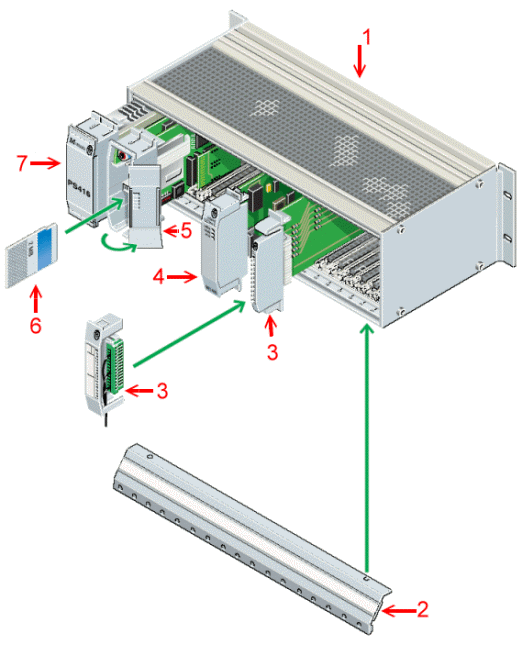

Modular Programmable Logic Controller (PLC) Overview
| 1. | Rack PS416-BGT-xxx |
| 2. | Potential Equalization Bar |
| 3. | Standard Cards PS416-INP-xxx - Digital Input Cards PS416-OUT-xxx Digital Output Cards PS416-AIN-400 Analog Input Card PS416-AIO-400 Analog Input/Output Card PS416-CNT-200 Digital Counter Card |
| 4. | Communication Cards PS416-NET-220 INTERBUS Card PS416-NET-230 PROFIBUS-FMS Card PS416-NET-400 Suconet K Card PS416-NET-440 PROFIBUS-DP Card PS416-NET-441 PROFIBUS-DP Card PS416-COM-200 Communication Card PS416-MOD-200 MODBUS/JBUS Communication Card |
| 5. |
CPU Card
PS416-CPU-xxx |
| 6. | Memory Card |
| 7. |
Power Supply Card
PS416-POW-xxx |
