Eaton / Moeller Series
125A, 3P, main switch, emergency off function, rear mounting, lockable red rotary handle, CE/UL/CSA/IEC

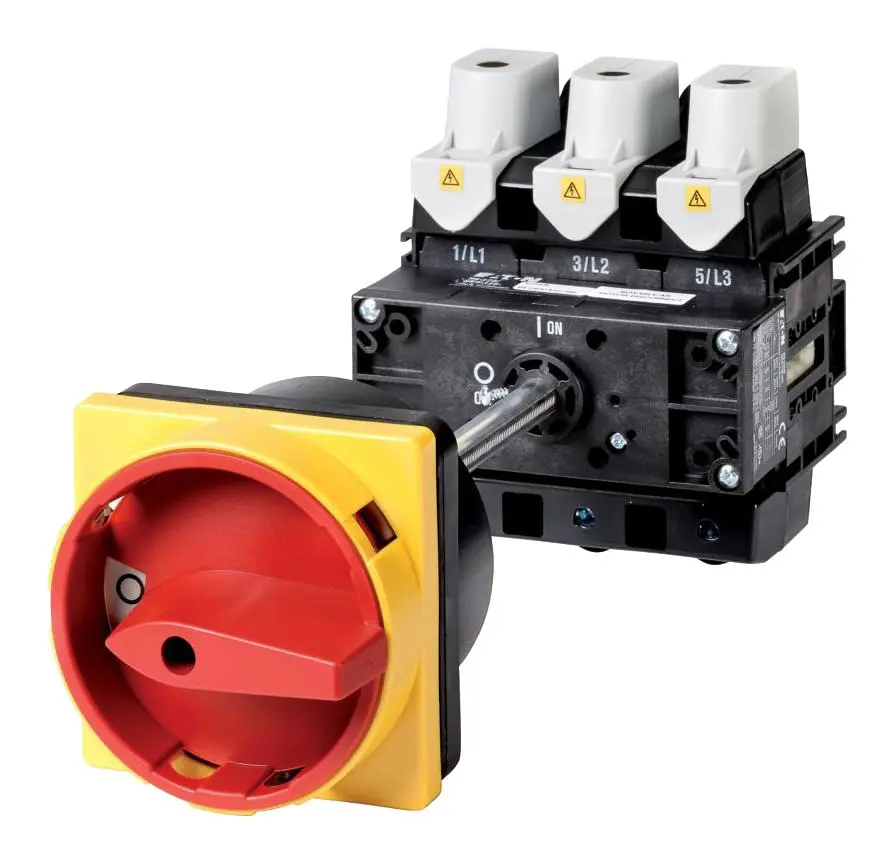

The Eaton Moeller P5-125/V/SVB is a 3-pole main switch rated at 125 A with an integrated emergency switching off function. Designed for rear mounting, it features a red rotary handle with a yellow locking ring and can be locked in the 0 (Off) position to ensure safe isolation during maintenance and servicing. The switch supports AC and DC applications up to 690 V, provides high short-circuit withstand capability, and is approved for use as a motor disconnect in branch circuits. With IP65 front protection, NEMA 12 rating, and compliance with IEC, EN, UL, CSA, and VDE standards, it is suitable for demanding industrial environments.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Series | P5 |
| Model | P5-125/V/SVB |
| Catalog Number | 280914 |
| Product Type | Main switch / Switch disconnector |
| Rated Current (Iu) | 125 A |
| Number of Poles | 3 |
| Mounting Method | Rear mounting |
| Stop Function | Emergency switching off function |
| Actuator Type | Door coupling rotary drive |
| Actuator Color | Red (with yellow locking ring) |
| Locking Facility | Lockable in the 0 (Off) position |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 8000 V AC |
| Rated Short-Time Withstand Current (Icw) | 2.5 kA (1 s) |
| Rated Conditional Short-Circuit Current (Iq) | 30 kA |
| Degree of Protection (Front) | IP65 |
| Degree of Protection (NEMA) | NEMA 12 |
| Overvoltage Category / Pollution Degree | III / 3 |
| Ambient Operating Temperature | -25 °C to +50 °C |
| Motor Rating (AC-23A, 400–415 V) | 45 kW |
| Certifications | CE, UL 508, CSA, IEC/EN 60947-3, VDE |
