Eaton / Moeller Series
125A, 3P, main switch, emergency off function, flush mounting, lockable red rotary handle, CE/UL/CSA/IEC

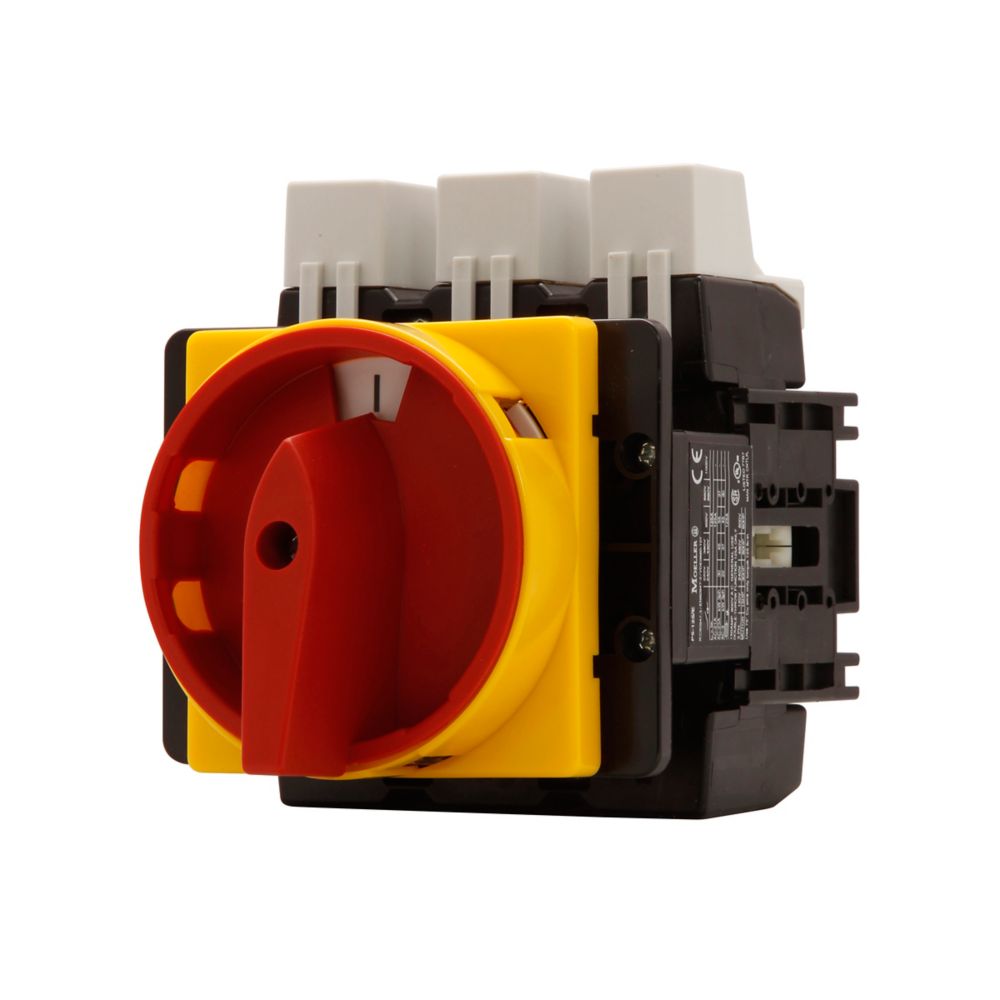

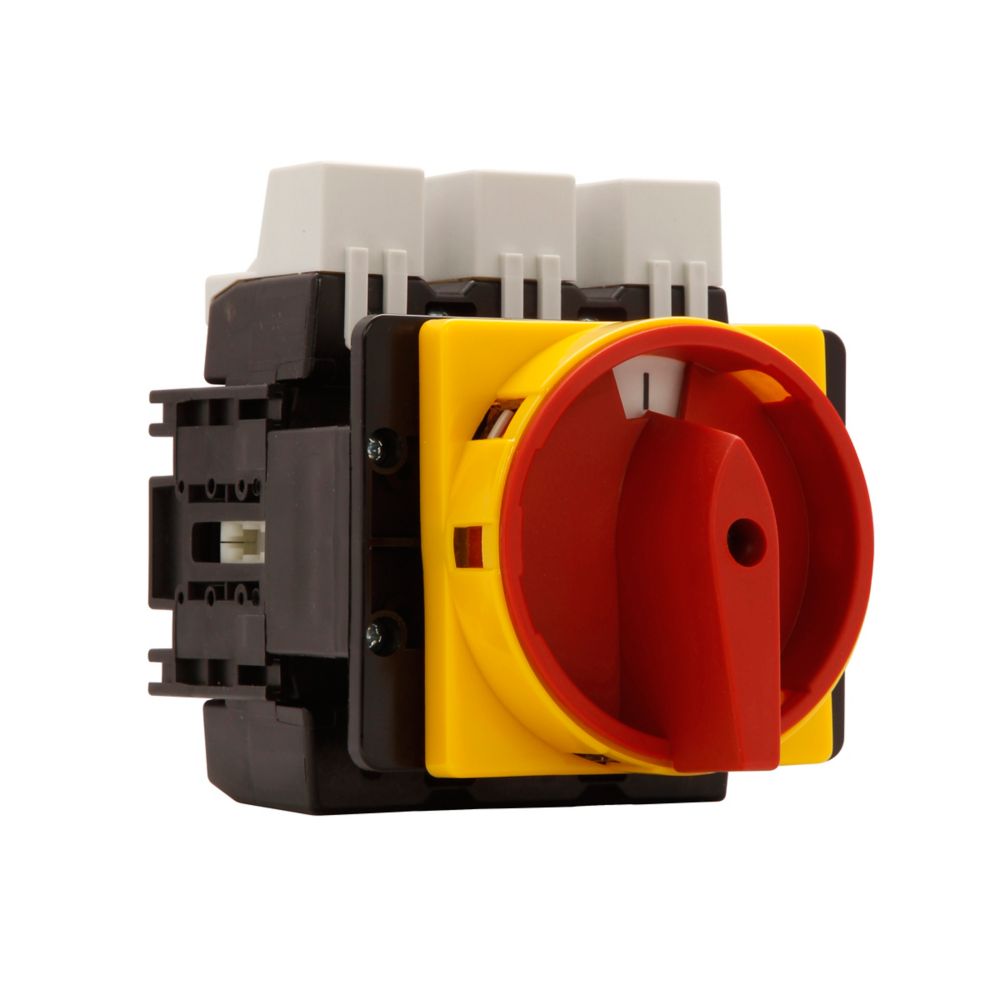

The Eaton Moeller P5-125/EA/SVB is a 3-pole main switch rated at 125 A with an integrated emergency switching off function. It is designed for flush mounting and features a red rotary handle with a yellow locking ring, lockable in the 0 (Off) position for enhanced safety during maintenance and service operations. The switch supports AC and DC applications up to 690 V, offers high short-circuit withstand capability, and is suitable for use as a motor disconnect in branch circuits. With IP65 front protection, NEMA 12 rating, and compliance with IEC, EN, UL, CSA, and VDE standards, it is well suited for demanding industrial environments.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Series | P5 |
| Model | P5-125/EA/SVB |
| Catalog Number | 280898 |
| Product Type | Main switch / Switch disconnector |
| Rated Current (Iu) | 125 A |
| Number of Poles | 3 |
| Mounting Method | Flush mounting |
| Stop Function | Emergency switching off function |
| Actuator Type | Door coupling rotary drive |
| Actuator Color | Red (with yellow locking ring) |
| Locking Facility | Lockable in the 0 (Off) position |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 8000 V AC |
| Rated Short-Time Withstand Current (Icw) | 2.5 kA (1 s) |
| Rated Conditional Short-Circuit Current (Iq) | 30 kA |
| Degree of Protection (Front) | IP65 |
| Degree of Protection (NEMA) | NEMA 12 |
| Overvoltage Category / Pollution Degree | III / 3 |
| Ambient Operating Temperature | -25 °C to +50 °C |
| Motor Rating (AC-23A, 400–415 V) | 45 kW |
| Certifications | CE, UL 508, CSA, IEC/EN 60947-3, VDE |
