Eaton / Moeller Series

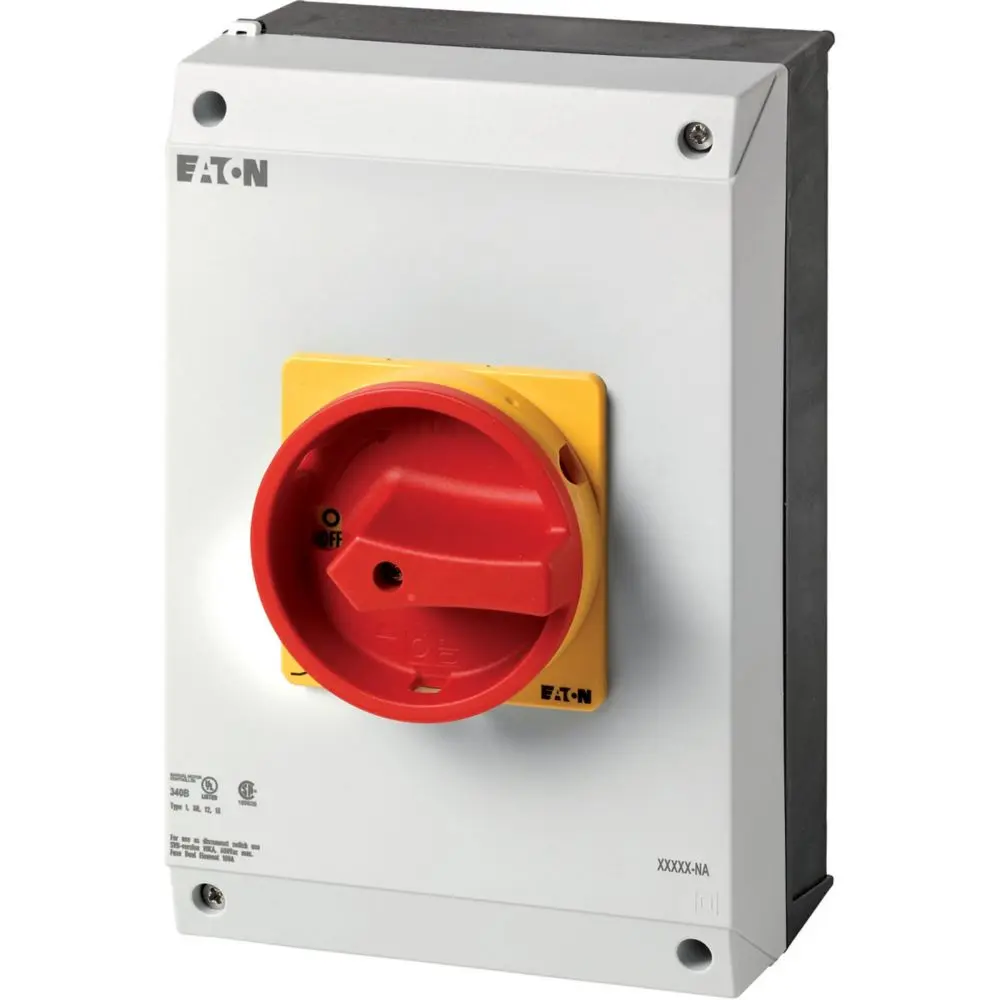

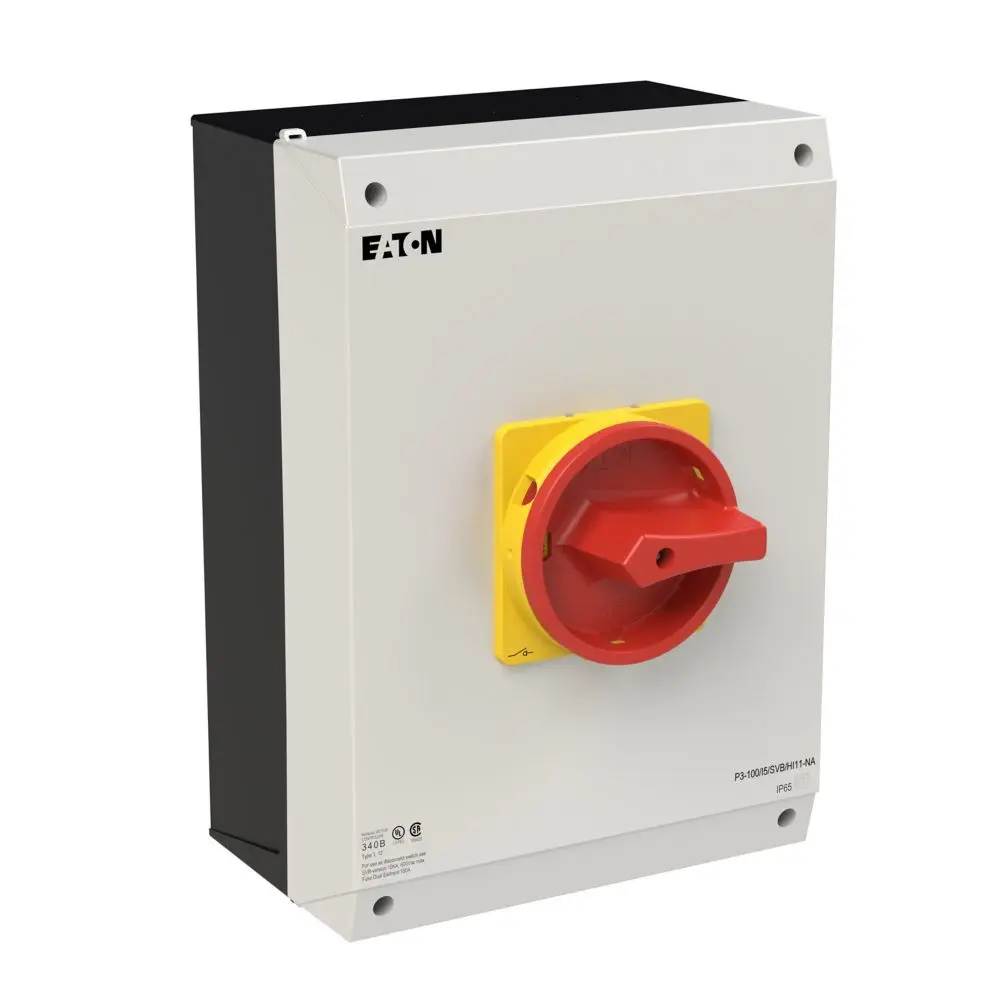

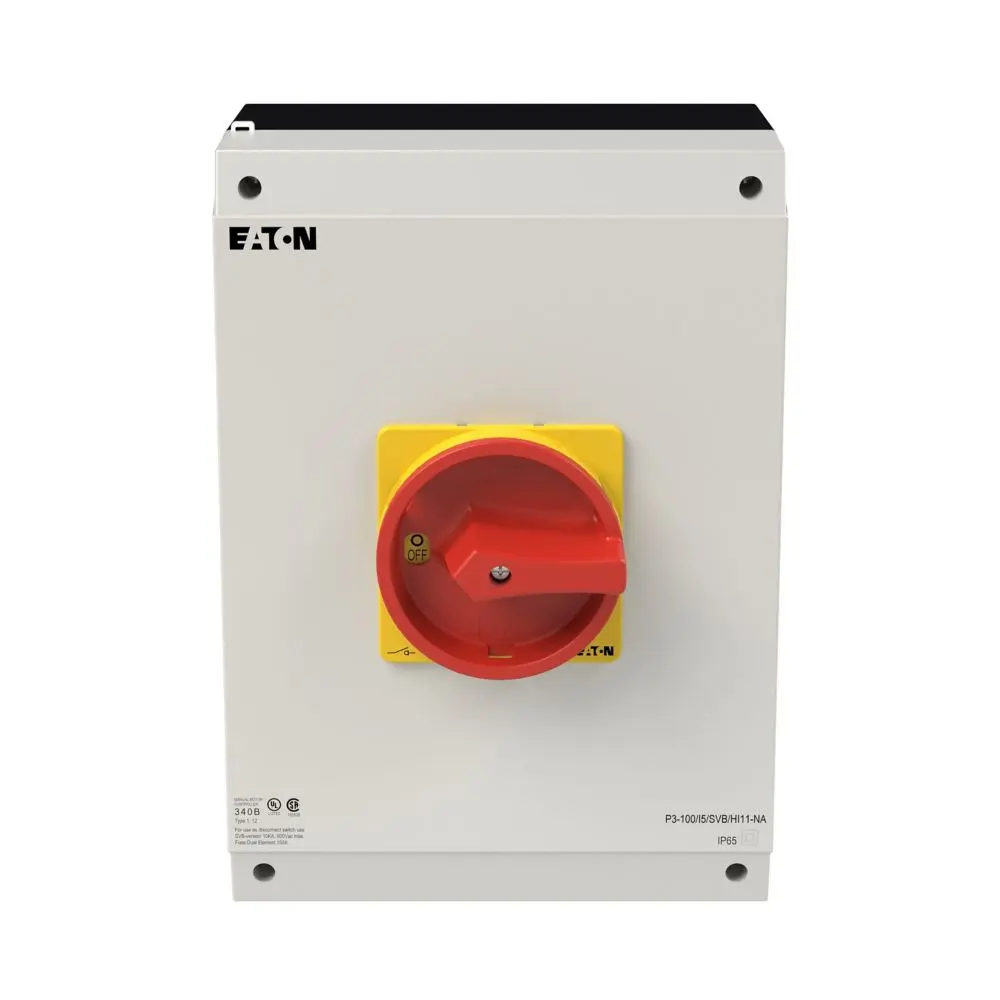

100A, 3P, main switch, emergency switching off, red/yellow lockable handle, IP65, 1 NO + 1 NC auxiliary contacts, UL/CSA/IEC
The Eaton Moeller® series P3-100/I5/SVB/HI11-NA is a 3-pole, 100 A main switch (switch-disconnector) designed for surface mounting with an emergency switching-off function. It features a red rotary handle with a yellow locking ring, lockable in the 0 (Off) position, and includes 1 normally open (N/O) and 1 normally closed (N/C) auxiliary contact. Rated for 690 V AC operation with an impulse withstand voltage of 6 kV, this switch complies with IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL, and CSA standards. It provides IP65 and NEMA 12 protection, supports AC-23A motor duties up to 55 kW @ 400/415 V, and offers a short-circuit current rating (SCCR) of 10 kA with 150 A fuse. The device is suitable for branch circuits and as a motor disconnect, ensuring safe and reliable isolation in industrial applications.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series |
|---|---|
| Model | P3-100/I5/SVB/HI11-NA |
| Catalog No. | 255907 |
| Product Type | Main switch (switch-disconnector) |
| Function | Emergency switching off |
| Design | Surface mounting |
| Operator | Red rotary handle with yellow locking ring |
| Locking Facility | Lockable in 0 (Off) position |
| Auxiliary Contacts | 1 N/O + 1 N/C |
| Poles | 3 |
| Degree of Protection | IP65 (front) / NEMA 12 |
| Mounting Position | As required |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Uninterrupted Current (Iu) | 100 A |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| AC-23A Motor Rating (50–60 Hz) | 30 kW @ 230 V · 55 kW @ 400/415/500/690 V |
| Rated Short-Time Withstand Current (Icw, 1 s) | 2 kA |
| Conditional Short-Circuit Current (Iq) | 4 kA (load side) / 80 kA (supply side) |
| SCCR (North America) | 10 kA with 150 A fuse |
| Fuse (IEC) | gG/gL 100 A |
| Mechanical Endurance | 100 000 operations |
| Wiring (metric) | 1× 2.5–35 mm² or 2× 2.5–10 mm² (solid/stranded); 1× 1.5–25 mm² or 2× 1.5–6 mm² (ferruled) |
| Wiring (AWG) | 14 – 2 AWG |
| Terminal Screw / Torque | M5 / 3 Nm (26.5 lb-in) |
| Ambient Temperature (enclosed) | −25 °C to +40 °C |
| Standards / Certifications | IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CE marked |
| UL File No. | E36332 (NLRV) |
| CSA File No. | 12528 (Class 3211-05) |
| Application | Suitable for branch circuits, maintenance switching, and motor disconnects |
