Eaton / Moeller Series
25A, 3P, main/emergency disconnect switch with 1 N/O + 1 N/C aux contacts, rear mounting, CE/UL/CSA/IEC
The Eaton Moeller P1-25/V/SVB/HI11 is a 25 A, 3-pole main and emergency disconnect switch designed for reliable circuit isolation and safety. It includes one normally open (N/O) and one normally closed (N/C) auxiliary contact, providing flexible control integration. The switch features a red rotary handle with a yellow locking ring for emergency visibility and can be locked in the 0 (OFF) position to ensure operator safety. Built for rear mounting, the P1-25/V/SVB/HI11 is rated for operational voltages up to 690 V AC and power ratings up to 13 kW at 400 V (AC-23A). With a mechanical lifespan of 300,000 operations, IP65/NEMA 1 front protection, and compliance with CE, UL, CSA, VDE, and IEC standards, it is ideal for motor disconnect and emergency stop applications in industrial panels.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Series | P1 |
| Model Code | P1-25/V/SVB/HI11 |
| Catalog Number | 095826 |
| Product Type | Main / Emergency Disconnect Switch |
| Mounting Method | Rear Mounting |
| Number of Poles | 3 |
| Amperage | 25 A |
| Auxiliary Contacts | 1 N/O + 1 N/C |
| Actuator Type | Door-coupling rotary handle |
| Actuator Color | Red with yellow locking ring |
| Locking Feature | Lockable in 0 (OFF) position |
| Degree of Protection (Front) | IP65 / NEMA 1 |
| Mechanical Lifespan | 300,000 operations |
| Operating Frequency | 1200 operations/h |
| Ambient Temperature Range | −25 °C to +50 °C (enclosed max +40 °C) |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Housing Material | Plastic |
| Weight | 0.257 kg |

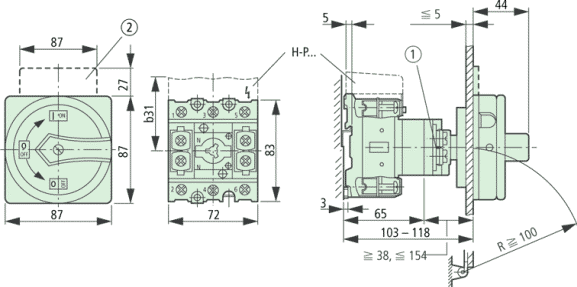

| Dimensions (H × W × D) | 65 × 83 × 131 mm |
| Rated Operational Voltage (Ue) | 690 V AC max |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (Ie) | 25 A (AC-21 / AC-23A at 400 V) |
| Rated Operational Power (AC-23A @ 400 V) | 13 kW |
| Rated Operational Power (AC-3 @ 400 V) | 7.5 kW |
| Rated Short-Time Withstand Current (Icw) | 640 A for 1 s |
| Conditional Short-Circuit Current (Iq) | 50 kA |
| Short-Circuit Protection | 25 A gG/gL Fuse |
| Rated Breaking Capacity (400 V) | 150 A (cos φ to IEC 60947-3) |
| Rated Making Capacity (up to 690 V) | 240 A (IEC 60947-3) |
| Safe Isolation (EN 61140) | 440 V AC between contacts |
| Terminal Type | Screw connection (M4) |
| Terminal Capacity | 1 × (1 – 6 mm²) solid/stranded or 14 – 8 AWG |
| Tightening Torque | 1.6 Nm (14.1 lb-in) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Climatic Proofing | Damp heat cyclic and constant (IEC 60068-2-30/78) |
| Certifications | CE, UL E36332, CSA, VDE 0660, IEC/EN 60947-3/4-1, IEC/EN 60204 |
