Eaton / Moeller Series

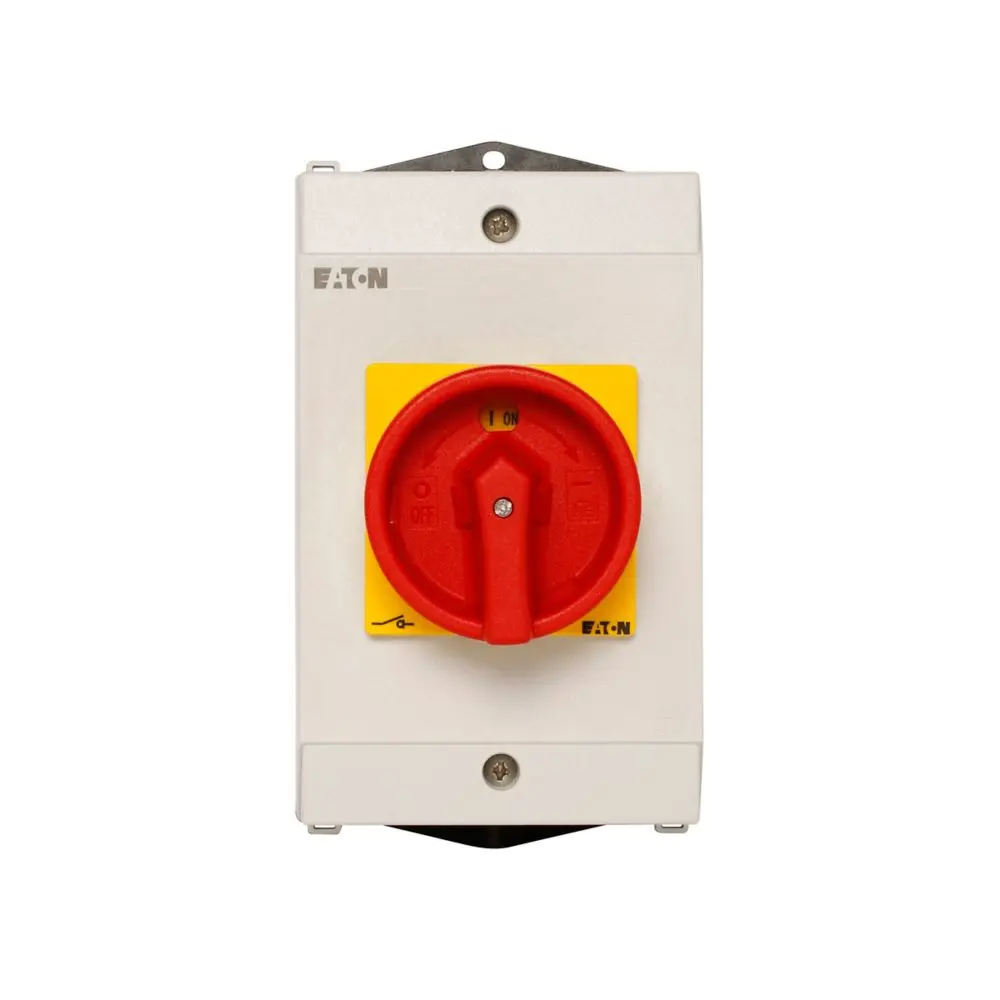

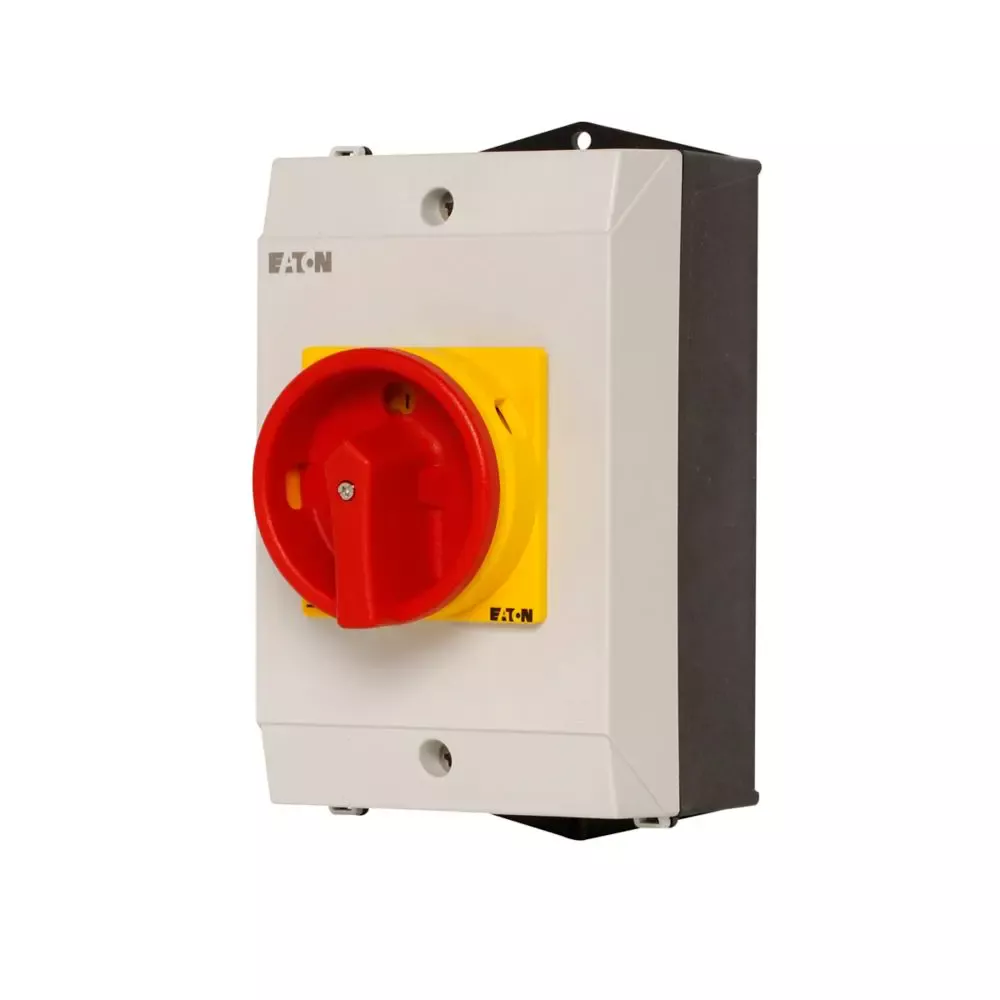

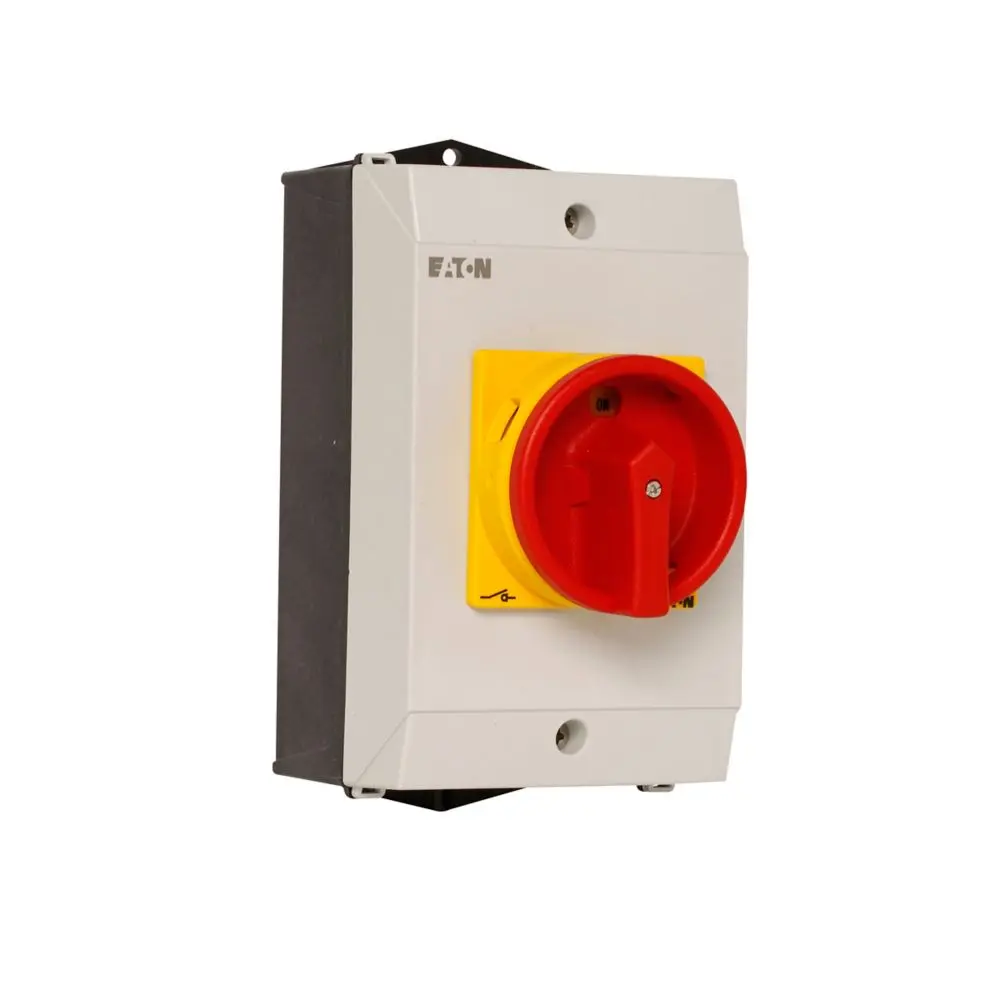

25A, 3P, main/emergency disconnect switch, surface mounting, red rotary handle with yellow locking ring, CE/UL/CSA/IEC certified
The Eaton Moeller P1-25/I2/SVB-NA (Catalog No. 255886) is a 25 A, 3-pole main and emergency disconnect switch designed for safe isolation and emergency power shutdown. It features a red rotary handle with a yellow locking ring and can be locked in the 0 (OFF) position for enhanced operator safety. This surface-mounted switch is housed in a durable insulated enclosure suitable for industrial and commercial environments. Rated for voltages up to 690 V AC and power up to 13 kW at 400 V, the P1-25/I2/SVB-NA supports both maintenance and emergency stop applications. With IP65/NEMA 12 protection, 300,000 mechanical operations, and compliance with CE, UL, CSA, VDE, and IEC standards, this switch delivers robust performance and long-term reliability.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Series | P1 |
| Model Code | P1-25/I2/SVB-NA |
| Catalog Number | 255886 |
| Product Type | Main / Emergency Disconnect Switch |
| Mounting Method | Surface Mounting |
| Number of Poles | 3 |
| Amperage | 25 A |
| Actuator Type | Door-coupling rotary drive |
| Actuator Color | Red handle with yellow locking ring |
| Locking Feature | Lockable in 0 (OFF) position |
| Degree of Protection (Front) | IP65 / NEMA 12 |
| Mechanical Lifespan | 300,000 operations |
| Operating Frequency | 1200 operations/h |
| Ambient Temperature Range | −25 °C to +40 °C (enclosed max +40 °C) |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Housing Material | Plastic (Gray) |
| Weight | 0.455 kg |

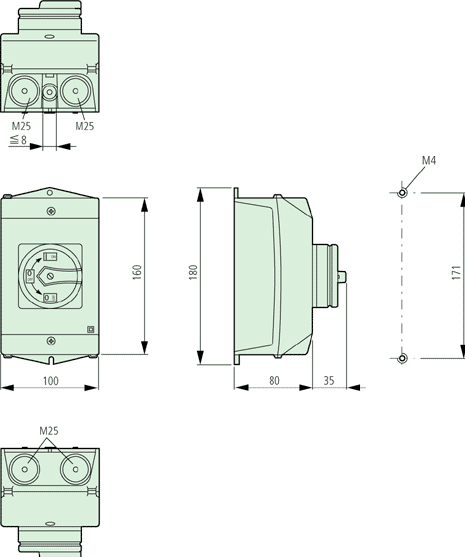

| Dimensions (H × W × D) | 180 × 100 × 115 mm |
| Rated Operational Voltage (Ue) | 690 V AC max |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (Ie) | 25 A (AC-21 / AC-23A at 400 V) |
| Rated Operational Power (AC-23A @ 400 V) | 13 kW |
| Rated Operational Power (AC-3 @ 400 V) | 7.5 kW |
| Rated Short-Time Withstand Current (Icw) | 640 A for 1 s |
| Conditional Short-Circuit Current (Iq) | 80 kA |
| Short-Circuit Protection | 25 A gG/gL Fuse |
| Rated Breaking Capacity (400 V) | 150 A (cos φ to IEC 60947-3) |
| Rated Making Capacity (up to 690 V) | 240 A (IEC 60947-3) |
| Safe Isolation (EN 61140) | 440 V AC between contacts |
| Terminal Type | Screw connection (M4) |
| Terminal Capacity | 1 × (1–6 mm²) solid/stranded or 14–8 AWG |
| Tightening Torque | 1.6 Nm (14.1 lb-in) |
| Motor Ratings | 5 HP @ 230 V / 10 HP @ 480 V / 15 HP @ 600 V |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Climatic Proofing | Damp heat cyclic and constant (IEC 60068-2-30/78) |
| Certifications | CE, UL E36332, CSA, VDE 0660, IEC/EN 60947-3/4-1, IEC/EN 60204 |
| Model | P1-25/I2/SVB-NA |
|---|---|
| Function | Emergency Disconnect Switch |
| Rated Uninterrupted Current (Iu) | 25A |
| Maximum Operating Frequency | 50 Operations/hour |
| Rated Operational Voltage (Ue) | 690V |
| Rated Impulse Withstand Voltage (Uimp) | 6000V |
| Contacts | 2 |
