Eaton / Moeller Series
25A, 3P, breaker, adjustable thermal

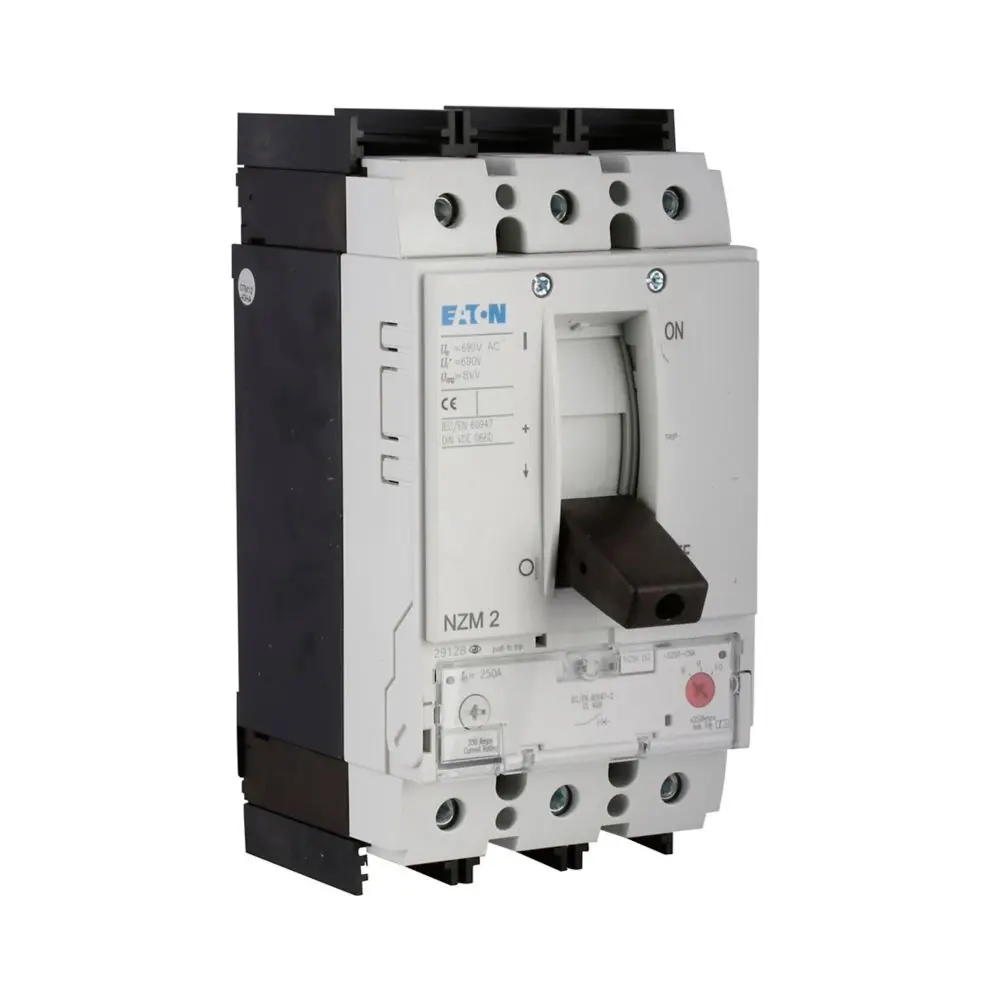

Eaton NZMB2-A25-BT-NA molded case circuit breaker 25 amp, 3 pole, short circuit release 350A, adjustable thermal trip 20-25 amps, system and cable protection, rated voltage 480 Y / 277 V, rated insulation voltage 690V, switching capacity 35kA@240V, 25kA@480V, 18kA@600V, box terminal connections, toggle switch operation, UL/CSA/IEC certified, frame size 2
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Series NZM complete molded case circuit breaker |
| Catalog Number | NZMB2-A25-BT-NA |
| EAN | 4015081074211 |
| Product Length/Depth | 4.05 in |
| Product Height | 7.24 in |
| Product Width | 4.13 in |
| Product Weight | 4.1 lb |
| Specification | Value |
|---|---|
| Amperage Rating | 25 A |
| Voltage Rating | 440 Vac |
| Trip Type | T185 |
| Circuit Breaker Type | NZMB2 |
| Terminals | Box |
| Frame | NZM2 |
| Class | Distribution circuit protection |
| Accessories | Rocker lever, motor drive |
| Adjustment Range Short-Circuit Release | 350-350A delayed |
| Setting Range OL Protector | 20-25A |
| Short-Circuit Breaking Capacity | 25 kAIC |
| Interrupt Rating | 25 kAIC |
| Connection | Front frame clamp |
| Overload Range | 20-25A |
| Number of Poles | Three-pole |
| Trip Rating | 480-800 A |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
