Eaton / Moeller Series

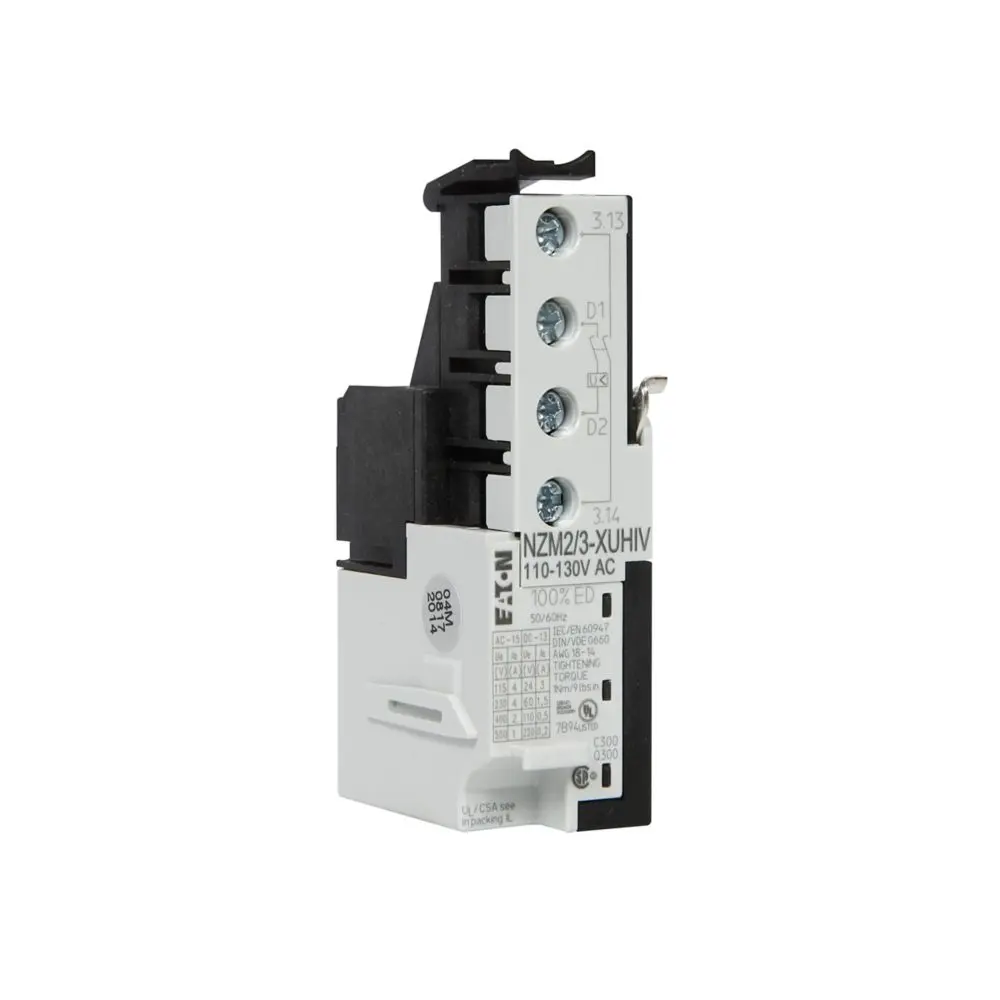

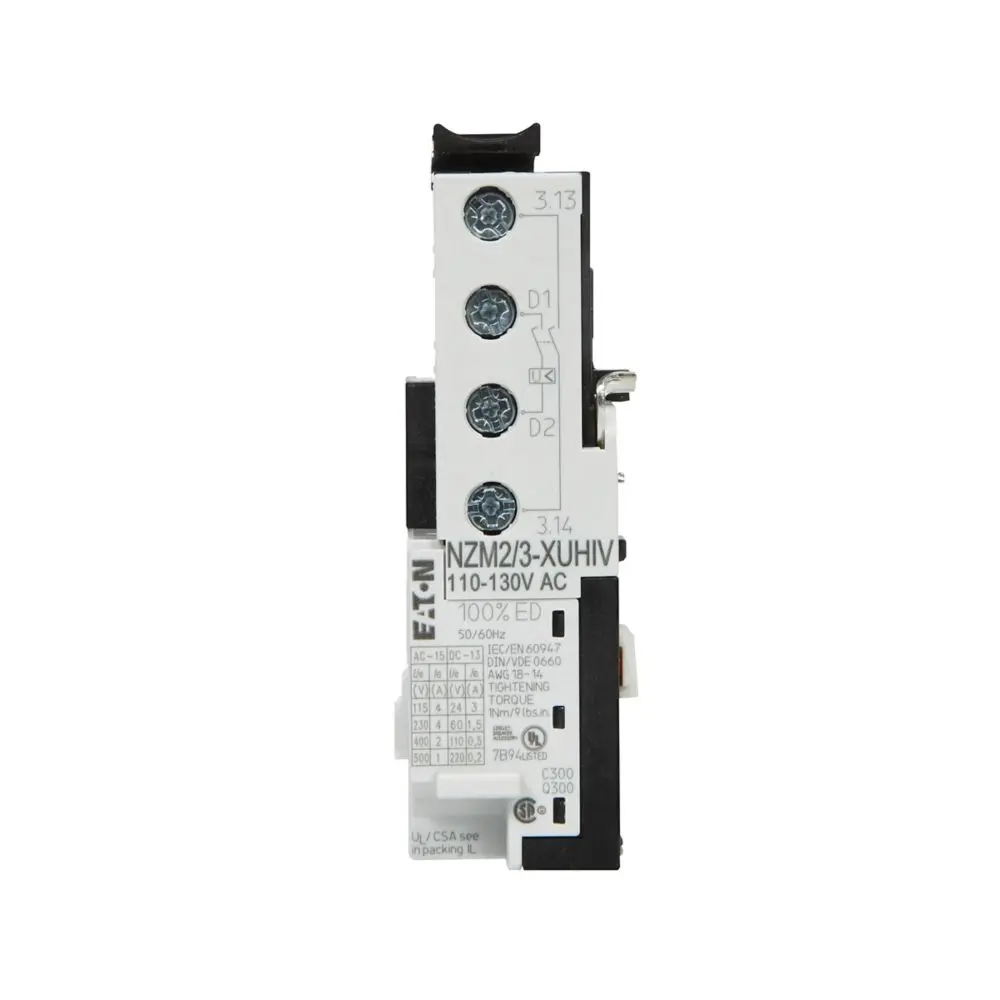

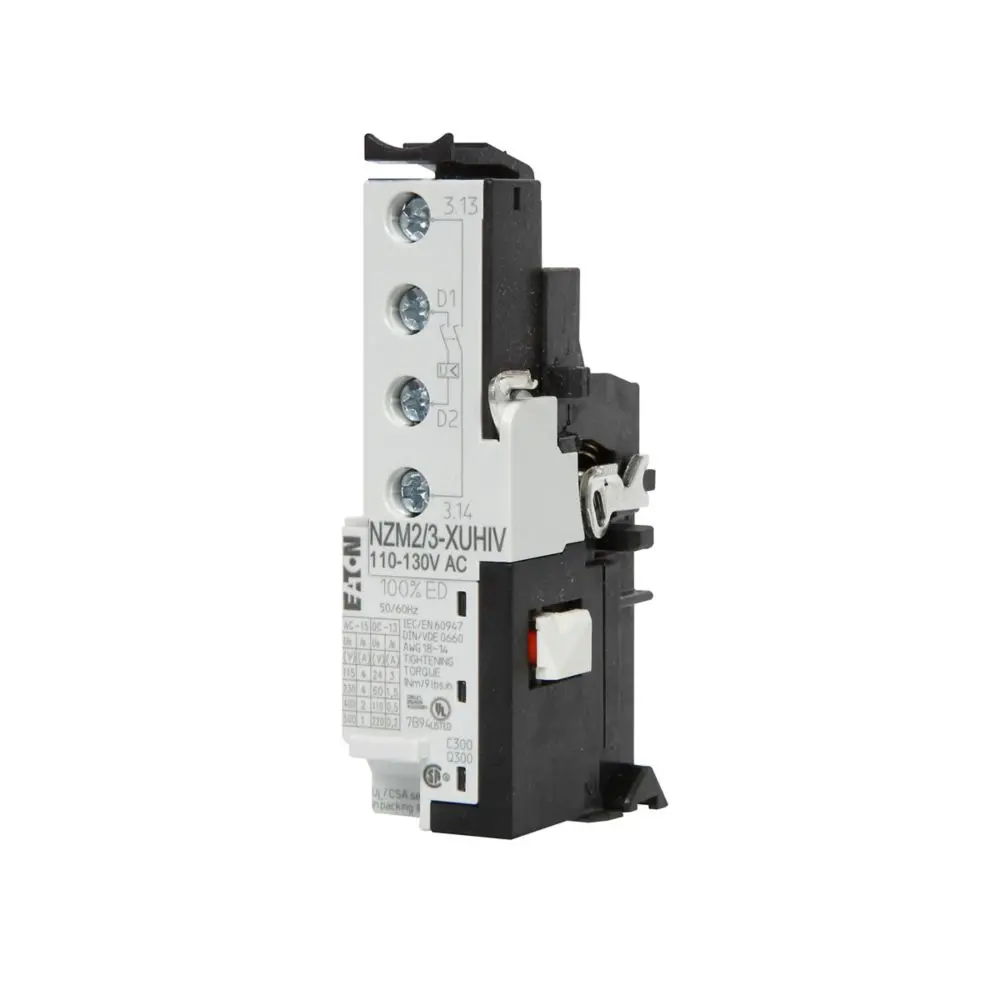

Eaton NZM Undervoltage release, 110-130VAC, 2 early N/O contacts, 0.074 kg.
Eaton Moeller series NZM Undervoltage release, 110-130VAC, +2 early N/O, for NZM2/3, WITH 2 VHI. Product length 42 mm, height 90 mm, width 30 mm, weight 0.074 kg.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM Undervoltage release |
| Catalog Number | 259589 |
| Model Code | NZM2/3-XUHIV110-130AC |
| EAN | 4015082595890 |
| Used With | NZM2(-4), N(S)2(-4), NZM3(-4), N(S)3(-4) |
| Connection Type | Screw connection |
| Suitable For | Off-load switch |
| Number of Contacts (Normally Open Contacts) | 2 |
| Number of Contacts (Normally Closed Contacts) | 0 |
| Number of Contacts (Change-Over Contacts) | 0 |
| Specification | Value |
|---|---|
| Rated Control Supply Voltage | 110 - 130 V 50/60 Hz |
| Drop-Out Voltage of Undervoltage Release AC/DC - Max | 0.7 x Us |
| Drop-Out Voltage of Undervoltage Release AC/DC - Min | 0.35 x Us |
| Minimum Command Time - Max | 15 ms |
| Minimum Command Time - Min | 10 ms |
| Reaction Time | 19 ms |
| Pick-Up Power Consumption at AC (Undervoltage Release) | 1.5 VA |
| Pick-Up Power Consumption at DC (Undervoltage Release) | 0.8 W |
| Terminal Capacity (Solid/Flexible Conductor) | 0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
