Eaton / Moeller Series

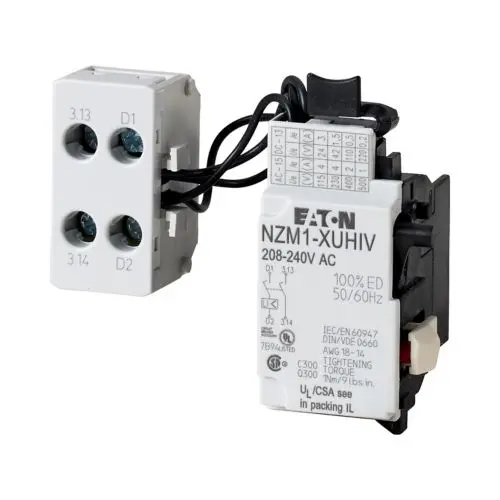

Eaton NZM Undervoltage release, 208-240V, 2 NO contacts, 1.5 VA AC
Eaton Moeller series NZM Undervoltage release, Catalog Number 259539, EAN 4015082595395, Model Code NZM1-XUHIV208-240AC, Rated Control Supply Voltage 208 - 240 V 50/60 Hz, Pick-Up Power Consumption at AC 1.5 VA, Pick-Up Power Consumption at DC 0.8 W, Drop-Out Voltage of Undervoltage Release (Max) 0.7 x Us, Drop-Out Voltage of Undervoltage Release (Min) 0.35 x Us, Minimum Command Time (Max) 15 ms, Minimum Command Time (Min) 10 ms, Reaction Time 19 ms, Number of Contacts (Normally Open) 2, Terminal Capacity (Solid/Flexible Conductor) 0.75 mm² - 2.5 mm² (1x).
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM Undervoltage release |
| Catalog Number | 259539 |
| EAN | 4015082595395 |
| Model Code | NZM1-XUHIV208-240AC |
| Compliances | IEC, UL/CSA, RoHS conform |
| Certifications | CSA certified, CE marking, UL listed |
| Frame | NZM1 |
| Voltage Type | AC |
| Specification | Value |
|---|---|
| Rated Control Supply Voltage | 208 - 240 V 50/60 Hz |
| Pick-Up Power Consumption at AC | 1.5 VA |
| Pick-Up Power Consumption at DC | 0.8 W |
| Drop-Out Voltage of Undervoltage Release (Max) | 0.7 x Us |
| Drop-Out Voltage of Undervoltage Release (Min) | 0.35 x Us |
| Minimum Command Time (Max) | 15 ms |
| Minimum Command Time (Min) | 10 ms |
| Reaction Time | 19 ms |
| Number of Contacts (Normally Open) | 2 |
| Terminal Capacity (Solid/Flexible Conductor) | 0.75 mm² - 2.5 mm² (1x) |
