Eaton / Moeller Series
LCD Display - 80mm w/keys

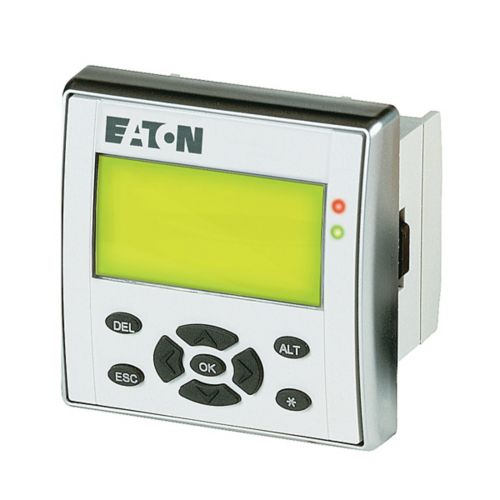

The Eaton/Moeller MFD-80-B is a versatile multi-function display module designed as an operator interface for automation systems. It features a high-contrast 132 x 64 pixel graphical display with a switchable backlight, status LEDs in red and green, and an illuminated keypad with dedicated navigation and function buttons. The unit supports individual laser inscription through MFD combinations and includes a removable Titan front frame. Rated for NEMA 3R, 12, and IP65, it is suitable for use in demanding industrial environments.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | MFD-80-B |
|---|---|
| Type | Operator Interface Module |
| Display | Graphical, 132 x 64 pixels |
| Backlight | Switchable |
| Status LEDs | Freely definable, red and green |
| Keypad | Illuminated |
| Keys | 4 cursor, 4 function, 1 mode button |
| Front Frame | Removable Titan |
| Enclosure Ratings | NEMA 3R, 12; IP65 |
| Custom Labeling | Laser inscription via MFD combination |
