Eaton / Moeller Series

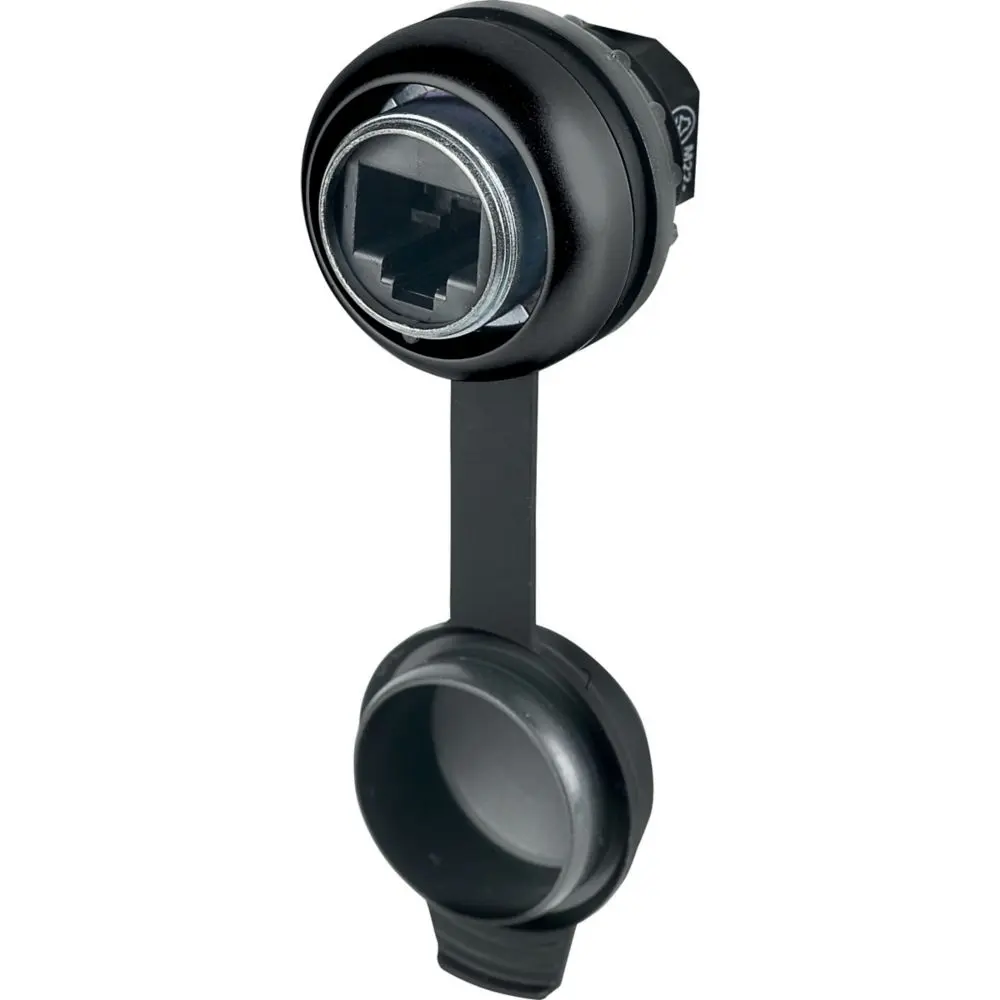

Eaton M22 Bulkhead interface, RJ45 socket, 24V AC, IP65, 1500A
Eaton Moeller® series M22 Accessory Bulkhead interface, RJ45 socket, 8/8, cat. 5e, Bezel: black. Product length/depth: 30 mm, height: 30 mm, width: 30 mm, weight: 0.014 kg. Certified by UL for use in Canada.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series M22 Accessory Bulkhead interface |
| Catalog Number | 147537 |
| Model Code | M22S-RJ45-SA |
| EAN | 4015081439881 |
| Bezel Color | Black |
| Contact Material | CuSn, gold-plated |
| Degree of Protection | IP20 (with plug connected), NEMA 12 (with closed cover), IP65 (with closed cover) |
| Opening Diameter | 22.5 mm |
| Mounting Depth | 70 mm |
| Specification | Value |
|---|---|
| Rated Operational Voltage | 24 V AC |
| Resistance | < 30 mΩ (volume resistance) |
| Insulation Resistance | ≥ 100 MΩ |
| Lifespan, Mechanical | 750 insertion cycles |
| Ambient Operating Temperature - Max | 70 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Ambient Storage Temperature - Max | 80 °C |
| Ambient Storage Temperature - Min | 25 °C |
| Nominal Current | 1500 A |
| Nominal Voltage - Max | 50 V |
| Number of Poles | Eight-pole |
