Eaton / Moeller Series

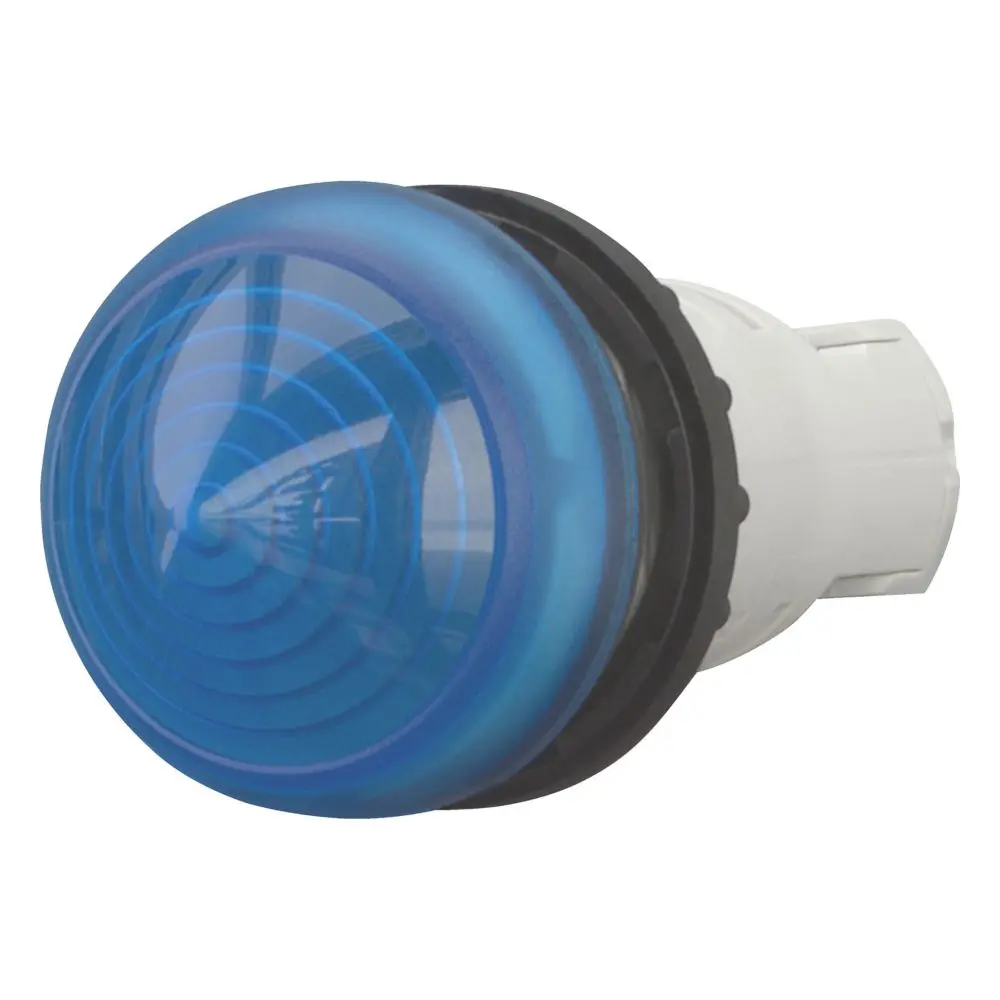

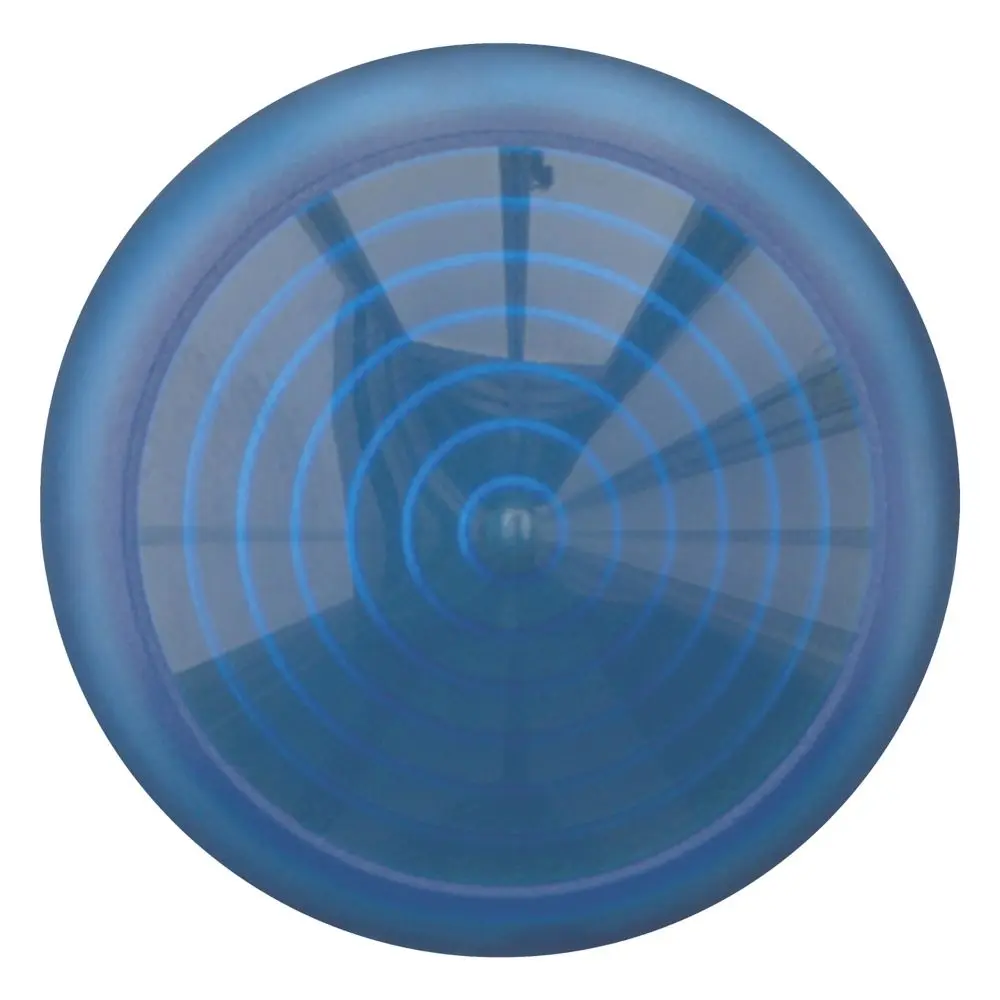

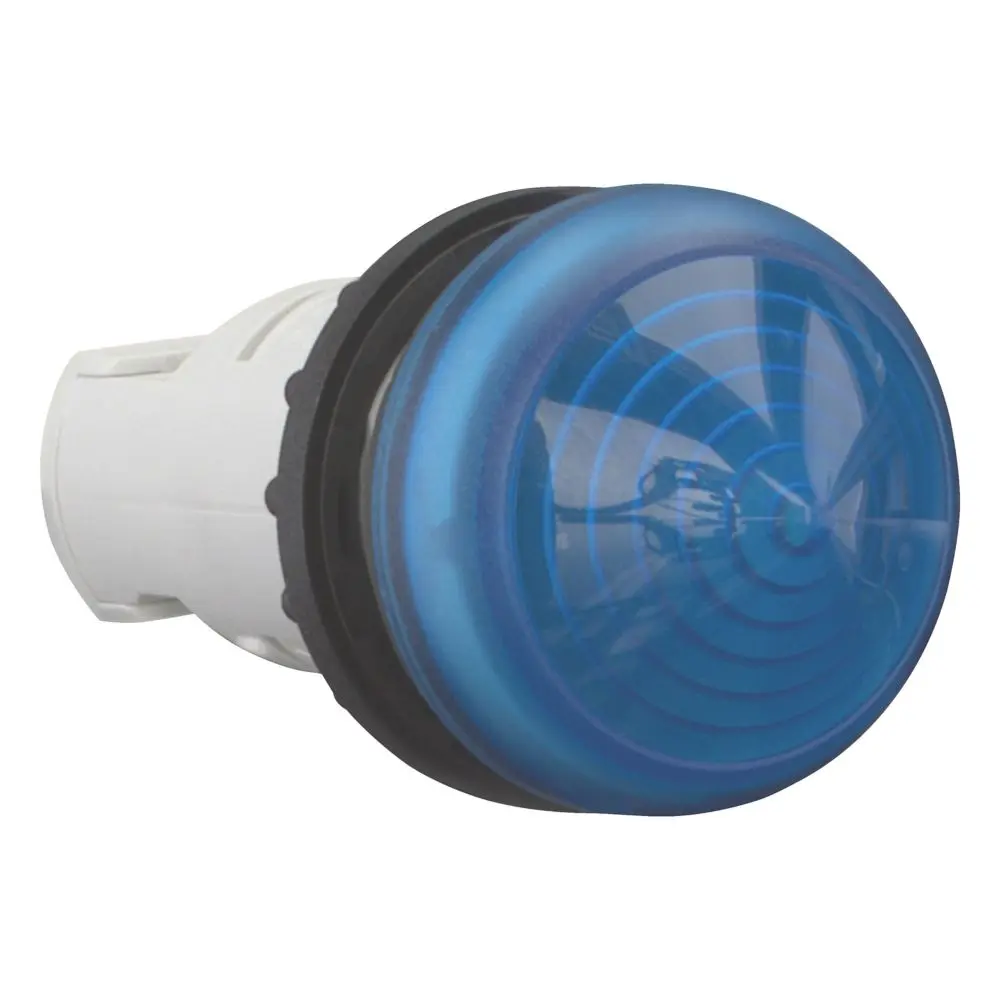

Eaton M22 Indicator light, Blue, IP67/IP69K, -25°C to 70°C, 4000V AC
Eaton Moeller® series M22 Indicator light, RMQ-Titan, Extended, conical, Blue. Catalog Number: 216782. EAN: 4015082167820. Model Code: M22-LH-B. Degree of Protection: NEMA 4X, 13; IP67/IP69K. Rated Impulse Withstand Voltage: 4000 V AC. Ambient Operating Temperature: -25 °C to 70 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series M22 Indicator light |
| Catalog Number | 216782 |
| EAN | 4015082167820 |
| Model Code | M22-LH-B |
| Bezel Color | Chrome |
| Lens Color | Blue |
| Design | Extended, conical |
| Fitted With | Front ring |
| Specification | Value |
|---|---|
| Degree of Protection | NEMA 4X, 13 |
| Degree of Protection (Front Side) | IP67/IP69K |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (UIMP) | 4000 V AC |
| Shock Resistance | 30 g, Mechanical, According to IEC/EN 60068-2-27 |
| Ambient Operating Temperature - Min | -25 °C |
| Ambient Operating Temperature - Max | 70 °C |
| Terminal Capacity | 0.5 - 1.5 mm², solid / 0.5 - 1.5 mm², stranded |
