Eaton / Moeller Series
actuating rod (metal + metal rod), rotatable 90°, –25 °C to +70 °C, UL/CSA/CE

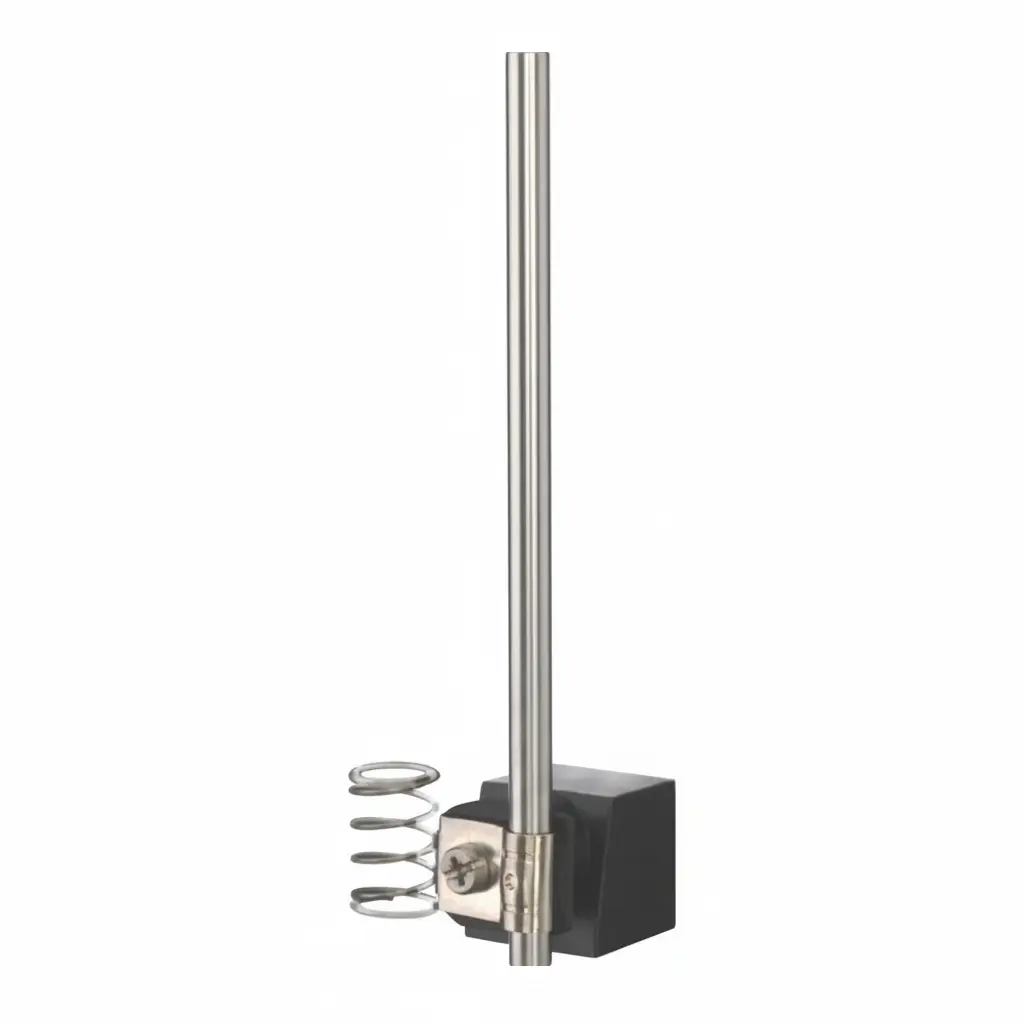

Eaton Moeller® series LS LSM-XRRM is a metal actuating rod designed for use with LS(M)-series basic devices. The operating head can be rotated at 90° intervals to match the required approach direction. This non-electrical mechanical component features a fully metallic construction for durability and precision actuation. It meets the design verification requirements of IEC/EN 61439 for corrosion resistance, thermal stability, and material performance. The actuator operates in ambient temperatures from –25 °C to +70 °C and complies with IEC/EN 60947-5, UL 508, CSA C22.2 No. 14, and CE certification standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LSM-XRRM |
| Catalog Number | 266162 |
| Product Type | Actuating rod (metal + metal rod) |
| Material | Metal |
| For Use With | Basic devices LS(M)-series |
| Part Group Reference | LS(M)-… |
| Mounting | Operating head rotatable 90° for approach direction adaptation |
| Type of Control Element | Actuating rod |
| EL Number (Norway) | 4356163 |
| Product Category | Drive head for position switches |
| Operating Temperature Range | –25 °C to +70 °C |
|---|---|
| Rated Operational Current (In) | 0 A (non-electrical component) |
| Heat Dissipation (Static/Current-dependent) | 0 W |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosure | Meets product standard requirements |
| Resistance to Heat/Fire | Meets product standard requirements |
| UV Resistance | On request |
| Mechanical Function Verification | Complies when installed per instruction leaflet (IL) |
| Compliance Standards | IEC/EN 61439; IEC/EN 60947-5 |
| Approvals | UL File E29184 (NKCR); CSA File 12528 (Class 3211-03) |
| Certifications | UL, CSA, CE |
