Eaton / Moeller Series

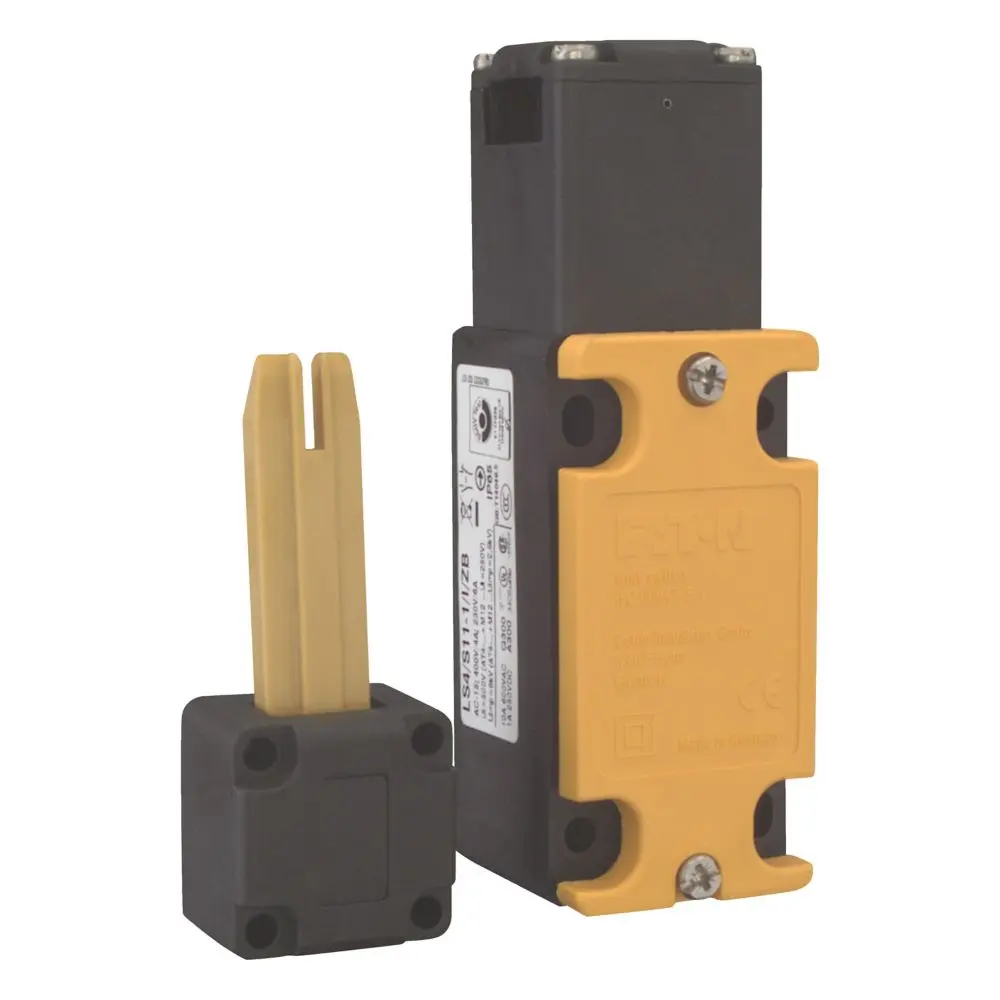

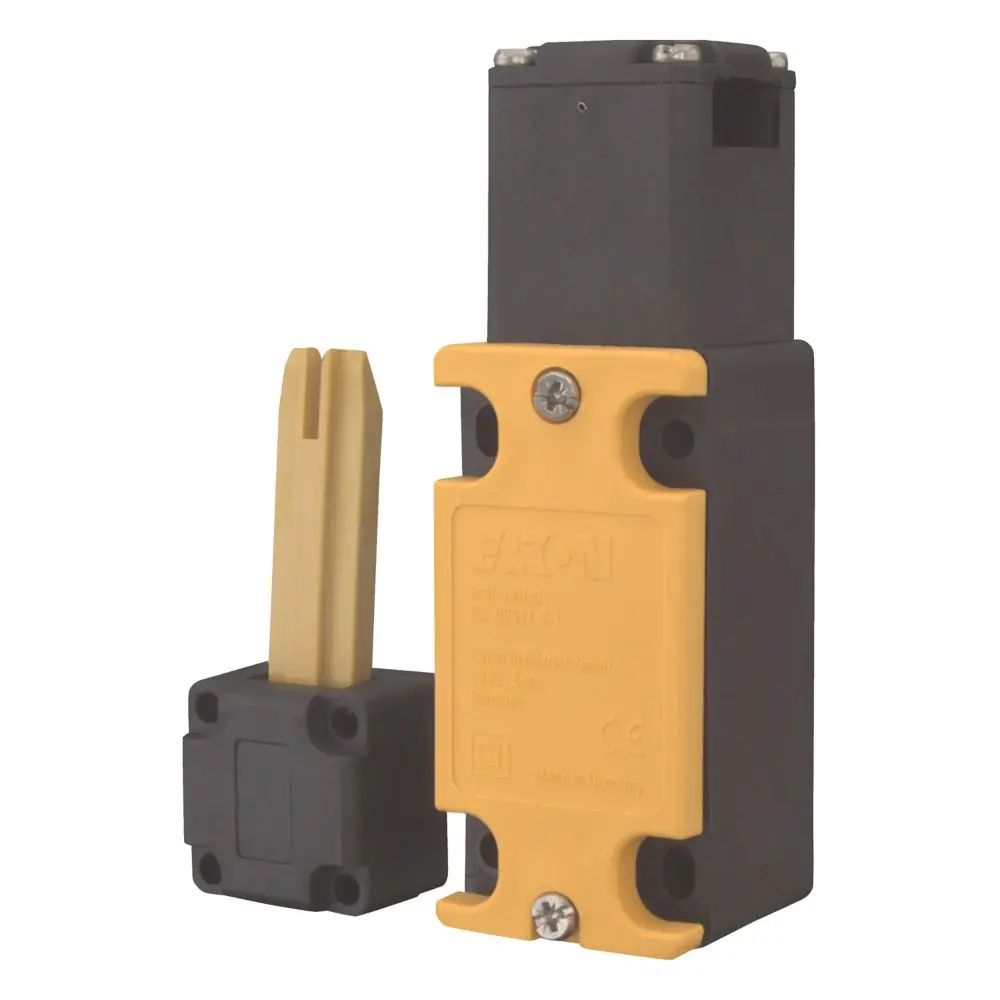

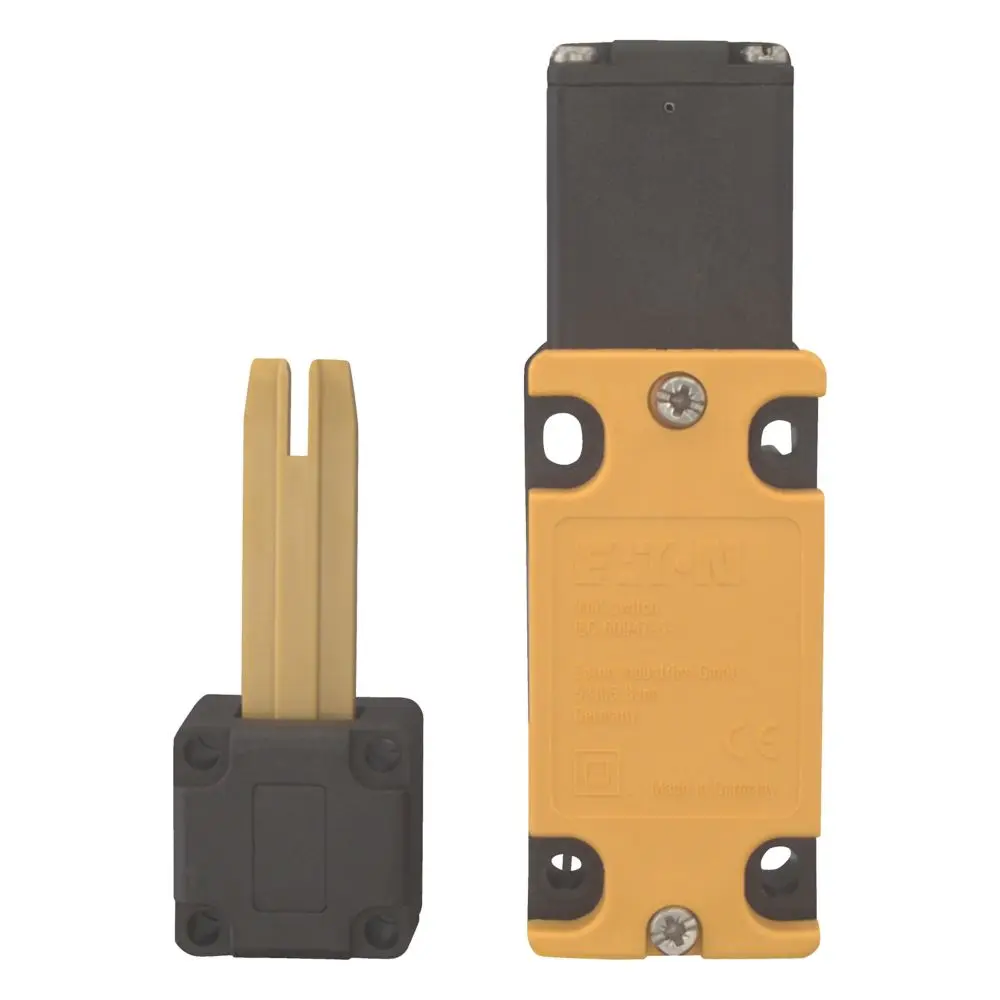

Eaton LS4 Safety switch, 1 N/O, 1 NC, IP65, -25 to 70 °C, 0.195 kg
Eaton Moeller® series LS4 Safety position switch, LS(4)…ZB, Safety position switches, Complete unit, 1 N/O, 1 NC, narrow, Insulated material, Screw terminal, -25 - +70 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series LS4 Safety position switch |
| Catalog Number | 106857 |
| EAN | 4015081066179 |
| Product Length/Depth | 42 mm |
| Product Height | 130 mm |
| Product Width | 40 mm |
| Product Weight | 0.195 kg |
| Model Code | LS4/S11-1/I/ZB |
| Specification | Value |
|---|---|
| Electric Connection Type | Cable entry metrical |
| Enclosure Material | Insulated material, Plastic |
| Features | Forced opening |
| Switch Function Type | Slow-action switch |
| Degree of Protection | IP65, NEMA Other |
| Operating Frequency | 1800 Operations/h |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (UIMP) | 6000 V AC |
| Repetition Accuracy | 0.02 mm (Contacts/switching capacity) |
| Shock Resistance | 5 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms |
| Ambient Operating Temperature - Min | -25 °C |
| Ambient Operating Temperature - Max | 70 °C |
| Rated Conditional Short-Circuit Current (IQ) | 1 kA |
| Rated Insulation Voltage (UI) | 500 V |
| Rated Operational Current (IE) at AC-15, 220 V, 230 V, 240 V | 6 A |
| Rated Operational Current (IE) at AC-15, 24 V | 10 A |
| Rated Operational Current (IE) at AC-15, 380 V, 400 V, 415 V | 4 A |
| Rated Operational Current (IE) at DC-13, 0.8 A | 0.8 A |
