Eaton / Cutler-Hammer
800A, 3P, breaker frame only, interchangeable thermal-magnetic, 35 kAIC @ 600 Vdc, UL

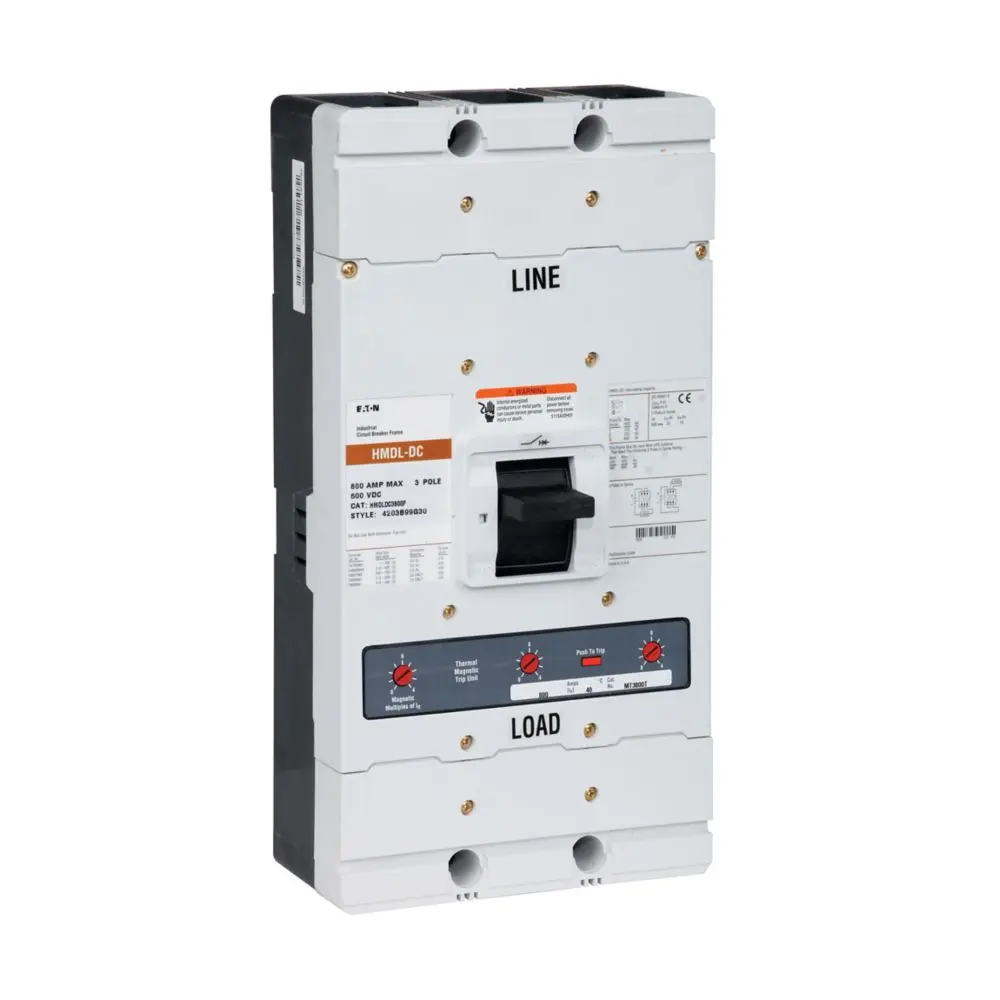

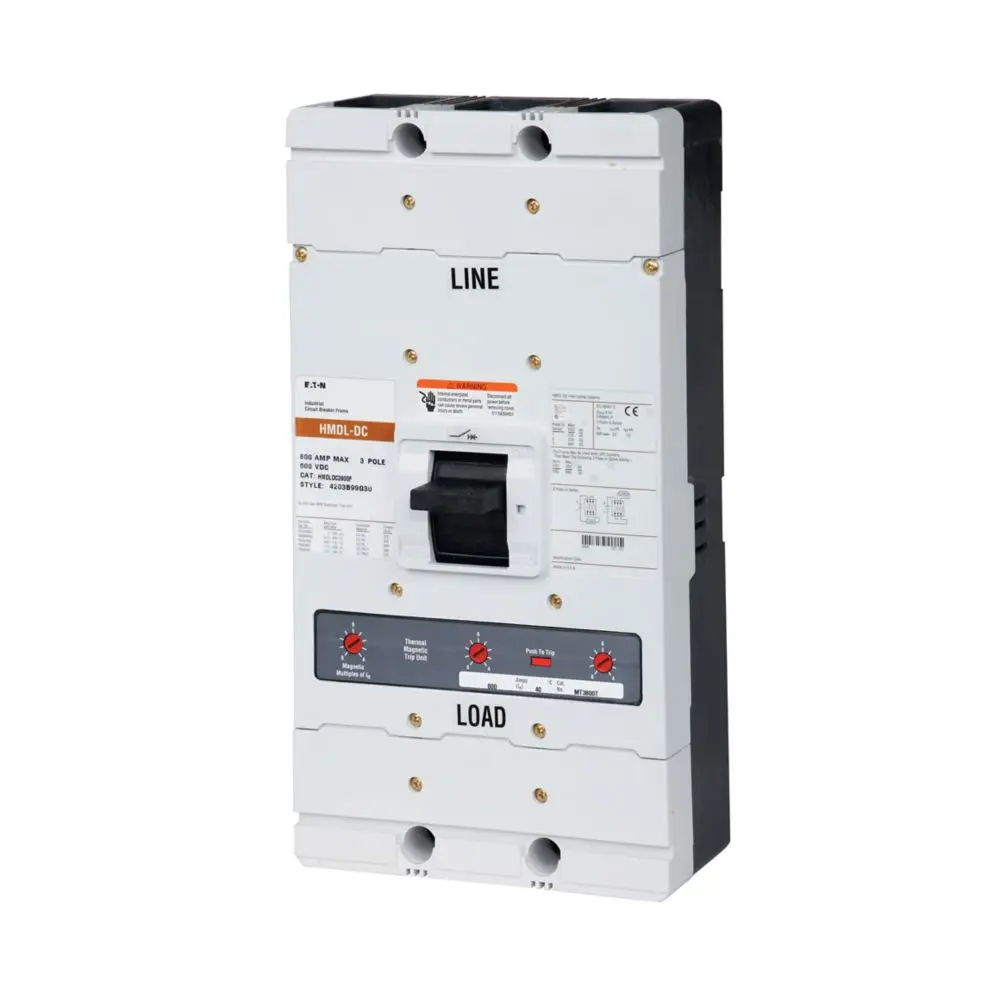

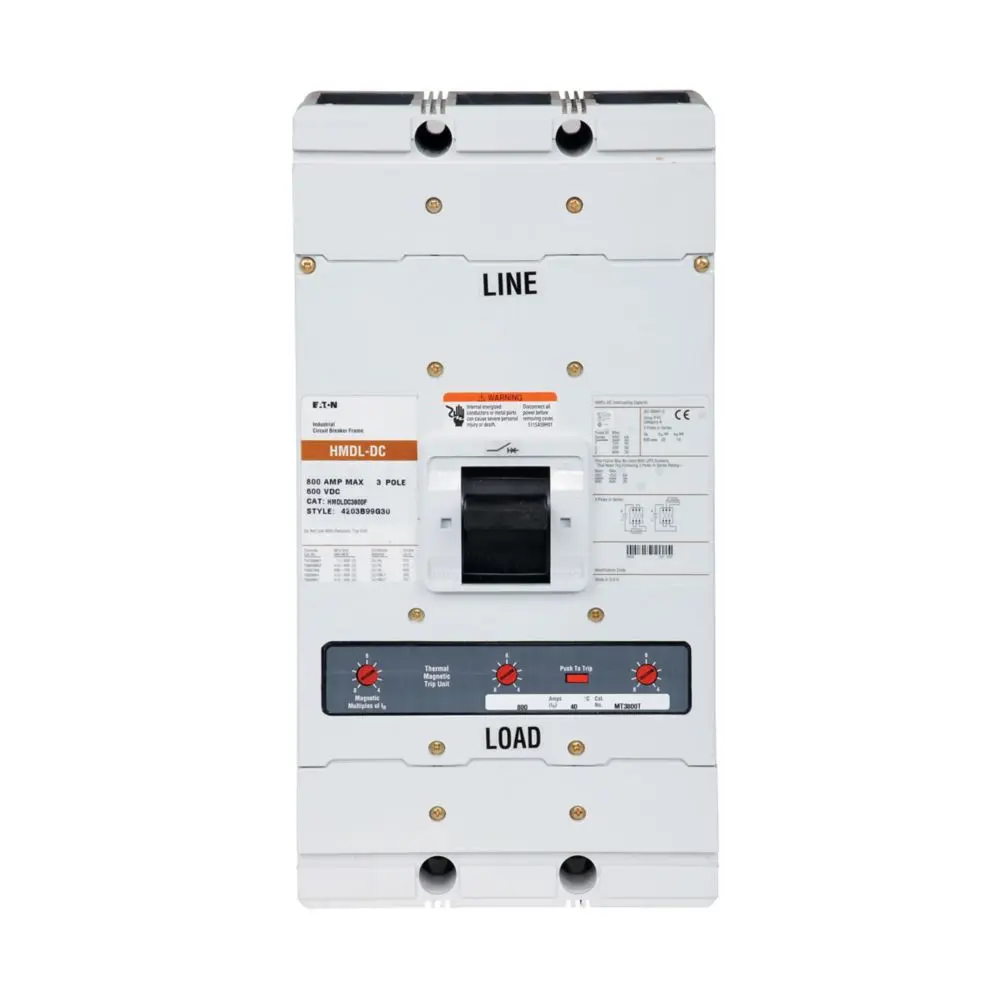

The Eaton HMDLDC3800F is a frame-only molded case circuit breaker from the MDL frame class, designed for solar and DC applications under the PVGard product line. This 3-pole breaker supports 800 A and up to 600 Vdc operation, with an interchangeable T207 thermal-magnetic trip unit (sold separately). With an interrupting capacity of 35 kAIC at 600 Vdc (and 42 kAIC at 125 Vdc), the breaker ensures reliable performance in high-fault environments. UL 489 certified and constructed for robust performance, the HMDLDC3800F is ideal for renewable energy and DC system protection.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | HMDLDC3800F |
| Catalog Number | HMDLDC3800F |
| Series | Series C / PVGard |
| Product Type | DC Molded Case Circuit Breaker |
| Trip Type | Interchangeable Thermal-Magnetic (T207) |
| Amperage | 800 A |
| Poles | 3 |
| Frame Size | MDL |
| Breaker Style | Frame Only |
| Voltage Rating | 600 Vdc (also rated for 690 Vac) |
|---|---|
| Interrupting Capacity @ 600 Vdc | 35 kAIC |
| Interrupting Capacity @ 125 Vdc | 42 kAIC |
| Breaker Class | Vdc |
| Certifications | UL 489 |
| UPC | 782114859643 |
| Dimensions (L × W × H) | 4.06 × 8.25 × 8.25 in |
| Weight | 23.8 lb |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
