Eaton / Moeller Series
Actuating rod, insulated plastic, 190 mm length, 1.4 m/s max. lateral speed, for R-AT4 rotary drive, snap-action contact only, IEC/EN 61439

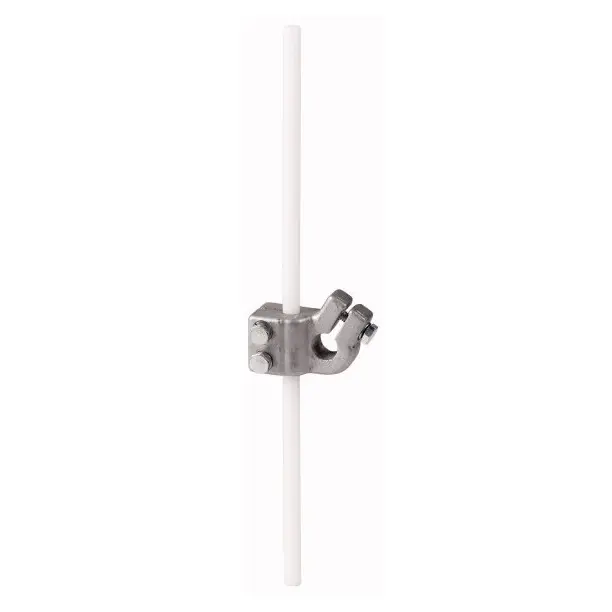

Eaton Moeller HH-K is an insulated actuating rod designed for use with the R-AT4 rotary drive head in the AT4 system. Constructed from high-grade plastic, the rod provides mechanical actuation without electrical conduction, suitable for applications requiring insulation. It offers a lever length of 190 mm and supports a maximum lateral operating speed of 1.4 m/s. The HH-K is approved only for use with snap-action contacts and is not suitable for safety position switch applications. Built for industrial use, it meets IEC/EN 61439 standards for corrosion resistance, heat stability, and material strength, with an operating temperature range of −25 °C to +70 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part No. | HH-K |
| Catalog No. | 063267 |
| Product Type | Actuating rod (insulated plastic) |
| Lever Length | 190 mm |
| Maximum Operating Speed (lateral) | 1.4 m/s |
| Compatible With | R-AT4 rotary drive head |
| Mounting Type | Direct coupling to rotary drive |
| Type of Control Element | Actuating rod |
| Permitted Contact Type | Snap-action contact only |
| Usage Restriction | Not for use as a safety position switch |
| Degree of Protection (IP) | Dependent on mounting enclosure (up to IP65) |
|---|---|
| Operating Ambient Temperature | −25 °C to +70 °C |
| Material | Insulated plastic |
| Rated Operational Current (In) | 0 A (non-current-carrying mechanical component) |
| Heat Dissipation | 0 W (non-electrical component) |
| Resistance Properties | Corrosion-resistant, thermally stable, heat and fire resistant |
| UV Resistance | Available on request |
| Compliance | IEC/EN 61439 verified for mechanical and thermal performance |
