Eaton / Moeller Series
Programmable relay 115/230vac, 8/IP, 4IP, with display
Moeller/Eaton programmable relay base unit, supply voltage 115/230vac, 8 digital inputs, 4 relay outputs, LCD display with operating buttons, screw terminals, timer
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | EASY512-AC-R |
| Product Type | Smart Relay |
| Display | LC Display with Keypad |
| Programming Interface | Front Keypad (EASY Series) |
| Logic Capacity | Up to 41 Lines, 3 Contacts + 1 Coil per Line |
| Supply Voltage | 100–240 VAC |
|---|---|
| Power Dissipation | 5 VA |
| Digital Inputs | 8 |
| Analog Inputs | Not Available |
| Digital Outputs | 4 Relay Outputs |
| Analog Outputs | Not Available |
| Output Continuous Current | 8 A |
| Short-Circuit Protection (cos φ = 1) | Line Protection B16, 600 A |
| Short-Circuit Protection (cos φ = 0.5–0.7) | Line Protection B16, 900 A |
| Real-Time Clock | Not Available |

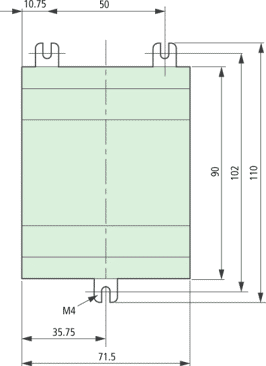

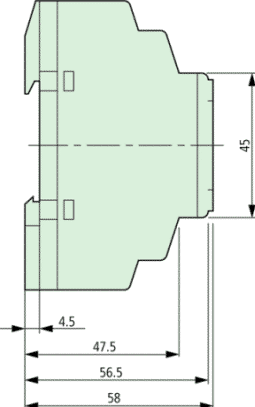

| Dimensions (W × H × D) | 2.85 × 3.5 × 2.3 in |
