Eaton / Moeller Series
Communication Module 24 V DC, 2 W, compact

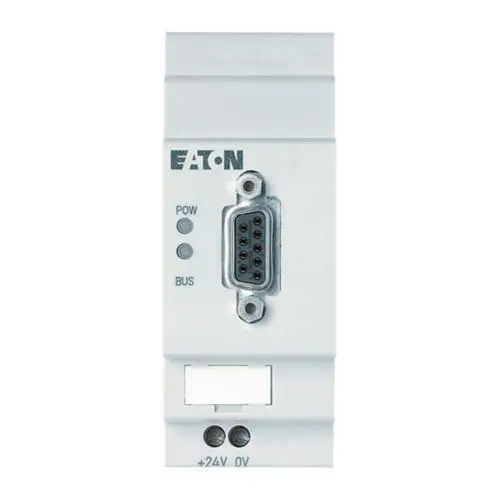

The Eaton/Moeller EASY204-DP is a Profibus DP communication module designed for integration with easy control relays. Operating at 24 V DC with low power dissipation (2 W), it allows connection of up to 126 stations at distances of up to 1200 m. Supporting the transfer of up to 20 bytes per station per bus cycle, the module provides enhanced automation flexibility—enabling parameter sets, recipes, time values, counters, and setpoints to be read, monitored, or exchanged over the bus. Its compact housing ensures space-saving installation, while compatibility with optional accessories such as MFD-TA-17 and MFD-CP8-NT extends functionality.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Manufacturer | Eaton / Moeller |
|---|---|
| Model | EASY204-DP |
| Function | Profibus DP Communication Module |
| Compatible With | Easy Control Relays |
| Accessories (sold separately) | MFD-TA-17, MFD-CP8-NT |
| Supply Voltage | 24 V DC |
|---|---|
| Power Dissipation | 2 W |
| Digital Inputs | – |
| Analog Inputs | – |
| Digital Outputs | – |
| Analog Outputs | – |
| LC Display / Keypad | No |
| Clock | Not included (Week/Year –) |
| Output Continuous Current | – |
| Short-Circuit Proof cos φ = 1 | – |
| Short-Circuit Proof cos φ = 0.5…0.7 | – |

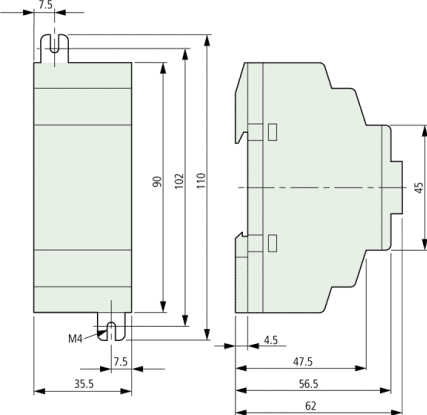

| Dimensions (W × H × D) | 1.37 × 3.50 × 2.25 in |
| Communication | Profibus DP |
| Max Transfer | 20 Bytes per station, per cycle |
| Max Stations | 126 |
| Max Distance | 1200 m |
