Eaton / Moeller Series

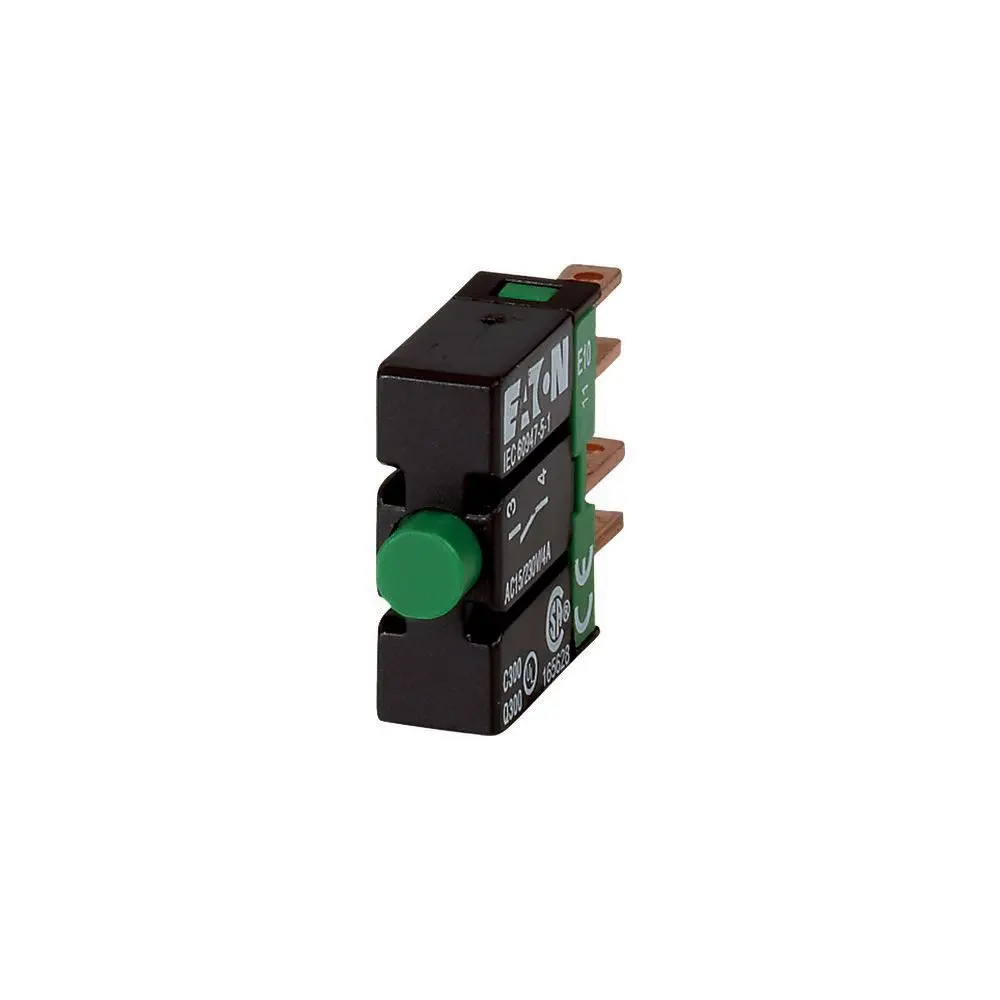

Eaton Moeller E10, 1 N/O, 6mm x 29mm x 18mm, 0.003kg, IP20
Eaton Moeller® series E10 Accessory Contact element, 1 N/O, Front fastening, Blade terminal. Catalog Number: 090351, Model Code: E10, EAN: 4015080903512. Product dimensions: Length 6 mm, Height 29 mm, Width 18 mm, Weight 0.003 kg. Rated operational current specifications include 4 A at AC-15, 110 V and 48 V, with various ratings for DC-13. Rated insulation voltage is 250 V and rated impulse withstand voltage is 4000 V AC.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Catalog Number | 090351 |
| Model Code | E10 |
| Product Length/Depth | 6 mm |
| Product Height | 29 mm |
| Product Width | 18 mm |
| Product Weight | 0.003 kg |
| Mounting Method | Front fastening |
| Connection Type | Blade terminal |
| Operating Frequency | 3600 Operations/h |
| Pollution Degree | 3 |
| Actuating Force - Max | 3 N |
| Ambient Operating Temperature - Max | 60 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Short-Circuit Current (IQ) | 1 kA |
| Specification | Value |
|---|---|
| Rated Operational Current (IE) at AC-15, 110 V | 4 A |
| Rated Operational Current (IE) at AC-15, 48 V | 4 A |
| Rated Operational Current (IE) at DC-13, 110 V | 0.5 A |
| Rated Operational Current (IE) at DC-13, 220 V, 230 V | 0.2 A |
| Rated Operational Current (IE) at DC-13, 24 V | 1.5 A |
| Rated Operational Current (IE) at DC-13, 42 V | 1 A |
| Rated Operational Current (IE) at DC-13, 60 V | 0.8 A |
| Rated Insulation Voltage (UI) | 250 V |
| Rated Impulse Withstand Voltage (UIMP) | 4000 V AC |
| Short-Circuit Protection Rating | Max. 10 A gG/gL, Fuse, Contacts |
| Control Circuit Reliability | 1 failure per 10,000,000 switching operations (at 24 V DC/5 mA) |
| Degree of Protection | IP20, with Insulated ferrule ISH2,8 |
| Lifespan, Mechanical | 100,000,000 Operations |
