Eaton / Moeller Series
18A, 3P, contactor, 3NO + 2NC auxiliary contacts, 230 V AC 50 Hz / 240 V AC 60 Hz coil, UL/CSA/IEC

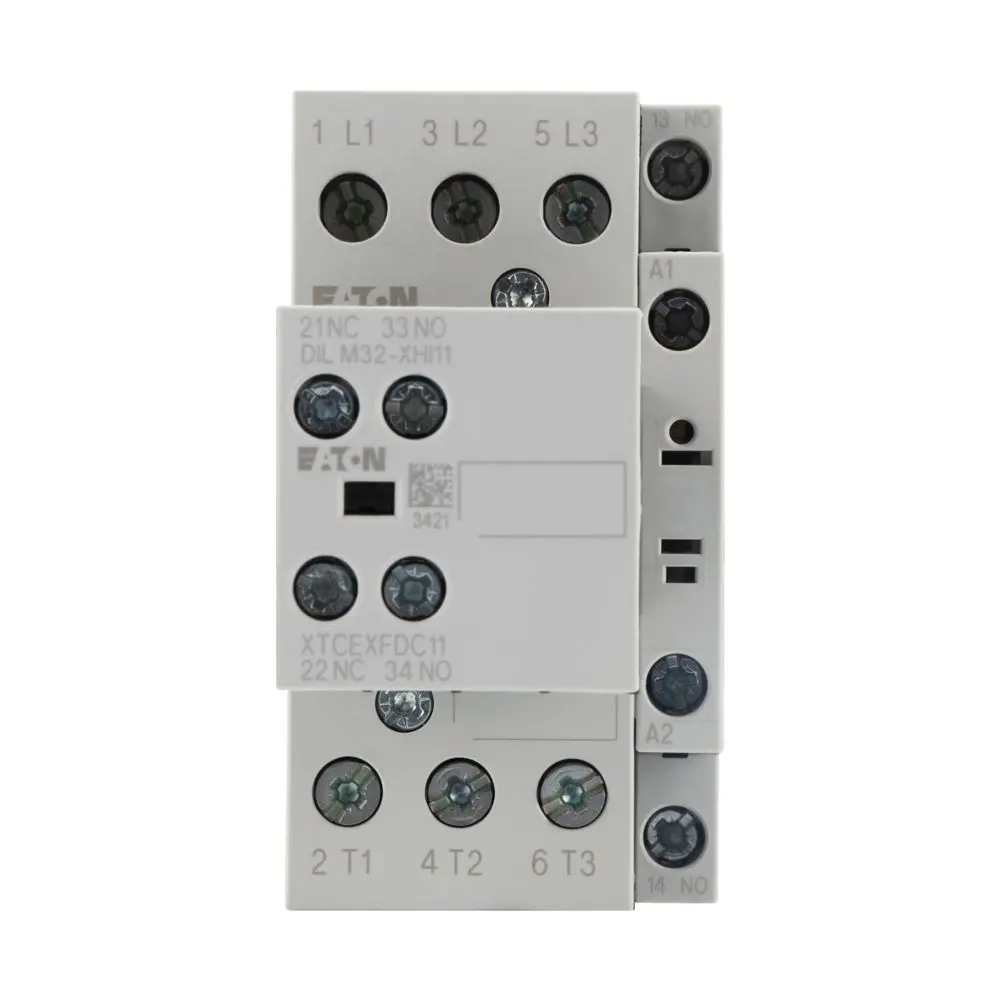

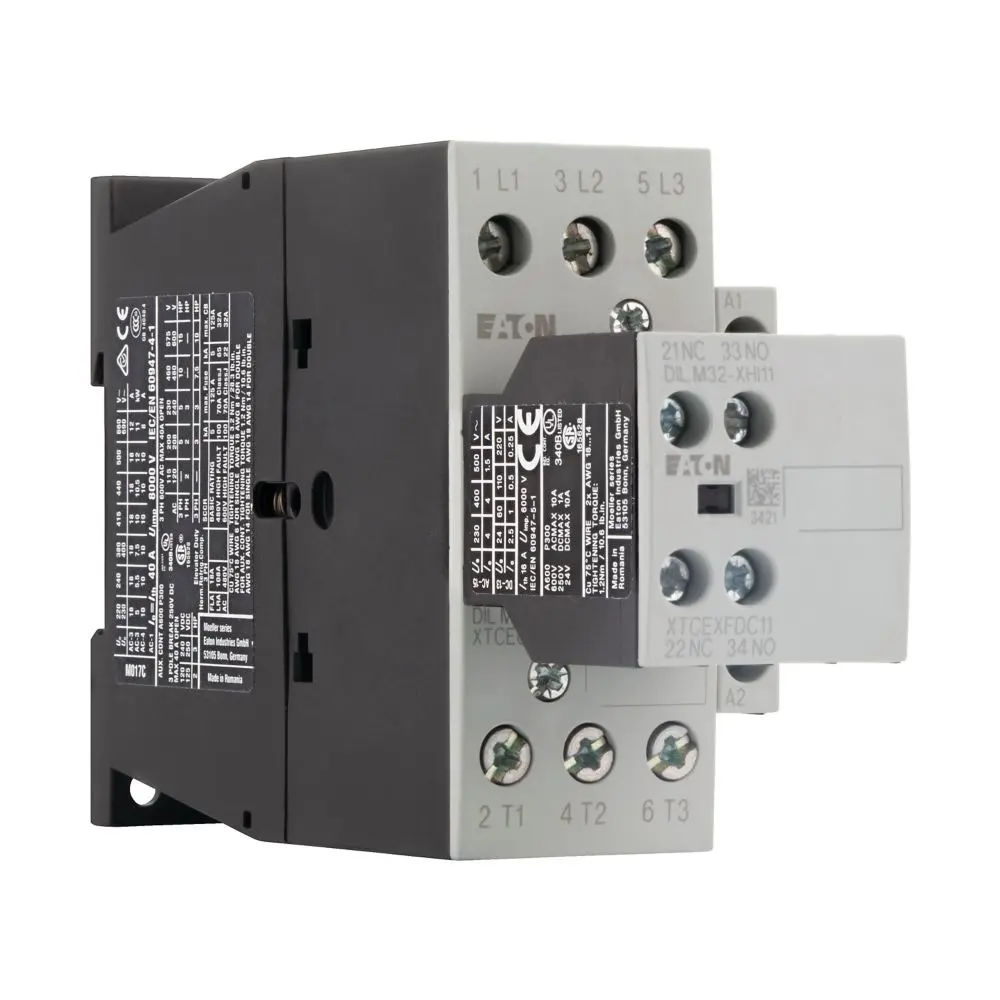

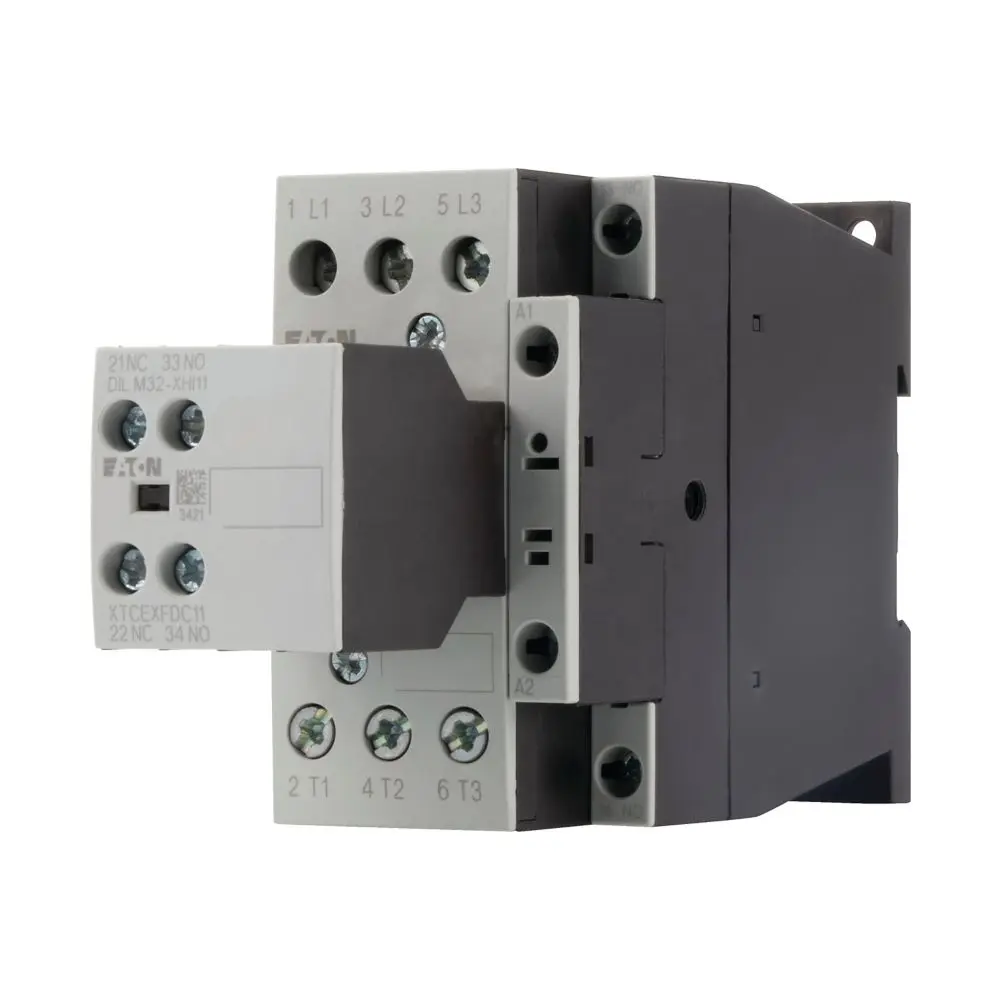

The Eaton Moeller® DILM17-32 (230V50HZ, 240V60HZ) is an 18 A, 3-pole AC contactor designed for industrial motor control under AC-3 duty. It supports three-phase motors rated up to 7.5 kW (400 V AC) or 10 HP (460 V AC). The unit includes three normally open (NO) and two normally closed (NC) auxiliary contacts and operates with a 230 V AC (50 Hz) or 240 V AC (60 Hz) coil. Featuring screw-type terminals and a mechanical lifespan exceeding 10 million operations, this contactor provides dependable performance in harsh environments. Certified to UL, CSA, and IEC/EN 60947-4-1 standards, it ensures long-term reliability and global compliance for motor control and automation applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Model | DILM17-32 (230V50HZ, 240V60HZ) |
| Article Number | 277100 |
| EAN | 4015082771003 |
| Product Type | Contactor |
| Poles | 3 |
| Auxiliary Contacts | 3 NO + 2 NC |
| Rated Operational Current (Ie) | 18 A |
| Coil Voltage | 230 V AC 50 Hz / 240 V AC 60 Hz |
| Connection Type | Screw terminals |

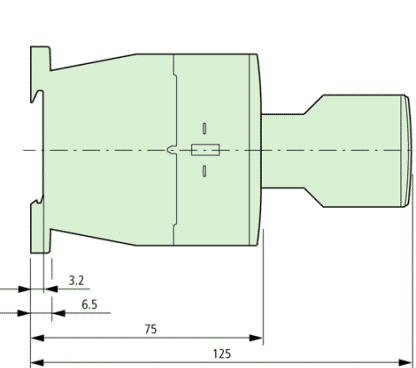

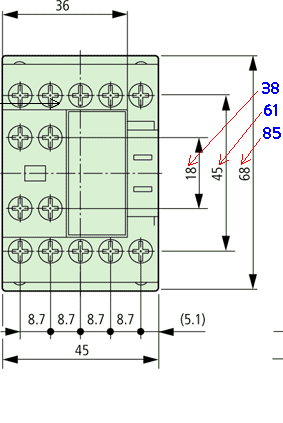

| Dimensions (H × W × D) | 85 × 45 × 138 mm |
| Weight | 0.503 kg |
| Protection Degree | IP00 (front finger-safe per EN 50274) |
| Mounting Type | Panel mount / DIN rail |
| AC-3 Power Rating (230 V / 400 V / 440 V / 500 V) | 5.5 kW / 7.5 kW / 10.5 kW / 12 kW |
|---|---|
| Motor Power (UL / CSA 230 V / 460 V / 600 V) | 5 HP / 10 HP / 15 HP |
| Rated Operational Voltage (Ue) | 690 V AC max |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Thermal Current (Ith @ 40 °C open) | 40 A |
| Utilization Categories | AC-1, AC-3, AC-4 |
| Short-Circuit Protection (Type 1 / Type 2) | 63 A gG/gL @ 400 V / 35 A gG/gL @ 400 V |
| Mechanical Durability | 10 million operations |
| Electrical Durability (AC-3) | 1 million operations |
| Switching Frequency (Mechanical) | 5000 ops/hour |
| Coil Power Consumption | 52 VA (pick-up) / 7.1 VA (sealing) |
| Operating Temperature Range | −25 °C to +60 °C |
| Storage Temperature Range | −40 °C to +80 °C |
| Altitude Rating | ≤ 2000 m |
| Arc Time | 10 ms |
| Shock Resistance | Up to 10 g (IEC/EN 60068-2-27) |
| Duty Factor | 100 % |
| Certifications | UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, IEC/EN 60947-4-1, VDE 0660, CE |
