Eaton

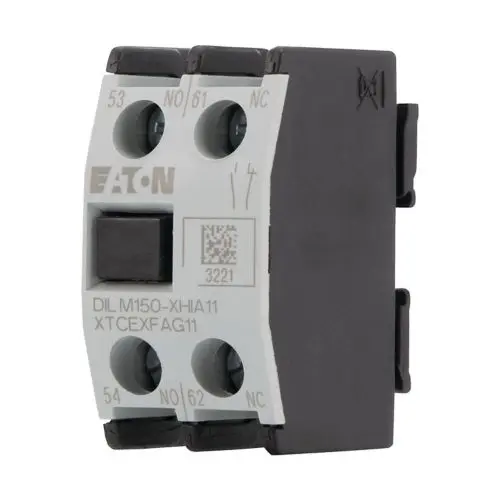

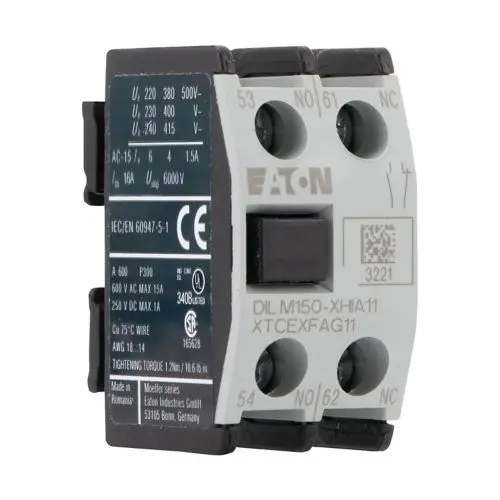

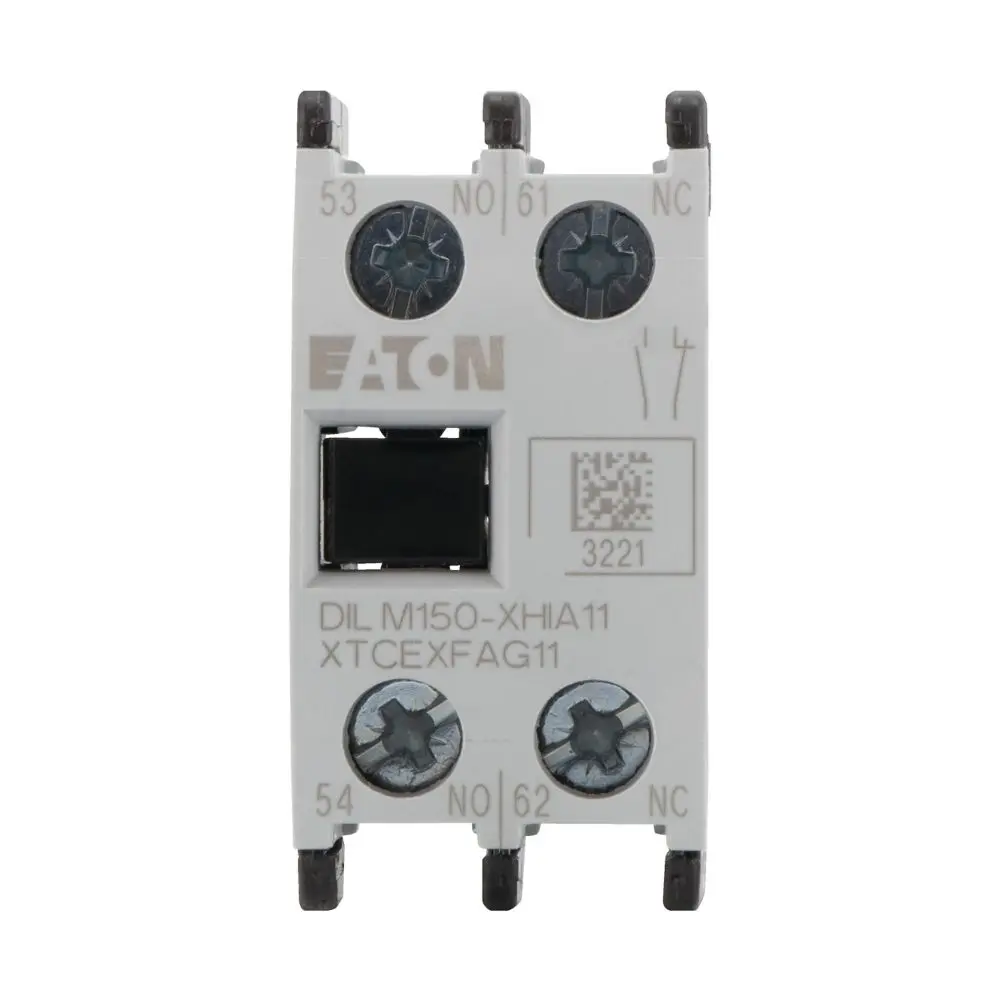

Eaton DILM auxiliary contact module, 2 pole, 16 A, IP20, 39x46x24 mm, 0.03 kg
Eaton Moeller® series DILM auxiliary contact module, Catalog Number 283463, Model Code DILM150-XHIA11, EAN 4015082834630, Front mounting auxiliary contact, 2 pole, Ith= 16 A, 1 N/O, 1 NC, Front fixing, Screw terminals, DILM40 - DILM170, XHIA.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILM auxiliary contact module |
| Catalog Number | 283463 |
| Model Code | DILM150-XHIA11 |
| EAN | 4015082834630 |
| Product Length/Depth | 39 mm |
| Product Height | 46 mm |
| Product Width | 24 mm |
| Product Weight | 0.03 kg |
| Mounting Method | Front fastening |
| Connection | Screw terminals |
| Degree of Protection | IP20 |
| Overvoltage Category | III |
| Specification | Value |
|---|---|
| Type | Front mounting auxiliary contact |
| Features | Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L) |
| Temperature Rise | Panel builder's responsibility |
| Short-Circuit Rating | Panel builder's responsibility |
| Electromagnetic Compatibility | Panel builder's responsibility |
| Mechanical Function | Meets requirements if IL is observed |
| Corrosion Resistance | Meets product standard's requirements |
| Degree of Protection | IP20 |
| Rated Impulse Withstand Voltage (UIMP) | 6000 V AC |
| Control Circuit Reliability | λ < 5 x 1/10⁷ |
| Pollution Degree | 3 |
| Climatic Proofing | Damp heat, cyclic, to IEC 60068-2-30 |
| Ambient Operating Temperature - Max | 60 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Rated Operational Current (IE) | 3 A at 110 V, DC L/R ≤ 15 ms |
| Switching Capacity (Auxiliary Contacts, General Use) | 15 A, 600 V AC |
