Eaton / Moeller Series
Busbar Adapter, side-mounted, UL/CSA/IEC/CE

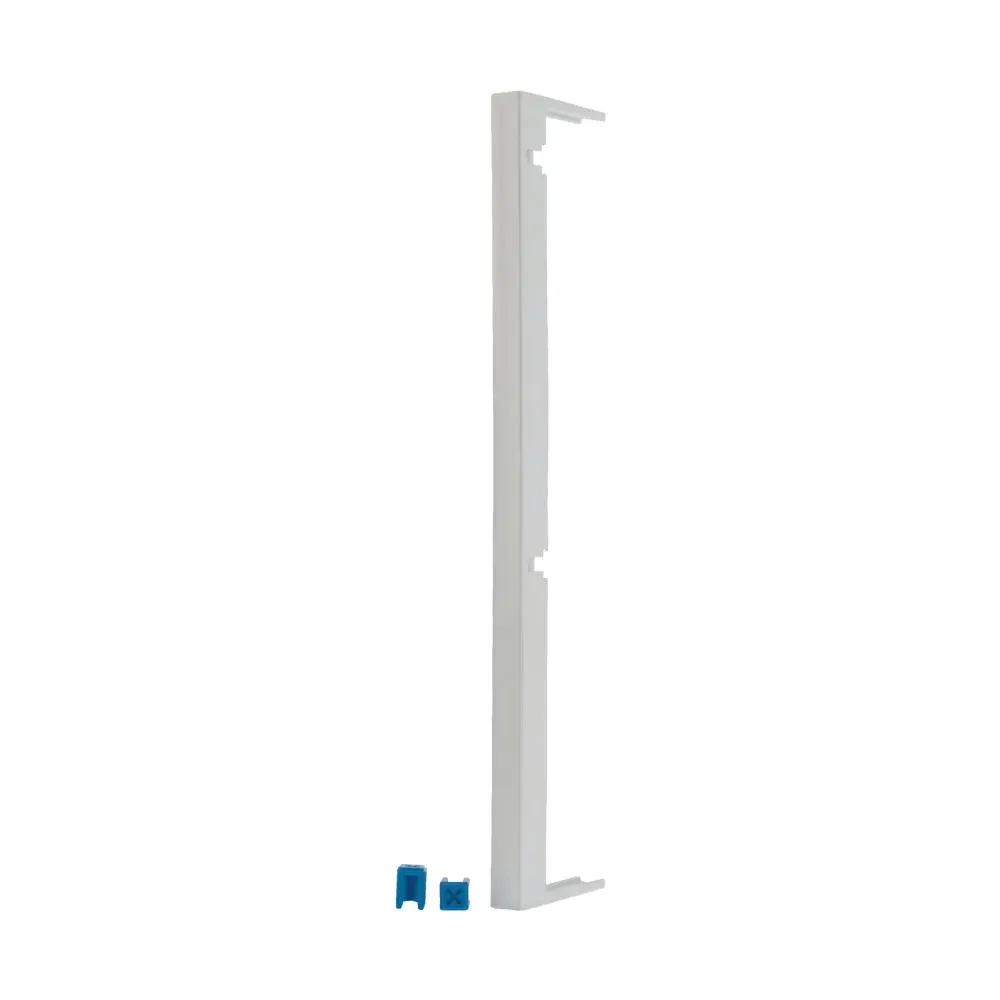

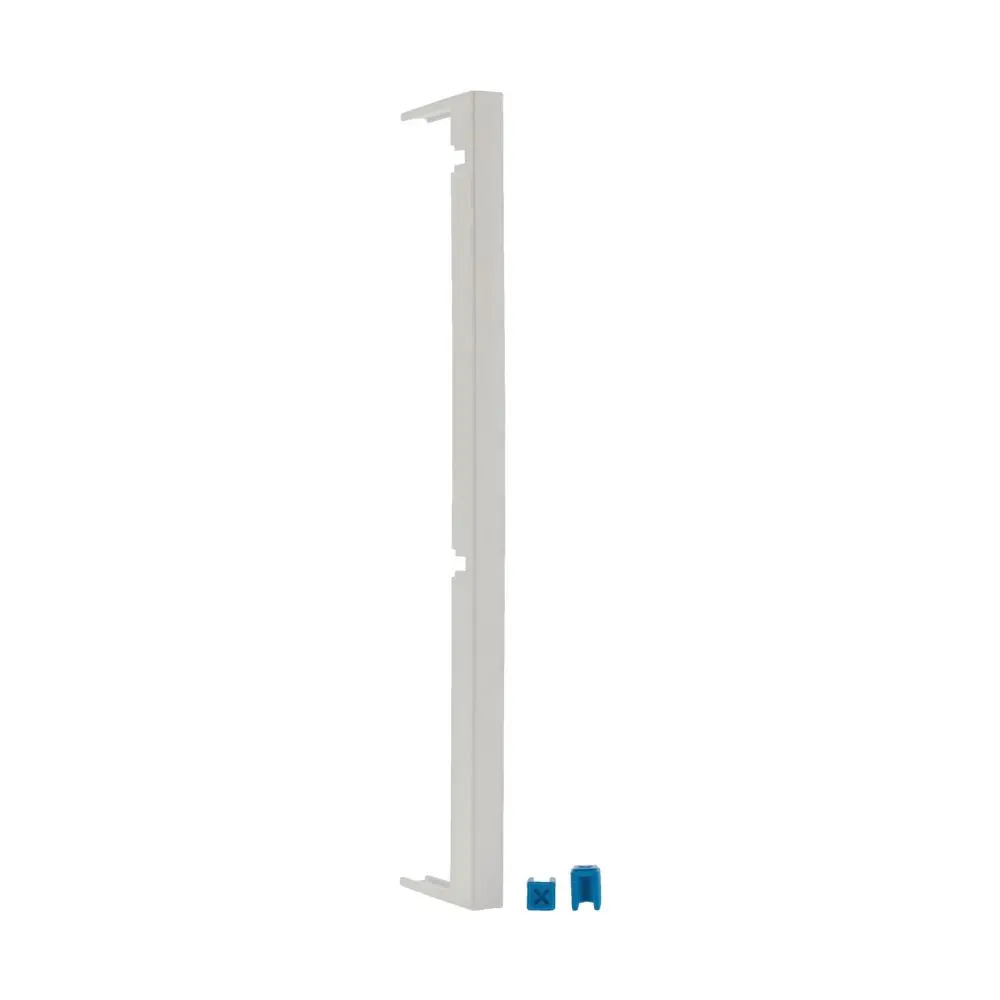

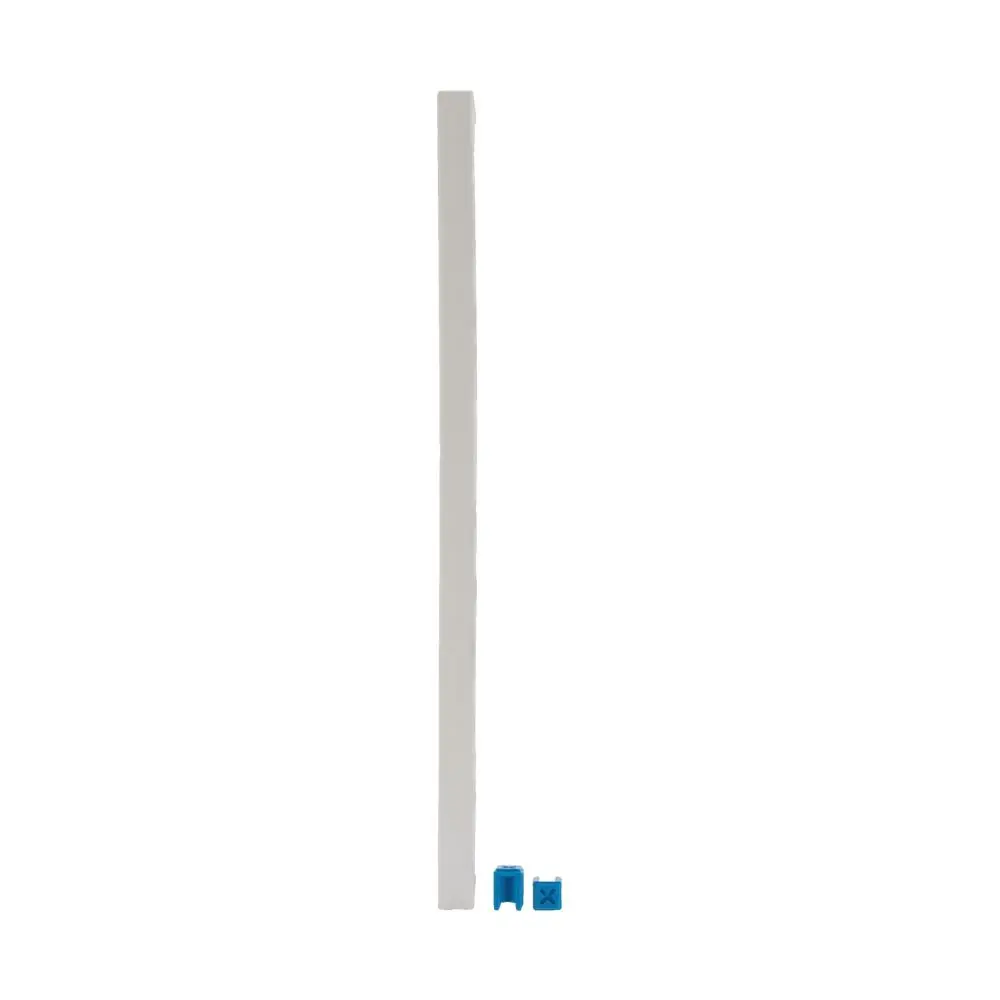

The Eaton BBA-XSM is a compact, 9 mm-wide busbar adapter designed for mounting on flat copper busbars with 60 mm center spacing and either 5 mm or 10 mm thickness. It is suitable for applications where no electrical contact is required. The adapter supports side-mounting modules on both sides and is certified to UL 508A, CSA-C22.2 No. 14, IEC 60439-1, and CE standards. It offers mechanical stability and environmental resistance per IEC/EN 61439, with an operating temperature range from -25°C to +55°C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | BBA-XSM |
| Catalog Number | 101484 |
| Product Type | Busbar Adapter |
| Adapter Width | 9 mm |
| Adapter Length | 200 mm |
| Mounting | Side-mounted, suitable for 60 mm spaced flat Cu-busbars |
| Compatible Busbar Thickness | 5 mm / 10 mm |
| Rated Current | 0 A (non-electrical contact) |
|---|---|
| Max. Voltage Rating | 600 V AC |
| Operating Temperature | -25°C to +55°C |
| Heat Dissipation | 0 W (static) |
| Standards | UL 508A, CSA-C22.2 No. 14, IEC 60439-1, CE |
| UL File Number | E300273 |
| UL Category Control No. | NMTR, NMTR7 |
| North America Certification | UL listed, certified for Canada |
| Corrosion Resistance | Meets IEC/EN 61439 requirements |
| UV Resistance | Yes |
