Eaton / Moeller Series
63A, 3-Phase, Commoning Link, insulated, short-circuit proof, UL/CSA/CE/IEC

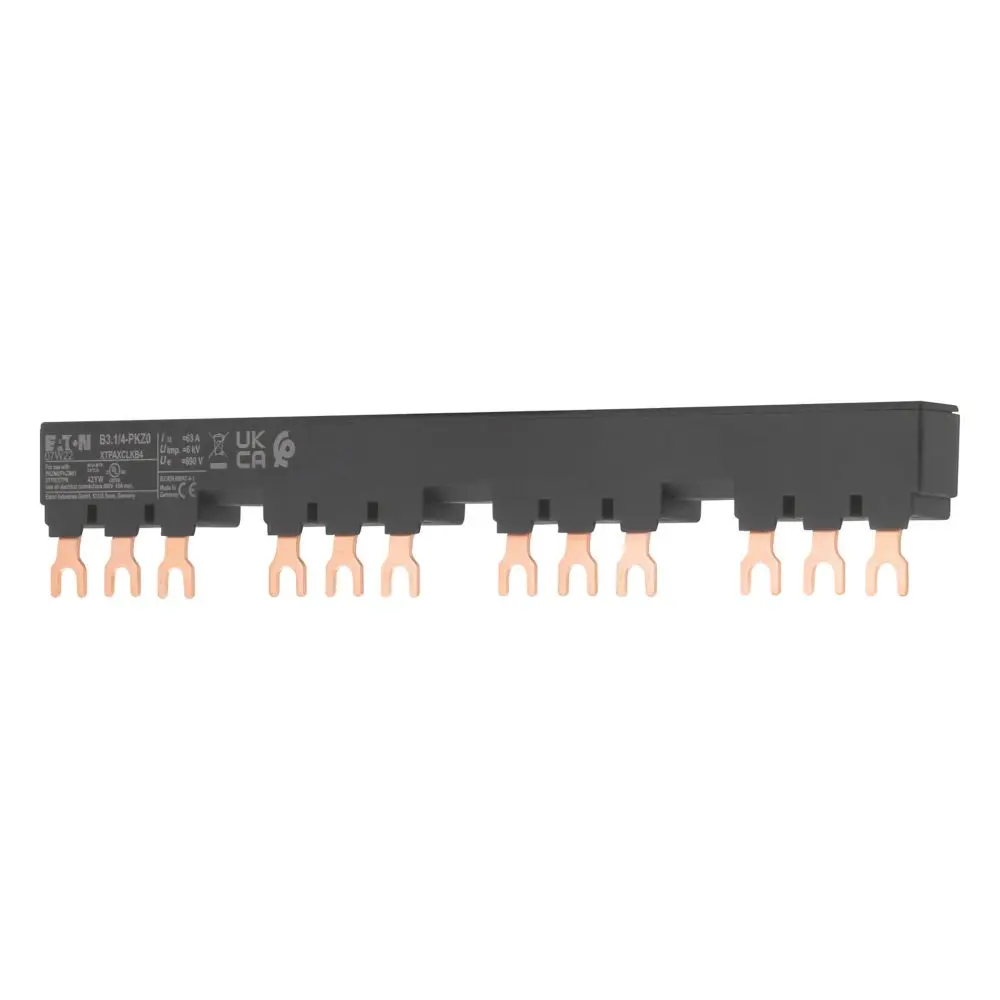

The Eaton/Moeller B3.1/4-PKZ0 is a 3-phase commoning link designed for use with PKZ0 and PKE motor-protective circuit-breakers. It supports up to four devices and allows for parallel power feed to terminals 1, 3, and 5. Rated for 63 A and up to 690 V AC, this accessory ensures safe and efficient power distribution. The unit measures 207 mm in length with a unit width of 45 + 9 mm, features fork-type insulated connections, and is short-circuit proof and protected against accidental contact. With a rated impulse withstand voltage of 6 kV, it complies with IEC/EN 61439 requirements and is certified to UL 508, CSA-C22.2 No. 14, IEC 60947-4-1, and CE standards, making it a dependable solution for installations requiring auxiliary or trip-indicating contacts.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | B3.1/4-PKZ0 |
| Series | PKZ0 Accessories |
| Product Type | 3-Phase Commoning Link |
| For Use With | PKZ0, PKE Motor-Protective Circuit-Breakers |
| Number of Devices | 4 |

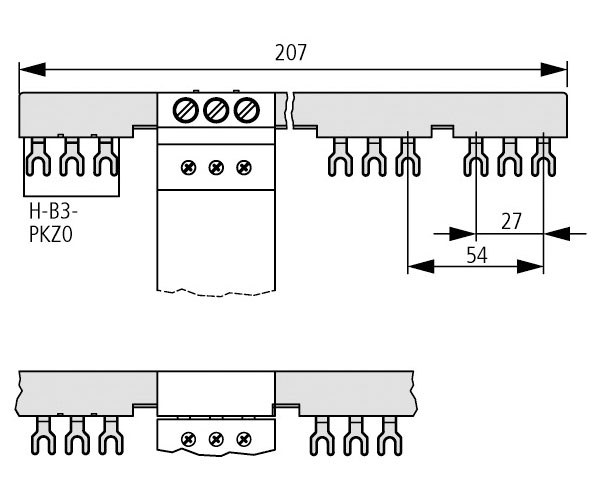

| Length | 207 mm |
| Unit Width | 45 + 9 mm |
| Connection Type | Fork |
| Insulated | Yes |
| Old Moeller Part Number | B3.1/4-PKZ0 |
| New Eaton Part Number | XTPAXCLKB4 |
| Phases | 3 |
|---|---|
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Uninterrupted Current (Iu) | 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Pitch Dimensions | 54 mm |
| Cross Section | 0 mm² |
| Short-Circuit Proof | Yes |
| Short-Time Withstand Current (Icw) | 0 kA |
| Conditioned Short-Circuit Current (Iq) | 0 kV |
| Suitable with N-Busbar | No |
| Suitable with Auxiliary Switch | No |
| Certifications | UL 508, CSA-C22.2 No. 14, IEC 60947-4-1, CE |
| UL File No. | E36332 |
| CSA File No. | 98494 |
| CSA Class No. | 3211-06 |
| North America Certification | UL Listed, CSA Certified |
