Eaton / Moeller Series
1NO + 1NC, position switch, spring-rod actuator, snap-action, IP65, IEC

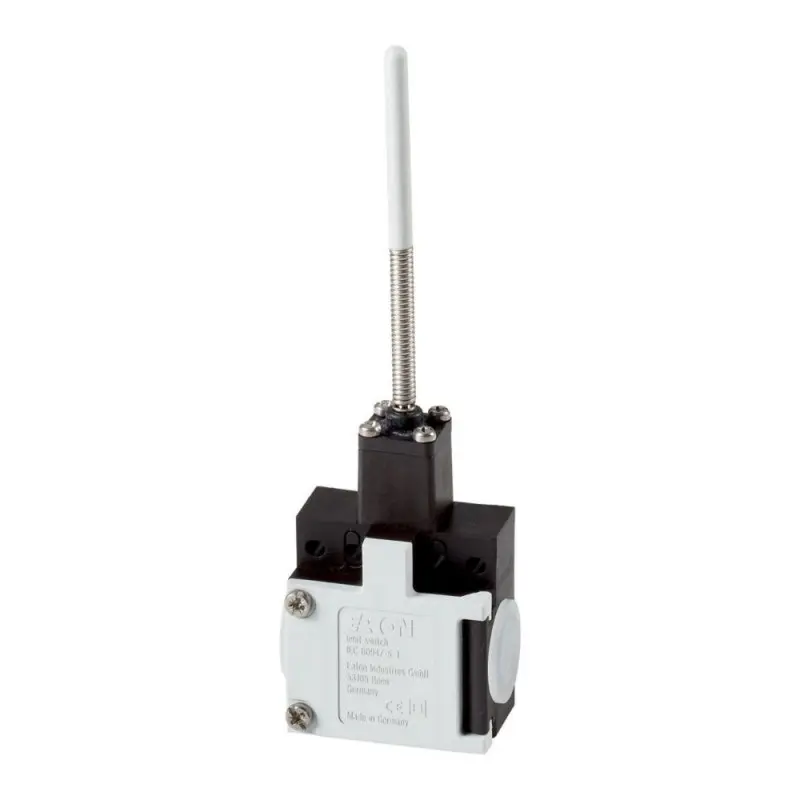

The Eaton AT0-11-S-IA/F is a position switch featuring one normally open (1NO) and one normally closed (1NC) contact with a snap-action mechanism. It includes a spring-rod actuator (160 mm length) designed for flexible operation in applications requiring wide or variable actuation angles. The switch features a durable insulated plastic housing with an IP65 protection rating, ensuring resistance to dust and water ingress. The operating head can be rotated in 90° increments to suit the actuation direction. Compliant with IEC/EN 60947 standards, it provides dependable performance for control and automation systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | AT0-11-S-IA/F |
| Catalog Number | 024205 |
| Product Type | Position Switch |
| Actuator Type | Spring-Rod Actuator |
| Actuator Length | 160 mm |
| Contact Configuration | 1NO + 1NC |
| Contact Type | Snap-action (Quick-break) |
| Enclosure Material | Insulated Plastic |
| Color | Grey Cover |
| Mounting Position | Any |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (AC-15) | 6 A @ 230 V AC |
| Rated Operational Current (DC-13) | 10 A @ 24 V DC |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 6 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Actuating Force | 8 N (start) / 20 N (end) |
| Operating Frequency | ≤ 6000 operations/hour |
| Ambient Temperature Range | −25 °C to +70 °C |
| Standards Compliance | IEC/EN 60947, IEC 60068 |
| Certifications | CE |
