Thermo magnetic, Release 3-Pole
Protection of Systems and Cables
Terminals Standard, terminal screws as accessories

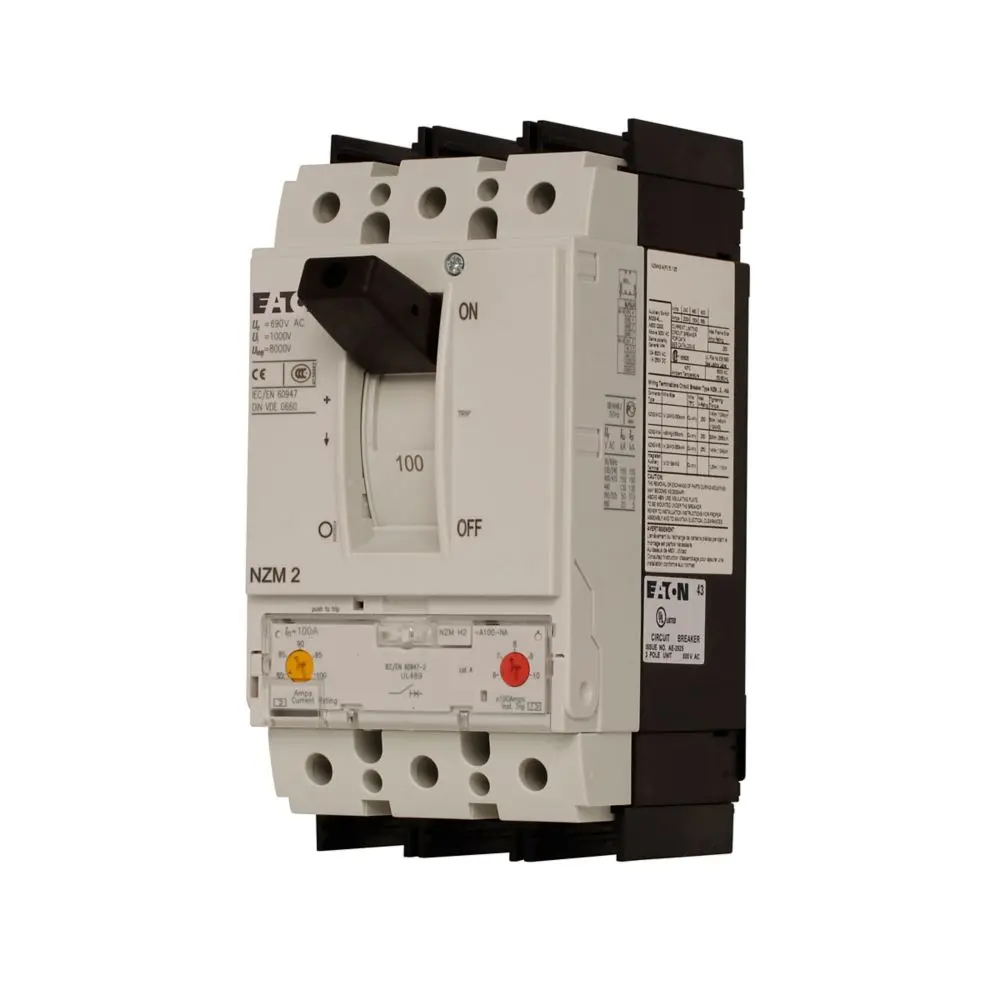

Eaton Moeller NZMH2
Circuit Breaker Index
Eaton Moeller NZMH2 Circuit Breakers
NZMH2 Breakers, Adjustable Thermal Trip
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Thermal Trip | Magnetic Trip |
| 107797 | NZMH2-A20-BT-NA | 20 | 15 - 20 | 350 |
| 107798 | NZMH2-A25-BT-NA | 25 | 20 - 25 | |
| 107799 | NZMH2-A32-BT-NA | 32 | 25 - 32 | |
| 107800 | NZMH2-A40-BT-NA | 40 | 32 - 40 | 320 - 400 |
| 107801 | NZMH2-A50-BT-NA | 50 | 40 - 50 | 300 - 500 |
| 107802 | NZMH2-A63-BT-NA | 63 | 50 - 63 | 380 - 630 |
| 107803 | NZMH2-A80-BT-NA | 80 | 63 - 80 | 480 - 800 |
| 107804 | NZMH2-A100-BT-NA | 100 | 80 - 100 | 600 - 1000 |
| 107805 | NZMH2-A125-BT-NA | 125 | 100 - 125 | 750 - 1250 |
| 107806 | NZMH2-A160-BT-NA | 160 | 125 - 160 | 960 - 1600 |
| 107807 | NZMH2-A200-BT-NA | 200 | 160 - 200 | 1200 - 2000 |
| 107808 | NZMH2-A250-BT-NA | 250 | 200 - 250 | 1500 -2500 |
NZMH2 Breakers, Fixed Thermal trip
Thermo magnetic, Release 3-Pole
Protection of Systems and Cables
Terminals Standard, terminal screws as accessories
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Thermal Trip | Magnetic Trip |
| 107809 | NZMH2-AF15-BT-NA | 15 | 15 | 350 |
| 107810 | NZMH2-AF20-BT-NA | 20 | 20 | |
| 107811 | NZMH2-AF25-BT-NA | 25 | 25 | |
| 107812 | NZMH2-AF30-BT-NA | 30 | 30 | |
| 107813 | NZMH2-AF35-BT-NA | 35 | 35 | 320 - 400 |
| 107814 | NZMH2-AF40-BT-NA | 40 | 40 | |
| 107815 | NZMH2-AF45-BT-NA | 45 | 45 | 300 - 500 |
| 107816 | NZMH2-AF50-BT-NA | 50 | 50 | |
| 107817 | NZMH2-AF60-BT-NA | 60 | 60 | 380 - 630 |
| 107818 | NZMH2-AF70-BT-NA | 70 | 70 | 480 - 800 |
| 107819 | NZMH2-AF80-BT-NA | 80 | 80 | |
| 107820 | NZMH2-AF90-BT-NA | 90 | 90 | 600 - 1000 |
| 107821 | NZMH2-AF100-BT-NA | 100 | 100 | |
| 107644 | NZMH2-AF110-BT-NA | 110 | 110 | 750 - 1250 |
| 107645 | NZMH2-AF125-BT-NA | 125 | 125 | |
| 107646 | NZMH2-AF150-BT-NA | 150 | 150 | 960 - 1600 |
| 107647 | NZMH2-AF175-BT-NA | 175 | 175 | 1200 - 2000 |
| 107648 | NZMH2-AF200-BT-NA | 200 | 200 | |
| 107649 | NZMH2-AF225-BT-NA | 250 | 250 | 1500 - 2500 |
| 107650 | NZMH2-AF250-BT-NA | 250 | 250 |
