Click here to return to the NZM4 Summary Page |

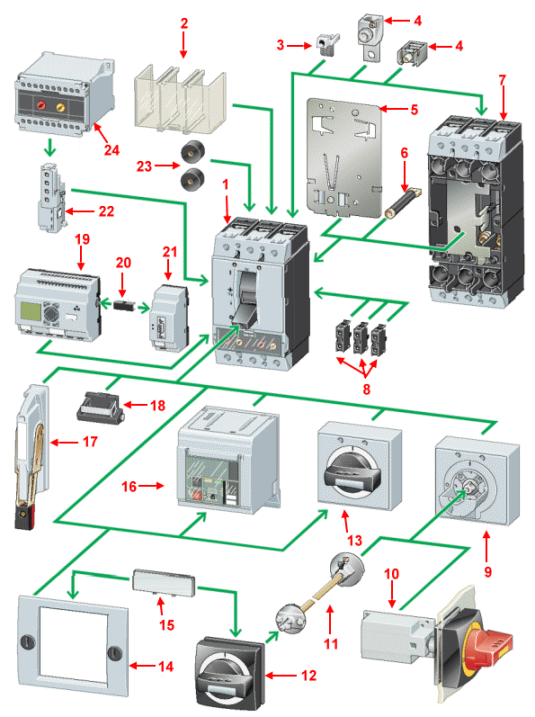

| 1. | Circuit Breaker or Disconnect Switch |
| 2. | Terminal Cover |
| 3. | Control Circuit Terminal |
| 4. | Terminals |
| 5. | Clip Plate |
| 6. | Rear Connection |
| 7. | Plug-in and withdraw able Unit |
| 8. | Standard Auxiliary Contacts or Trip Indicating Auxiliary Contact |
| 9. | Door Coupling Rotary Handle with Extension Shaft |
| 10. | Main Switch Rotary Handle for Side Panel Mounting |
| 11. | Extension Shaft |
| 12. | Door Coupling Rotary Handle |
| 13. | Rotary Handle |
| 14. | Insulating Surrounds |
| 15. | External Warning Plate |
| 16. | Remote Operator |
| 17. | Side Operator Handle |
| 18. | Toggle Lever Interlock Device |
| 19. | Data Management Interface (DMI Module) |
| 20. | EASY-LINK-DS Data Plug |
| 21. | PROFIBUS Interface |
| 22. | Voltage Release |
| 23. | Spacers |
| 24. |
Delay Unit for Under-voltage Releases
|
