Moeller NZM4 Circuit Breaker
Operating Elements

Main switch assembly kit


Equipment supplied:

  • Rotary door-coupling handle
  • NZM...-XV4 extension shaft
  • External warning plate/designation label in German/English
  • Black and yellow flash
  • For enhanced protection against direct contact on the incomer side, IP2X protection against contact with a finger can be ordered
  • Other external warning plates/designation labels can be clipped on.

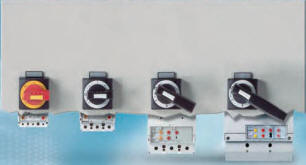

Circuit Breaker Operating Elements

Part Name Color Description
NZM4-XHBR NZM4 Door Coupling Handle Lockable on the 0 position on the handle using up to 3 padlocks. Lockable door as additional feature, locking facility on circuit-breaker in 0 position.
NZM4-XHB NZM4 Door Coupling Handle Lockable on the 0 position on the handle using up to 3 padlocks, can also be modified for the I position. With door interlock.

Rotary handle on circuit-breaker

Part Name Color Description
NZM4-XDV NZM4 Door Coupling Handle Lockable on the 0 position on the switch using up to 3 padlocks.
NZM4-XDVR NZM4 Door Coupling Handle

Door Coupling Rotary Handle


NZM4 Door Coupling Handle


Complete including rotary drive and coupling parts
An additional extension shaft is necessary with the NZM...-XT(V)D(V)(R)(-60) types.
Degree of protection IP66/UL/CSA Type 4X

Part Name Color Description
For a max. shaft length of 60 mm
NZM4-XTVDV-60 NZM4 Door Coupling Handle Lockable on the handle on the switch using up to 3 padlocks. Can be locked in 0 position on the handle, with adequate modification also in I position. With door interlock. Lockable in the 0 position
NZM4-XTVD-60 Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock
NZM4-XTVDVR-60 NZM4 Door Coupling Handle
(black shown, handle red and yellow) 		Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle. With door interlock. Lockable in the 0 position .
NZM4-XTVD NZM4 Door Coupling Handle Lockable on the handle on the switch using up to 3 padlocks. Can be locked in 0 position on the handle, with adequate modification also in I position. With door interlock. Lockable in the 0 position  Also available with door interlock e.g. for MCC service distribution.
NZM4-XTVDVR NZM4 Door Coupling Handle
(black shown, handle red and yellow) 		Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle. With door interlock. Lockable in the 0 position
Extremely narrow fittings
NZM4-XTVD-0 NZM4 Door Coupling Handle Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock.
NZM4-XTVDV-0 Lockable on the handle on the switch using up to 3 padlocks. Can be locked in 0 position on the handle, with adequate modification also in I position. With door interlock. Lockable on the switch in the 0 position.
NZM4-XTVDVR-0 NZM4 Door Coupling Handle
(black shown, handle red and yellow) 		Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle. With door interlock. Lockable in the 0 position

Extension Shaft

Part Name Description
NZM3/4-XV4 NZM4 Extension Handle Max. mounting depth: 400 mm
NZM3/4-XV6 Max. mounting depth: 600 mm

Add On Handle

Part Name Description
NZM3/4-XDZ NZM4 Add-on Handle Enables switching when the control panel door is open
