Eaton/Moeller
FAK-R/KC02/I
Foot and Palm Switch

FAK-R/KC02/I Shown

FAK-R/KC02/I

2-Normally Closed Contacts

  • Momentary Contact Closure
  • Oversized operator in black
  • Button integrated directly into an enclosure
  • Base mounting contact blocks allow for simple wiring and installation
  • More than one million mechanical operations on momentary and 100,000 on maintained operators

Product Description

Eaton’s FAK-R/KC02/I palm switches are an oversized button that mount directly to an enclosure base. This allows for a standalone button that can be mounted anywhere. The enclosure uses base-mounted contact blocks, which allows for quick wiring and mounting. The FAK-R/KC02/I is a complete device, including the enclosure and contact blocks.

Foot & Palm Switch Individual Components

Component Release
Type 		Part
Number
FAK-S Momentary FAK-S
FAK-R Momentary FAK-R
FAK-Y Momentary FAK-Y
FAK-R/V/Y Maintained
(Pull-to-release) 		FAK-R/V/Y
Indicating
Light 		Color Part
Number
FAK Indicator Light Assembly White L-W
Red L-R
Green L-G
Yellow L-Y

Can be fitted in M20/M25 knockout in enclosure base. For filament and neon bulbs up to 2.4 W

Cable Gland Description Part Number
Cable Gland used with FAK Foot & Palm Switch IP68, IP69K
External diameter of cable
6 – 13 m 		V-M20

Cable Gland (optional)

Enclosure
Base 		Color Part
Number
FAK Enclosure Base - FAK-IU Black FAK-IU

Screw Terminals

Contact Blocks Contact Type Part
Number
M22-KC10 Contact Block 1NO M22-KC10
M22-KC01 Contact Block 1NC (→) M22-KC01

Base Mounted, (→) = positive driven contact

Cage Clamp Terminals

Contact Blocks Contact Type Part
Number
M22-CKC10 Contact Block 1NO M22-CKC10
M22-CKC01 Contact Block 1NC (→) M22-CKC01

Base Mounted, (→) = positive driven contact

Part Number Selection Guide

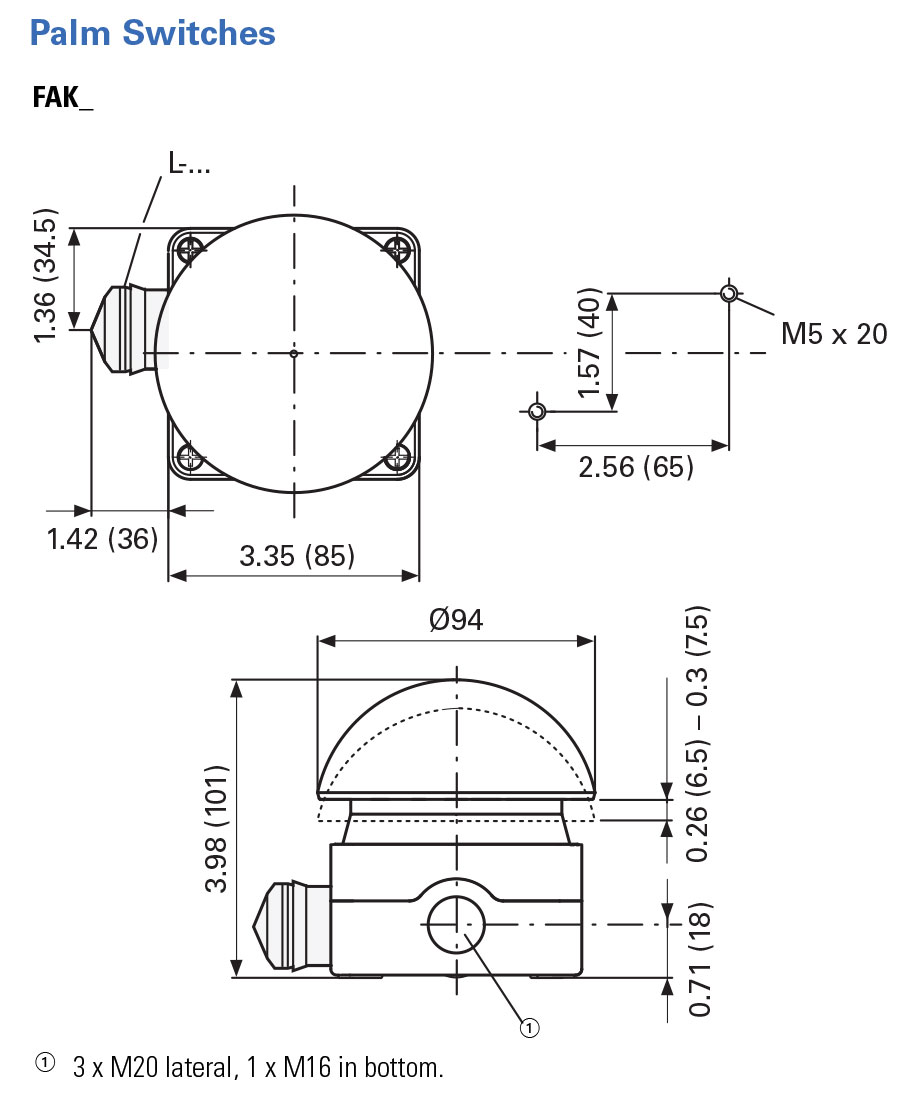

FAK-R/KC02/I - Dimensions

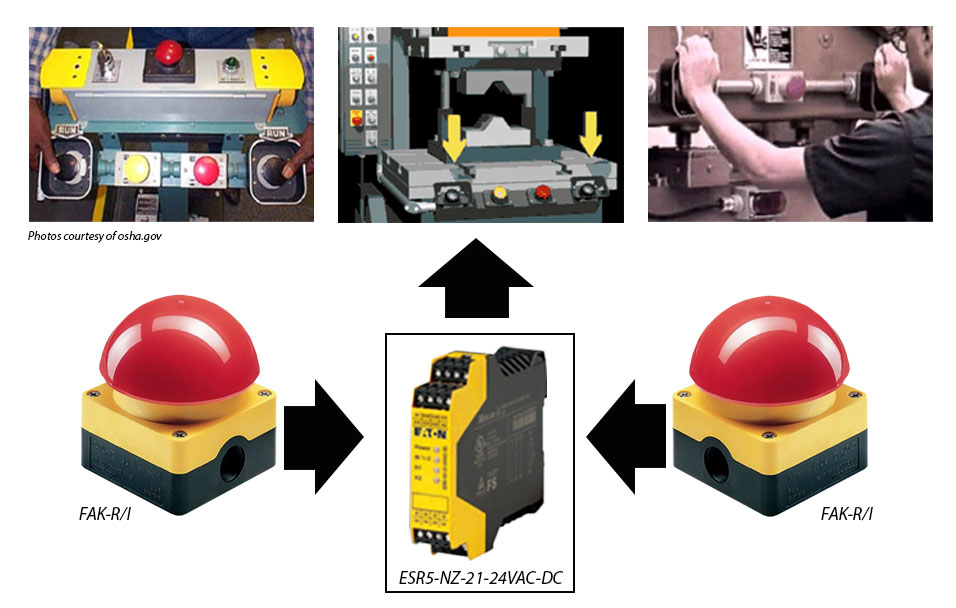

Industrial Application Example - 2-Handed Operation
