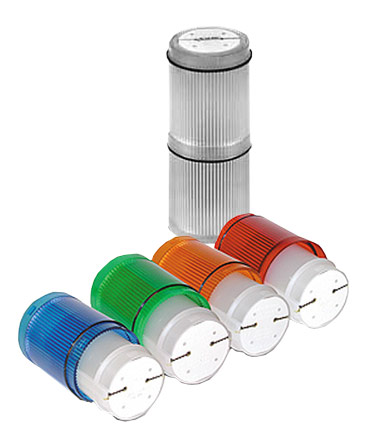

Eaton E26B0 Clear Light/LED Module without Bulb or LED

Clear Light/LED Module

Color = Clear

Illumination Type =
Incandescent Steady or Flashing

Series Part Numbers

LED/Lamp
Voltage 		Lens
Color 		Incandescent
Steady or
Flashing 		Cylindrical
LED
Steady
Only 		Cluster
LED
Steady 		Cluster
LED
Flashing 		Xenon
Flashing
Without bulb
or LED 		Red E26B2 E26BR E26BR E26BR —
Green E26B3 E26BG E26BG E26BG —
Yellow E26B4 E26BY E26BY E26BY —
Blue E26B6 E26BB E26BB E26BB —
Amber E26B9 E26BA E26BA E26BA —
Clear E26B0 E26BW E26BW E26BW —

Technical Data and Specifications

Description Specification
Mechanical Ratings
Shock (IEC 68-2-27) 11 ms, 15g
Vibration (IEC 68-2-6) 10 sweeps 10–150 Hz, 2g
Bump (IEC 68-2-29) 1000 pulses, 6 ms, 15g
Climate Conditions
Operating Maximum 104°F (40°C) at 95% RH,
Temperature –4° to 140°F (–20° to 60°C)
Storage Temperature –40° to 176°F (–40° to 80°C)
Materials
Cover Polycarbonate
Lenses Polycarbonate
Stacklight base Nylon
Extension tubes Aluminum
Mounting base Zinc die cast
Terminals
Single conductor 14–30 AWG (2.5–0.05 mm 2 )
Two conductors (same size) 18–26 AWG (0.75–0.14 mm 2 )
Do not mix solid and stranded wire in the same termina
Recommended tightening torque 4.4–5.3 lb-in (0.5–0.6 Nm)
Electrical Ratings
Insulation voltage (U i ) 690V
Operational voltage (U e ) 250V
Impulse withstand voltage (U imp ) 1.5 kV
Bulb Specifications
Incandescent lamp type BA15d
Maximum lamp wattage 6W
Bulbs—average life
Incandescent 		7,000 to 12,000 hrs. (based on voltage)
Xenon flasher 20,000 hrs.
LED 60,000 to 100,000 hrs. (based on colors)
LED/Incandescent Comparison
Incandescent lamps Average operating life of 7,000 hours
Each lamp can be used with any color lens
Low cost results in short term savings
LED lamps Average operating life of 60,000 to 100,000 hours
Low power consumption
Extended life results in long-term savings

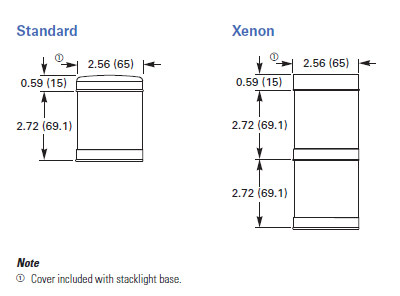

Dimensions
