Moeller DILR Accessories

PART #	CONTACTOR FOR USE ON	DESCRIPTION	FUNCTION
VS1DIL	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G	Interface Modules	For energizing of relays and contactors from lowlevel 24V DC inputs. The VS 1 and VS 2 plug directly into the DIL R coil terminals, whereas the ETS4-VS 3 mounts separately on a DIN rail and is suitable for all relays. In cases where the rated coil current of a device exceeds 2A, use a DIL ER-G as an interface relay. The output on VS2DIL and the input on ETS4-VS3 are equipped with an internal suppressor circuit.
VS2DIL
VGBDIL24	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G	Varistor suppressors	For AC operated 50-60 Hz and DC operated relays .
VGBDIL48
VGBDIL250
VGBDIL415
RCBDIL48	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G	RC Suppresors	For AC operated 50-60 Hz.
RCBDIL250
RCBDIL415
FDBDIL	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G	Free Wheel Diode Suppressor	For DC Operated relays Longer drop-out delay of coil should be taken into consideration.
V0DIL	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G	Spacers	Provides a mechanical link between groups of components to better secure them when mounted and wired together in an assembly.
V5/15DIL
BT480	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G DILER-40 DILER-40-G DILER-31 DILER-31-G DILER-22 DILER-22-G	Paralleling Bridge	Not insulated, comes in a standard quantity of 100

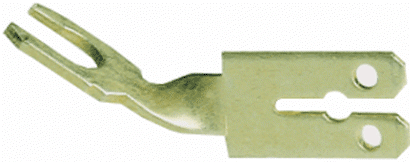

BT483	DILR40 DILR40-G DILR31 DILR31-G DILR22 DILR22-G DILR22D DILR22D-G DILR44D DILR44D-G DILR53D DILR53D-G DILER-40 DILER-40-G DILER-31 DILER-31-G DILER-22 DILER-22-G	Connection Tabs	Use connectors with insulated sleeves. Comes in standard quantity of 100
