Space Savings Series Auxiliary Contacts & Accessories

Auxiliary Contacts - Possible Combinations

Frame
Size		 Part
Number		 Contactor Built-In
Auxiliary		 Front
(Top) Mount
Two-Pole		 Four Pole Side-Mount
Single-Pole		 Two-Pole Total
Auxiliary
Contacts
Available
0,1C CN13BN0_ CN13CN0_ 1NO or 1NC 1 ~ ~ ~ 3
~ 1 ~ ~ 5
~ ~ ~ 1 3
~ ~
1, 2 CN13DN0_ CN13GN0_ ~ 1 ~ ~ 2 6
~ 1 ~ 1 6
~ ~
3, 4 CN13KN0_ CN13MN0_ ~ 1 ~ ~ 2 6
~ 1 ~ 2 8
~ ~ ~ 4 8

5 CN13SN0 2NO-2NC ~ ~ ~ 2 8
~ ~ ~ ~

NEMA Size 0, 1C— Front (Top) Mount—Two-Pole

XTCEXF_


 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
16 2NO 5 XTCEXFAC20
16 1NO-1NC 5 XTCEXFAC11 (2)
16 2NC 5 XTCEXFAC02

NEMA Size 0, 1C— Front (Top) Mount—Four-Pole

XTCEXF_


 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
16 4NO 5 XTCEXFAC40 (2)
16 3NO-1NC 5 XTCEXFAC31 (2)
16 2NO-2NC 5 XTCEXFAC22 (2)
16 1NO-3NC 5 XTCEXFAC13
16 4NC 5 XTCEXFAC04

NEMA Size 0, 1C—Side-Mount—Two-Pole

XTCEXSCC11

 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
10 1NO-1NC 5 XTCEXSCC11 (2)

Notes:

No auxiliary contacts can be fitted between two contactors.
(1) Orders must be placed in multiples of package quantity listed.
(2) To avoid duplicate terminal numbers in contact sequence, these auxiliary contacts should only be used with contactors having a built-in 1NO contact (XTCE…B10_, XTCE…C10_).
(3) Can be mounted to the left side of contactor only. Cannot be used in combination with front (top) mount auxiliary contacts or mechanical interlocks.

NEMA Sizes 1–4—Two-Pole

XTCEXF_


 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
16 2NO 5 XTCEXFBG20
16 1NO-1NC 5 XTCEXFBG11
16 2NC 5 XTCEXFBG02

NEMA Sizes 1–4—Four-Pole

XTCEXF_


 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
16 4NO-0NC 5 XTCEXFBG40
16 3NO-1NC 5 XTCEXFBG31
16 2NO-2NC 5 XTCEXFBG22
16 2NO-2NC 5 XTCEXFAG22
16 1NO-3NC 5 XTCEXFBG13

NEMA Sizes 1–4, Side Mount (Snap-On)—Two-Pole

XTCEXS_

 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
10 1NO-1NC 5 XTCEXSBN11

NEMA Size 5, Side Mount (Screw Mount)—Two-Pole

XTCEXS_

 Conventional Thermal Current,
Open at 60° C
Ith = Ie, AC-1 in Amps		 Contact Configuration Circuit Symbol Pkg. Qty.(1) Screw Terminal
Part Number
10 1NO-1NC 5 XTCEXSBR11 (2)

Notes:

No auxiliary contacts can be fitted between two contactors.
(1) Orders must be placed in multiples of package quantity listed.
(2) For replacement only. XTCEXSBR11 and XTCEXSBLR11 cannot be added onto side mount auxiliaries that come with the Size 5 contactors as standard. To add auxiliaries onto the included side auxiliaries on Size 5 contactors, use XTCEXSCR11.

Eaton Space Savings Series Suppressors & Accessories

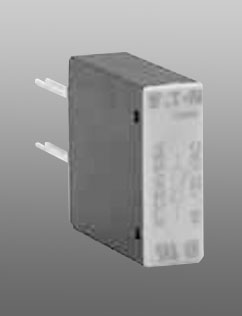

Suppressors

The switching of contactor coils can generate voltage transients that may cause arching on switch contacts and/or damage electronics on the control line. Either an RC or varistor suppressor is recommended in these types of applications. All Space- Savings DC contactor coils have built-in suppression. Varistor suppressors clamp the voltage transient above the maximum coil voltage and are recommended when the level of the transient is known to not exceed the coil voltage. RC suppressors slow and reduce the level of the voltage transient but do not clamp them at a specific level. The slowing of the transient can reduce electrical interference. These are recommended in applications where operating rates are high.

Varistor Suppressor (1)(2)

Voltage For Use With Copntact Sequence Pkg. Qty. (3) Part Number
48-130 CN13BN0_
CN13CN0_		 10 XTCEXVSCA
48-130 CN13DN0_
CN13GN0_		 10 XTCEXVSFA

RC Suppressor (1)(2)

Voltage For Use With Contact Sequence Pkg. Qty. (3) Part Number
24-48 CN13DN0_
CN13GN0_		 ~ XTCEXRSFW
110-130 ~ XTCEXRSFA

Mechanical Interlock (5)

For Use with… Pkg. Qty. (3) Part Number
CN13BN0_,
CN13CN0_		 1 XTCEXMLC
CN13DN0_,
CN13GN0_		 1 XTCEXMLD
CN13KN0_,
CN13MN0_		 1 XTCEXMLG (6)
CN13SN0_ 1 XTCEXMLM

Reversing Link Kits

For Use With Pkg. Qty. (3) Part Number
CN13BN0_,
CN13CN0_		 1 XTCEXRLC
CN13DN0_,
CN13GN0_		 1 XTCEXRLD
CN13KN0_,
CN13MN0_		 1 XTCEXRLG

Main current wiring for reversing combinations. Includes paralleling bridge and reversing bridge. Does not include mechanical interlock, see table on this page.

Terminal Lug Assembly

For Use With Pkg. Qty. (3) Part Number
CN13SN0_ 1 XTCEXTLA400

For connection of: round conductor, flexible and stranded, flat strip conductor, with control circuit terminal.

Terminal Shroud

For Use With Pkg. Qty. (3) Part Number
CN13SN0_ 1 XTCEXTS400

Protection against direct contact with connection lugs when touched vertically from the front

Notes:

(1) Note dropout delay.
(2) For AC operated contactors, 50–60 Hz. Sizes 0–5 DC operated contactors and Size 5 AC operated contactors have a built-in suppressor circuit.
(3) Orders must be placed in multiples of package quantity listed.
(4) In addition to the built-in suppressor circuit for DC actuated contactors. Prevents negative breaking voltage when contactors are used in combination with a safety PLC.
(5) For two contactors with AC or DC operated magnet system which are horizontally or vertically mounted. For Sizes 0–4, mechanical lifespan is 2.5 x 106 operations and the distance between contactors is 0 mm. For Size 5, mechanical lifespan is 5 x 106 operations and no auxiliary contact can be mounted between the mechanical interlock and the contactor—the distance between contactors is 15 mm.
(6) XTCEXMLG and XTCEXMLN consist of an interlock element and mounting plate.
