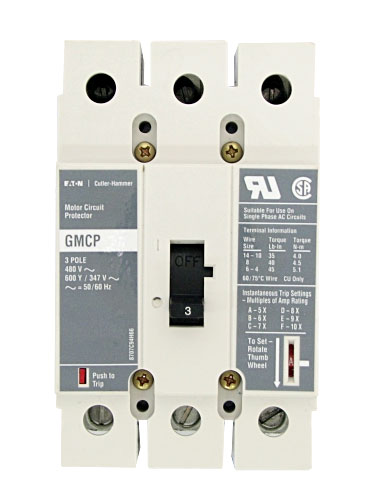

GMCP063M2C Motor Circuit Protection (MCP)

F-Frame — 600 Vac Maximum, 250 Vdc Maximum
NEMA Starter Size	Continuous Amps	Cam Setting	Motor Full Load Current Amperes (FLA)(1)	MCP Trip Setting(2)
3	63	A	24.2–32.1	320
		B	29.1–34.8	380
		D	38.8–46.4	500
		E	43.6–48.9	570
		F	48.5–53.7	630

NOTES:
(1) Motor FLA ranges are typical. The corresponding trip setting is at 13 x the minimum FLA value shown. Where a 13 x setting is required for an intermediate FLA value, alternate Cam settings and/or MCP ratings should be used.

All GMCP 3–63A come with line and load steel body terminals for Cu only wire.

UL recognized and CSA approved
