XTCE032C10 Contactor
Eaton Moeller NZM1 Circuit Breakers
| Ie [A] | HP | Auxiliary Contacts | |||
| AC-3 | AC-1 | @ 230 | @ 460 | Normally Open | Normally Closed |
| 32 | 40 | 10 | 20 | 1 | 0 |
Eaton XTCE032C10 Ordering Information
| Part Name | Rated Operational Current le A AC - 3 |
Max. rating for three phase motors, 50 60 Hz |
|||
| UL / CSA Hp | Aux Contacts | ||||
| 230 V | 460 V | NO | NC | ||
| XTCE032C10F (230V50HZ.240V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10TD (RDC24) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10U (24V50HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10H5 (240V50HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10W (42V50HZ.48V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10A (110V50HZ.120V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10G (190V50HZ.220V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10B (220V50HZ.240V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10Y (48V50HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10B6 (24V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10CX (115V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10E (208V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10D (600V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10L (380V50HZ,440V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10I3 (400V50HZ,440V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10C (415V50HZ,480V60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10T (24V50/60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10AB (42V50/60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10AO (220V50/60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10G2 (230V50/60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10AR (380V50/60HZ) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10WD (RDC60) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10AD (RDC130) |
32 | 10 | 20 | 1 | 0 |
| XTCE032C10BD (RDC240) |
32 | 10 | 20 | 1 | 0 |
Eaton XTCE032C10 Circuit Diagram

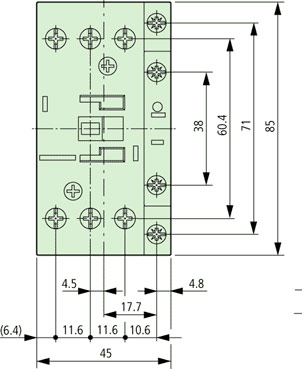

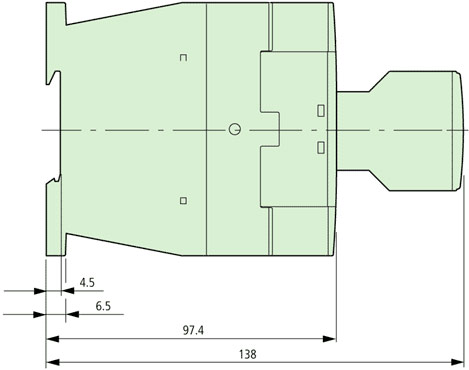

Eaton XTCE032C10 Dimensions
